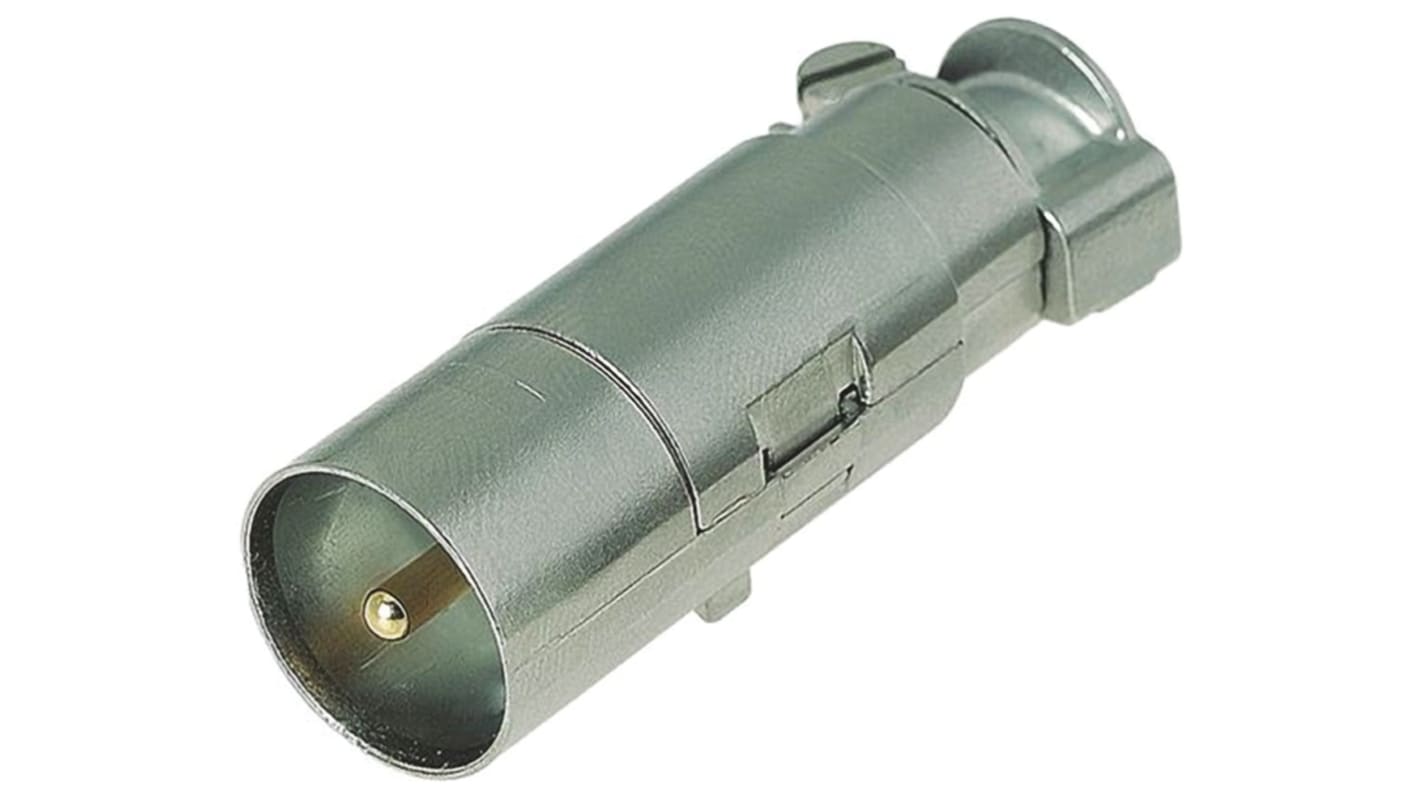

HARTING HAN E Male 16A Coaxial Contact Minimum Wire Size 0.14mm² Maximum Wire Size 4mm² for use with Coax Module
- RS Stock No.:
- 842-7642
- Mfr. Part No.:
- 09150013023
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£28.77
(exc. VAT)
£34.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 34 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £28.77 |
| 10 - 24 | £27.89 |
| 25 + | £27.10 |
*price indicative
- RS Stock No.:
- 842-7642
- Mfr. Part No.:
- 09150013023
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | HAN E | |
| Accessory Type | Coaxial Contact | |
| For Use With | Coax Module | |
| Voltage Rating | 50 V | |
| Current Rating | 16A | |
| Minimum Wire Size mm² | 0.14mm² | |
| Maximum Wire Size mm² | 4mm² | |
| Gender | Male | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Series HAN E | ||
Accessory Type Coaxial Contact | ||
For Use With Coax Module | ||
Voltage Rating 50 V | ||
Current Rating 16A | ||
Minimum Wire Size mm² 0.14mm² | ||
Maximum Wire Size mm² 4mm² | ||
Gender Male | ||
- COO (Country of Origin):
- DE
Han E Module
Note
Han EE modules use same contacts as Han E
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
