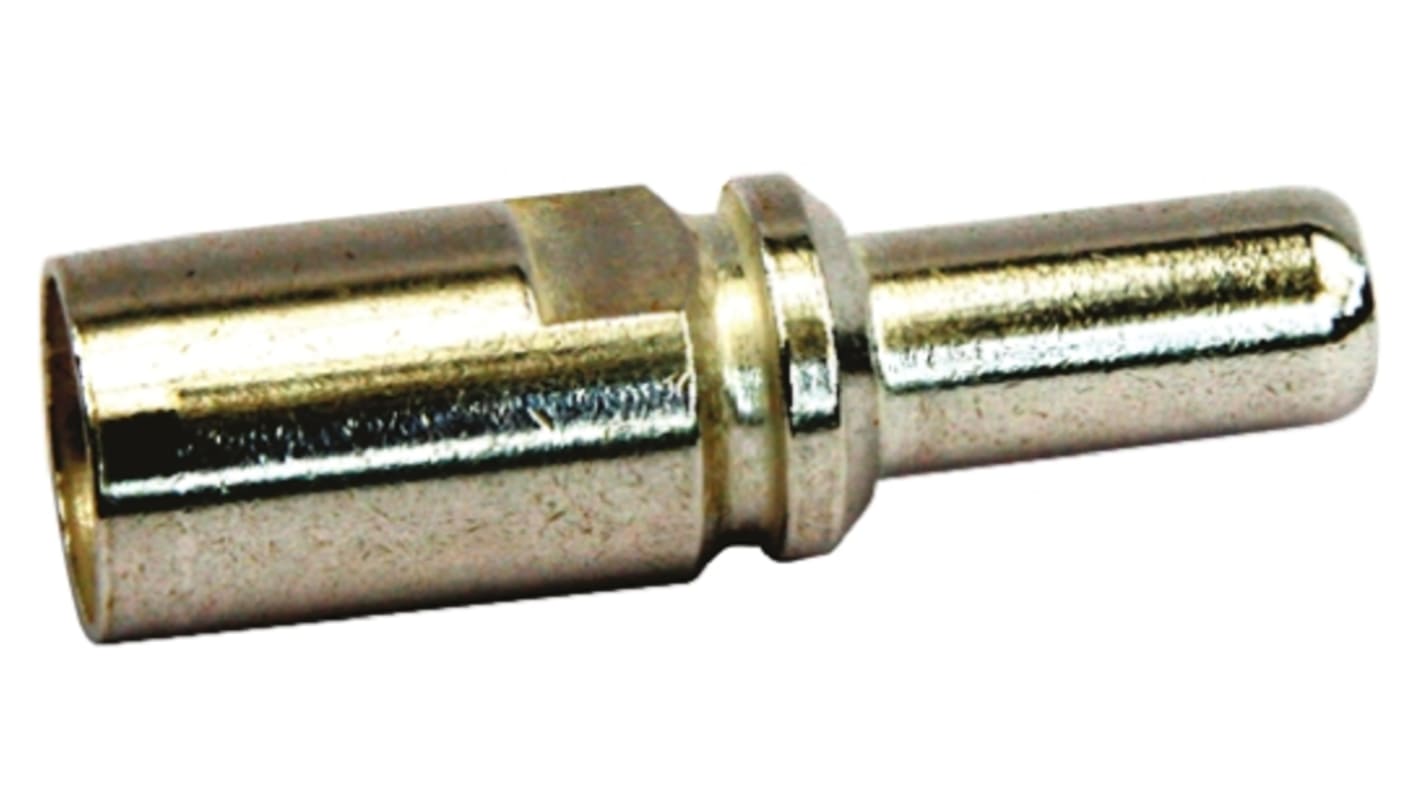

HARTING Han Contacts Male 100A Axial Screw Contact Minimum Wire Size 10mm² Maximum Wire Size 25mm² for use with Han GND
- RS Stock No.:
- 173-7560
- Mfr. Part No.:
- 09110006112
- Brand:
- HARTING
Subtotal (1 pack of 10 units)*
£100.58
(exc. VAT)
£120.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 50 unit(s) shipping from 29 October 2025
- Plus 50 unit(s) shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £10.058 | £100.58 |
*price indicative
- RS Stock No.:
- 173-7560
- Mfr. Part No.:
- 09110006112
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | Han Contacts | |
| Accessory Type | Axial Screw Contact | |
| For Use With | Han GND Series | |
| Range | Han HC Male | |
| Current Rating | 100A | |
| Minimum Wire Size mm² | 10mm² | |
| Maximum Wire Size mm² | 25mm² | |
| Gender | Male | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Series Han Contacts | ||
Accessory Type Axial Screw Contact | ||
For Use With Han GND Series | ||
Range Han HC Male | ||
Current Rating 100A | ||
Minimum Wire Size mm² 10mm² | ||
Maximum Wire Size mm² 25mm² | ||
Gender Male | ||
- COO (Country of Origin):
- DE
Han GND Screw Contacts
Can be connected without a special tool, a screwdriver can be used to make a quick and easy reliable connection
Han GND Range
The Harting Han GND range enables a pluggable grounding system, it is the solution for potential equalisation. It is now possible to execute grounding systems in a pluggable design for the first time. The advantage of this system is to enable quick and error free commissioning. Potential equalisation lines are still being permanently connected, which is relatively time consuming and can be subject to errors. The single pole connector in the durable IP65 plastic housing is designed for stranded wires from 10-35mm² and is optionally available in crimp or axial screw termination. The screw termination has the advantage of the lines being connected without a special tool.
