HARTING Han D Female Crimp Contact, 10A Minimum Wire Size 1 mm² Maximum Wire Size 1 mm² for use with Heavy Duty Power
- RS Stock No.:
- 173-7419
- Mfr. Part No.:
- 09150006222
- Brand:
- HARTING
Subtotal (1 pack of 100 units)*
£218.50
(exc. VAT)
£262.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 900 unit(s) ready to ship
- Plus 1,000 unit(s) shipping from 20 August 2026
- Plus 200 unit(s) shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £2.185 | £218.50 |
*price indicative
- RS Stock No.:
- 173-7419
- Mfr. Part No.:
- 09150006222
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | Heavy Duty Power Connector Contact | |
| Series | Han D | |
| Current | 10A | |
| Accessory Type | Crimp Contact | |
| Contact Plating | Silver | |
| For Use With | Heavy Duty Power Connector | |
| Termination Type | Crimp | |
| Voltage | 250V | |
| Standards/Approvals | DIN EN 60 512-5-2 | |
| Minimum Wire Size mm² | 1mm² | |
| Maximum Wire Size mm² | 1mm² | |
| Gender | Female | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type Heavy Duty Power Connector Contact | ||
Series Han D | ||
Current 10A | ||
Accessory Type Crimp Contact | ||
Contact Plating Silver | ||
For Use With Heavy Duty Power Connector | ||
Termination Type Crimp | ||
Voltage 250V | ||
Standards/Approvals DIN EN 60 512-5-2 | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size mm² 1mm² | ||
Gender Female | ||
- COO (Country of Origin):
- DE

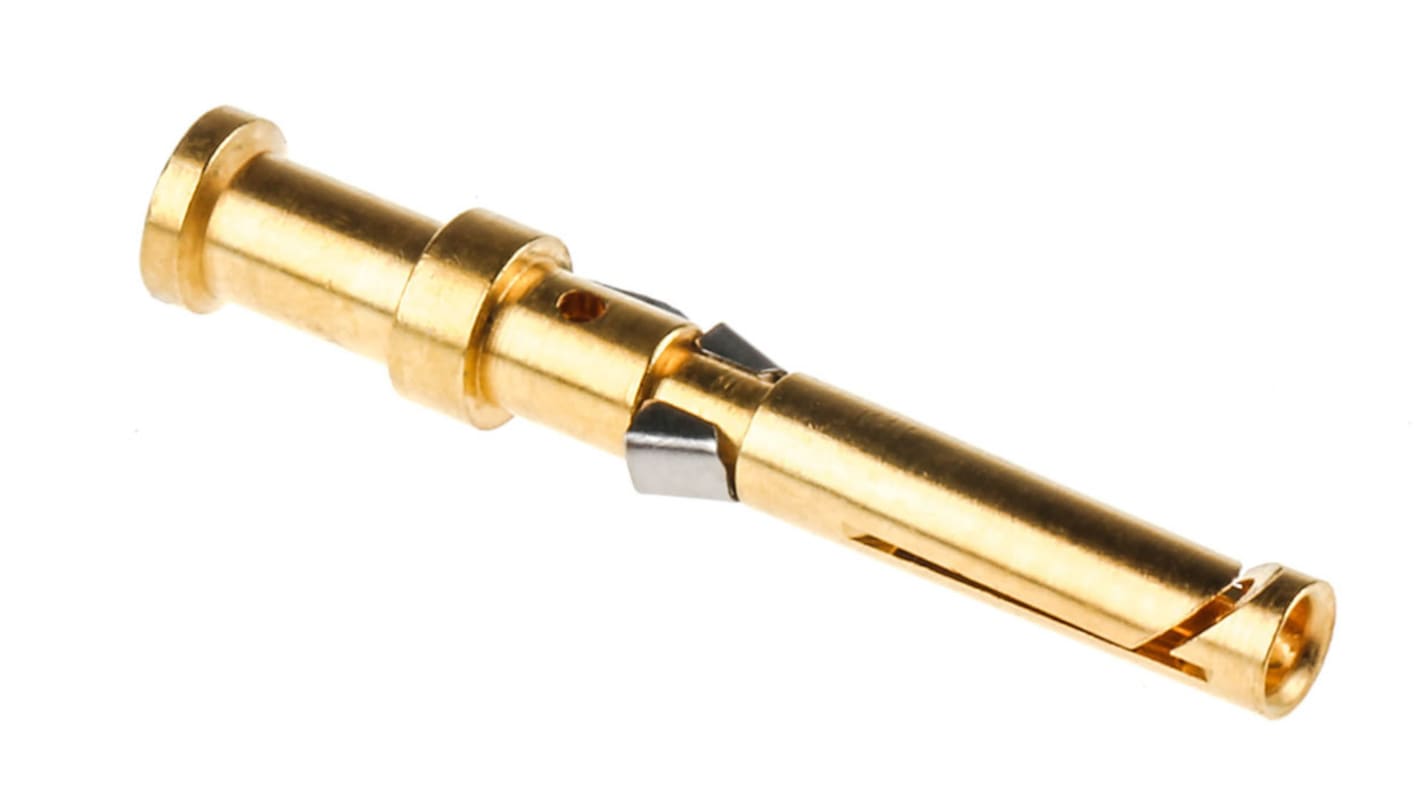

Han-Com®, Han D®, Han DD® and Han® E Crimp Contacts
A range of high quality turned crimp contacts for Han-Com®, Han D®, Han DD® and Han® E inserts. The appropriate parallel action crimp to tool is also available for optimum crimp quality, as is the appropriate service crimp tool.
Features & Benefits
• The parallel action crimp tool offers optimal crimp quality and features a rotating locator. See stock number 114-7706.
• For service and small assembly, the service crimp tool is offered complete with locator. See stock number 313-6607.
Product Application Information
The Han-Com combination connectors are industrial connectors designed for providing power and signal contacts in one insulation body. The Han-Q Series are connector inserts with a compact design, while the Han D/DD/DDD series are connectors built for high pin count interconnect applications.
Han-Com® Signal & Power (Crimp and Screw)
These Han- Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings; RS stock Nos. 181-0561, 181-0741, 181-0785, 363-8535, 363-8585 and their associated ranges. These hood and housing ranges are associated to a specific Harting 'Size' number identifier
Note
Han-Com® inserts have mixed power and signal formats. A typical identifier is ’4//2’ which means there are 4 power contacts and 2 signal contacts. The current rating is different for each type of contact within a particular insert.
Approvals
UL, CSA, SEV
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
