HARTING Han D Female Crimp Contact, 10A Minimum Wire Size 1.5 mm² Maximum Wire Size 1.5 mm² for use with Heavy Duty
- RS Stock No.:
- 114-7986
- Distrelec Article No.:
- 304-36-947
- Mfr. Part No.:
- 09150006201
- Brand:
- HARTING
Subtotal (1 pack of 50 units)*
£47.05
(exc. VAT)
£56.45
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7,500 unit(s) ready to ship
- Plus 1,250 unit(s) ready to ship from another location
- Plus 450 unit(s) shipping from 28 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.941 | £47.05 |
*price indicative
- RS Stock No.:
- 114-7986
- Distrelec Article No.:
- 304-36-947
- Mfr. Part No.:
- 09150006201
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | Heavy Duty Power Connector Contact | |
| Series | Han D | |
| Current | 10A | |
| Accessory Type | Crimp Contact | |
| Contact Plating | Silver | |
| For Use With | Heavy Duty Power Connector | |
| Contact Material | Copper Alloy | |
| Voltage | 250V | |
| Termination Type | Crimp | |
| Minimum Wire Size mm² | 1.5mm² | |
| Standards/Approvals | No | |
| Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type Heavy Duty Power Connector Contact | ||
Series Han D | ||
Current 10A | ||
Accessory Type Crimp Contact | ||
Contact Plating Silver | ||
For Use With Heavy Duty Power Connector | ||
Contact Material Copper Alloy | ||
Voltage 250V | ||
Termination Type Crimp | ||
Minimum Wire Size mm² 1.5mm² | ||
Standards/Approvals No | ||
Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
- COO (Country of Origin):
- DE

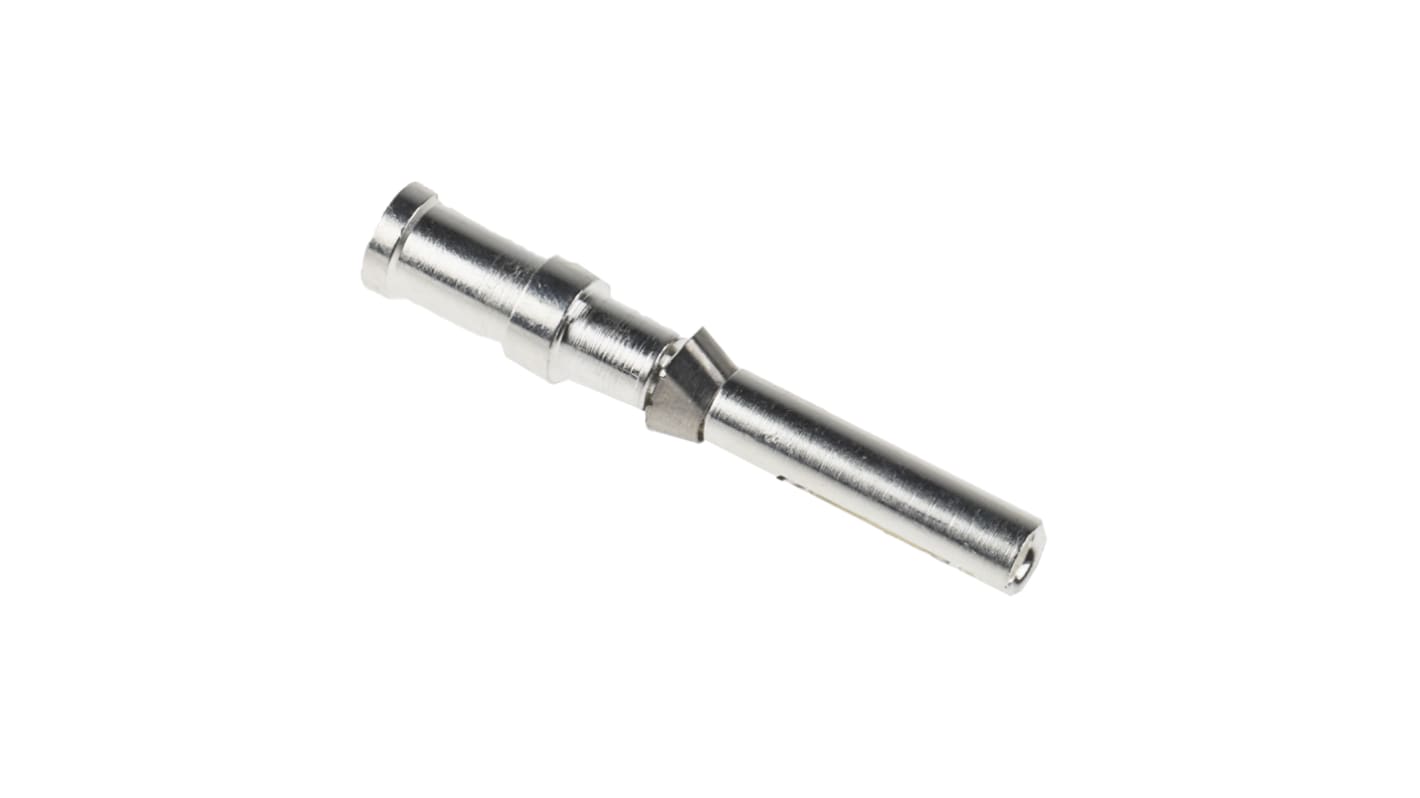

Harting Han D Series Heavy Duty Power Connector Contact, 10A Current, 250V Voltage - 09150006201
This heavy-duty power connector contact is a female crimp contact intended for use in rugged industrial connectors. Designed for insertion into compatible heavy-duty housings, it provides a reliable conductive Interface for power distribution in automation and electrical systems while operating at rated voltages typical for industrial connectors.
Features & Benefits
• Rated for 10 A to support moderate current power circuits
• Works at 250V for standard industrial voltage applications
• Silver-plated copper alloy to reduce contact resistance
• Crimp termination enabling secure conductor attachment
• Suitable for 1.5 mm² conductors for AWG16 wiring systems
• Works at 250V for standard industrial voltage applications
• Silver-plated copper alloy to reduce contact resistance
• Crimp termination enabling secure conductor attachment
• Suitable for 1.5 mm² conductors for AWG16 wiring systems
**Applications**
• Suitable for heavy-duty connector assemblies in factory automation
• Ideal for electrical cabinets requiring removable power contacts
• Used with machinery connections where frequent mating is expected
• Can be used for industrial power distribution in control panels
• Ideal for electrical cabinets requiring removable power contacts
• Used with machinery connections where frequent mating is expected
• Can be used for industrial power distribution in control panels
What conductor size does the contact accept and how is it prepared?
It accepts a 1.5 mm² conductor and requires an 8mm insulation strip before crimp termination to achieve proper contact engagement.
How does the contact resist wear across repeated insertions?
The turned-contact design and silver plating support a minimum of 500 mating cycles while maintaining low contact resistance.
What are the electrical loss characteristics I can expect?
Contact resistance is specified at ≤3 mΩ, contributing to reduced voltage drop in power runs.
Are there any material restrictions relevant to recyclability or hazardous substances?
The contact is a copper alloy containing lead within a specified exemption and is listed for certain regulated substance notifications.
Note
Han-Com® inserts have mixed power and signal formats. A typical identifier is ’4//2’ which means there are 4 power contacts and 2 signal contacts. The current rating is different for each type of contact within a particular insert.
Approvals
UL, CSA, SEV
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
