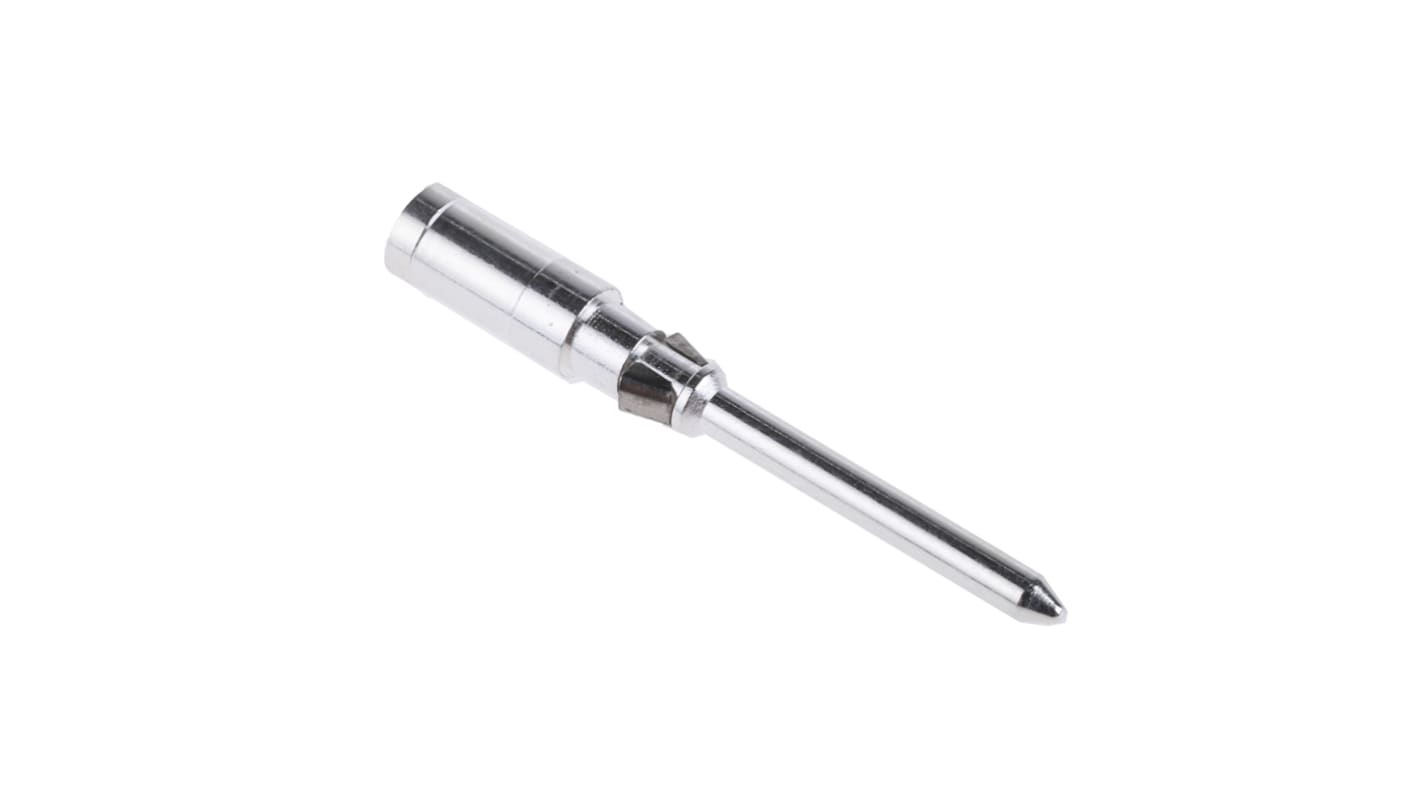

HARTING Han Contacts Male Crimp Contact, 10A Minimum Wire Size 1.5 Maximum Wire Size 1.5 mm² for use with Heavy Duty
- RS Stock No.:
- 114-7970
- Distrelec Article No.:
- 304-36-945
- Mfr. Part No.:
- 09150006101
- Brand:
- HARTING
Subtotal (1 pack of 50 units)*
£46.15
(exc. VAT)
£55.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,750 unit(s) ready to ship
- Plus 1,750 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.923 | £46.15 |
*price indicative
- RS Stock No.:
- 114-7970
- Distrelec Article No.:
- 304-36-945
- Mfr. Part No.:
- 09150006101
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Product Type | Heavy Duty Power Connector Contact | |
| Series | Han Contacts | |
| Accessory Type | Crimp Contact | |
| Current | 10A | |
| Contact Plating | Silver | |
| For Use With | Heavy Duty Power Connector | |
| Contact Material | Copper Alloy | |
| Termination Type | Crimp | |
| Voltage | 250V | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 1.5 | |
| Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Product Type Heavy Duty Power Connector Contact | ||
Series Han Contacts | ||
Accessory Type Crimp Contact | ||
Current 10A | ||
Contact Plating Silver | ||
For Use With Heavy Duty Power Connector | ||
Contact Material Copper Alloy | ||
Termination Type Crimp | ||
Voltage 250V | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 1.5 | ||
Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
- COO (Country of Origin):
- DE
HARTING Han D Series Heavy Duty Power Connector Contact, 10A Current Rating , Male Gender - 09150006101
This heavy duty power connector contact is designed for use with a range of HARTING connectors. It is crafted from Durable copper alloy and featuring silver plating, this male power contact ensures efficient electrical connections in demanding environments. This crimp contact is particularly suitable for applications requiring robust connectivity, supporting a maximum wire size of 1.5mm² and a current rating of 10 A. It is compatible with the Han CD, Han Com, Han D, Han DD, Han DDD, and Han Q ranges.
Features & Benefits
• Durable copper alloy contacts enhance conductivity and longevity
• Silver plating provides superior corrosion resistance
• Designed for crimp termination, ensuring secure connections
• Compatible with various ranges, offering versatile usage
• Rated for 10 A, suitable for heavy electrical loads
• Male contact configuration optimises connection performance
• Silver plating provides superior corrosion resistance
• Designed for crimp termination, ensuring secure connections
• Compatible with various ranges, offering versatile usage
• Rated for 10 A, suitable for heavy electrical loads
• Male contact configuration optimises connection performance
Applications
• Used for heavy duty electrical connections in automation systems
• Ideal for electrical and mechanical industry
• Utilised in machinery requiring reliable power transmission
• Suitable for assembly in harsh industrial environments
• Ideal for electrical and mechanical industry
• Utilised in machinery requiring reliable power transmission
• Suitable for assembly in harsh industrial environments
What are the advantages of using this contact with heavy duty power connectors?
Utilising this contact ensures enhanced electrical conductivity and durability, making it Ideal for heavy loads and challenging environmental conditions. The silver plating adds an extra layer of corrosion resistance, ensuring long-term reliability.
How does crimp termination improve connection reliability?
Crimp termination creates a secure mechanical bond between the wire and contact, reducing the risk of loosening due to vibration or movement. This method is particularly beneficial in applications where connection stability is crucial.
What is the significance of the 10 A current rating?
The 10 A rating indicates the maximum current this contact can handle safely, making it suitable for various heavy duty electrical applications without the risk of overheating or failure.
Which connector series are compatible with this product?
This contact is designed to work seamlessly with HARTING's Han CD, Han Com, Han D, Han DD, Han DDD, and Han Q series connectors, fostering versatility in application choices.
What materials are used in the construction of this connector?
Constructed from copper alloy with silver plating, this contact delivers excellent conductivity and resistance to corrosion, ensuring optimal performance in diverse conditions.
Note
Han-Com® inserts have mixed power and signal formats. A typical identifier is ’4//2’ which means there are 4 power contacts and 2 signal contacts. The current rating is different for each type of contact within a particular insert.
Approvals
UL, CSA, SEV
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
