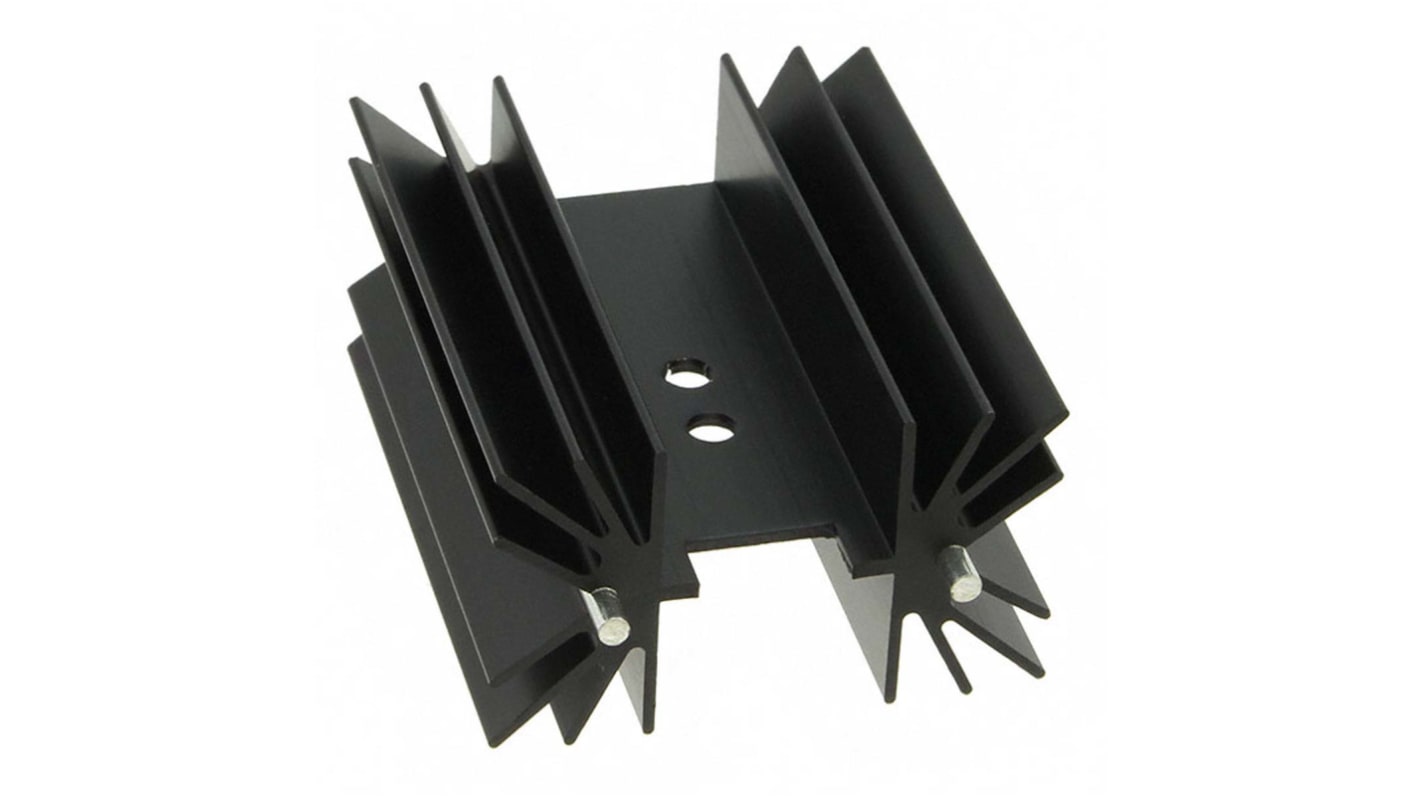

Heatsink, TBH25, TCH35, TEH100, TEH70, 3.4°C/W, 41.6 x 25 x 50.8mm, Vertical

  • RS Stock No. 893-4948
  • Mfr. Part No. FA-T220-51E
  • Brand Ohmite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Ohmite F/R Series Vertical Mount Heatsinks

Ohmite F/R Series heatsink provides a large surface area with spring clipping mechanism to attach to a TO-220, TO-247, or TO-264 package. The self-aligning features of the clip assure secure attachment and enhanced thermal performance. Because no screws are required for device mounting, additional fins can be added to the rear side of the heatsink for increased total surface area in a more compact space.

Specifications
Attribute Value
For Use With TBH25, TCH35, TEH100, TEH70
Length 41.6mm
Width 25mm
Height 50.8mm
Dimensions 41.6 x 25 x 50.8mm
Thermal Resistance 3.4°C/W
Mounting Vertical
Colour Black
Series F
Package Type TO-218, TO-220, TO-247
Special Features With Solderable Pin
Surface Area 18222mm²
Finish Black Anodized
Material Aluminium
Available to back order for despatch 30/12/2019
Price Each (In a Pack of 10)
£ 1.27
(exc. VAT)
£ 1.52
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.27
£12.70
*price indicative
