Heatsink, TBH25 Ohmite Resistor Series, TCH35 Ohmite Resistor Series, TEH100 Ohmite Resistor Series, TEH70 Ohmite

  • RS Stock No. 893-4945
  • Mfr. Part No. FA-T220-38E
  • Brand Ohmite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

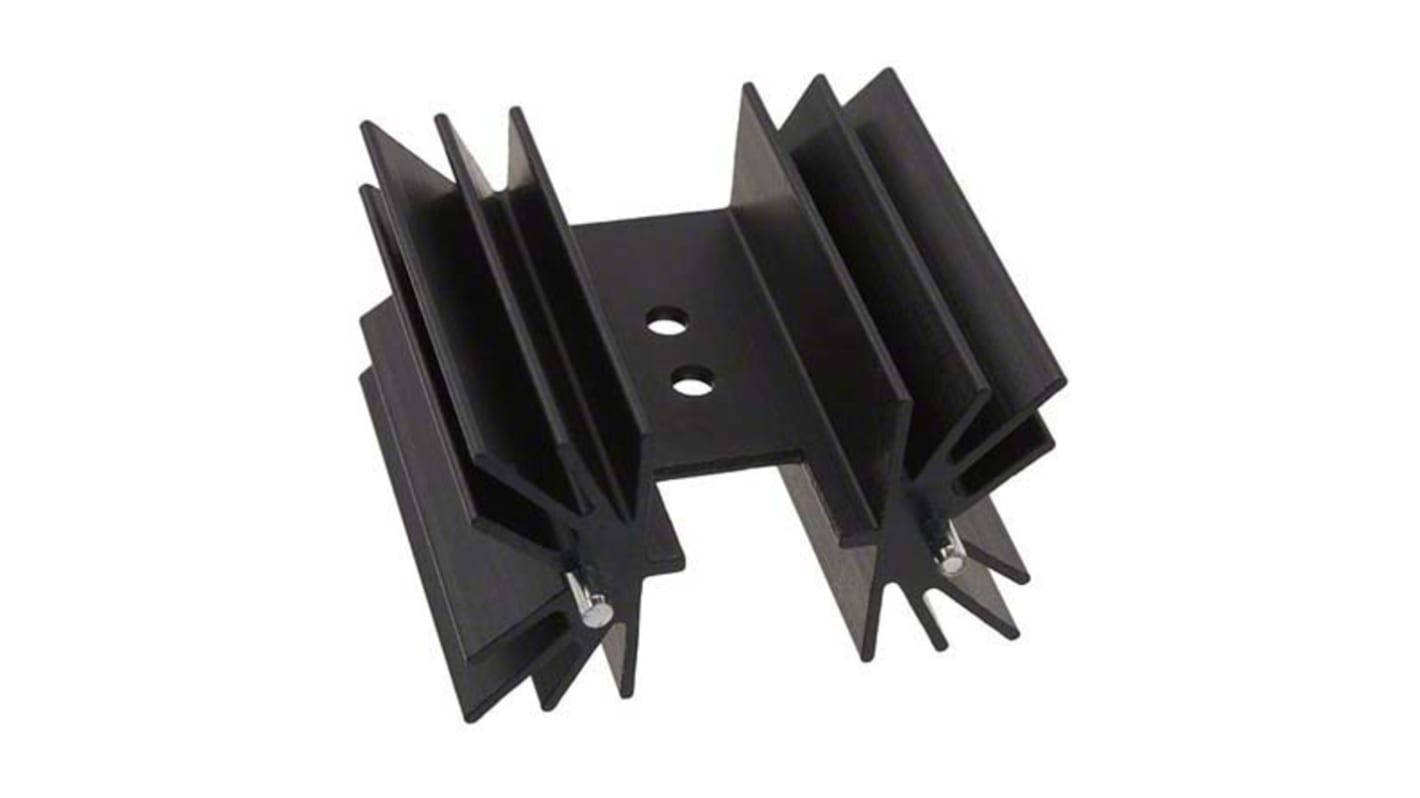

Ohmite F/R Series Vertical Mount Heatsinks

Ohmite F/R Series heatsink provides a large surface area with spring clipping mechanism to attach to a TO-220, TO-247, or TO-264 package. The self-aligning features of the clip assure secure attachment and enhanced thermal performance. Because no screws are required for device mounting, additional fins can be added to the rear side of the heatsink for increased total surface area in a more compact space.

Specifications
Attribute Value
For Use With TBH25 Ohmite Resistor Series, TCH35 Ohmite Resistor Series, TEH100 Ohmite Resistor Series, TEH70 Ohmite Resistor Series, TO-218, TO-220, TO-247
Length 41.6mm
Width 25mm
Height 38.1mm
Dimensions 41.6 x 25 x 38.1mm
Thermal Resistance 3.8°C/W
Mounting Vertical
Colour Black
Series F
Finish Black Anodized
Special Features With Solderable Pin
Material Aluminium
Surface Area 13756mm²
Available to back order for despatch 08/11/2019
Price Each (In a Pack of 10)
Was £1.38
£ 1.069
(exc. VAT)
£ 1.283
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£1.069
£10.69
*price indicative
