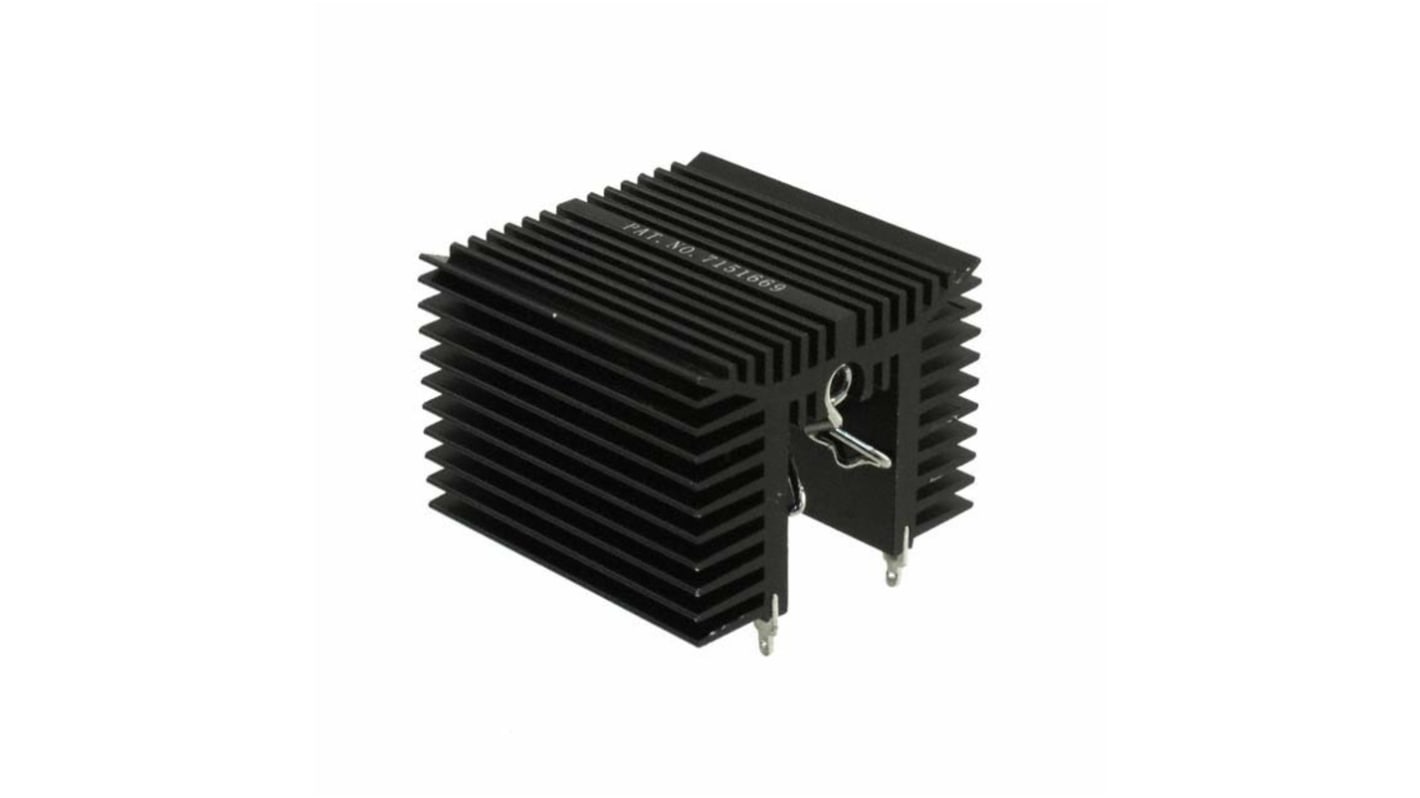

Heatsink, TO-247, TO-264, 3°C/W, 55 x 55.9 x 43.5mm, Clip

  • RS Stock No. 893-4419
  • Mfr. Part No. MA-302-55E
  • Brand Ohmite
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Ohmite M Series Clip Heatsinks

Ohmite M series high performance, configurable and compact heat sink with matrix clip system for TO-247 and TO-264 packages. This powerful heat sink provides easy assembly, large surface area and small footprint. It is the ideal type of heat sink for high power density and small size electronic packaging with forced convection cooling.

Specifications
Attribute Value
For Use With TO-247, TO-264
Length 55mm
Width 55.9mm
Height 43.5mm
Dimensions 55 x 55.9 x 43.5mm
Thermal Resistance 3°C/W
Mounting Clip
Colour Black
Finish Black Anodized
Material Aluminium
Special Features Flexible Design, Maximum Reliability Resilient Spring Action Locks Electronic Component in Place, Maximum Repeatability Constant Spring Force, Maximum Thermal Transfer
Series M
Surface Area 49218mm²
Available to back order for despatch 10/09/2019
Price Each
Was £8.35
£ 6.71
(exc. VAT)
£ 8.05
(inc. VAT)
Units
Per unit
1 +
£6.71
