- RS Stock No.:
- 227-5374
- Mfr. Part No.:
- E2A-T220-25E
- Brand:
- Arcol Ohmite
43 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price Each
£1.65
(exc. VAT)
£1.98
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £1.65 |
| 10 + | £1.53 |
- RS Stock No.:
- 227-5374
- Mfr. Part No.:
- E2A-T220-25E
- Brand:
- Arcol Ohmite
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

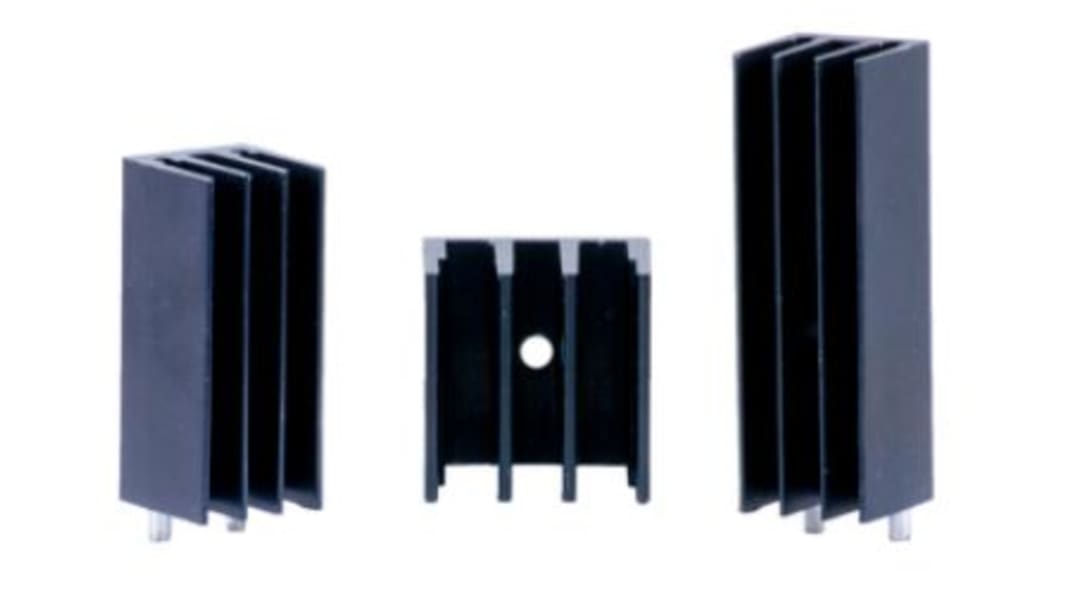

The Arcol Ohmite Heatsink E3A-T220-25E has a 8-32 threaded mounting hole for a bridge rectifier in a D34 type square package. The thickened side fins can be used to secure the heat sink to a side wall or to mount TO-220"s.
Vertical through-hole PCB mounting
Threaded mounting holes
Threaded mounting holes
Specifications
Attribute | Value |
|---|---|
| For Use With | TO-220 and TO-247 Devices and Bridge Rectifiers |
| Length | 16.28mm |
| Width | 16.3mm |
| Height | 25.4mm |
| Dimensions | 16.28 x 16.3 x 25.4mm |
| Mounting | PCB Through Hole |
