Heatsink, BGA, CPU and GPU, 17 x 17 x 7.5mm, PCB Mount

RS Stock No.:: 227-5342
Mfr. Part No.:: BGAH170-075E
Brand:: Arcol Ohmite

Available to back order for despatch 27/09/2023

Added

Price Each (In a Box of 10)

£4.949

(exc. VAT)

£5.939

(inc. VAT)

Units	Per unit	Per Box*
10 - 40	£4.949	£49.49
50 +	£4.64	£46.40
*price indicative

RS Stock No.:: 227-5342
Mfr. Part No.:: BGAH170-075E
Brand:: Arcol Ohmite

COO (Country of Origin):: CN

Technical Reference

Datasheet - BGAH170-075E

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

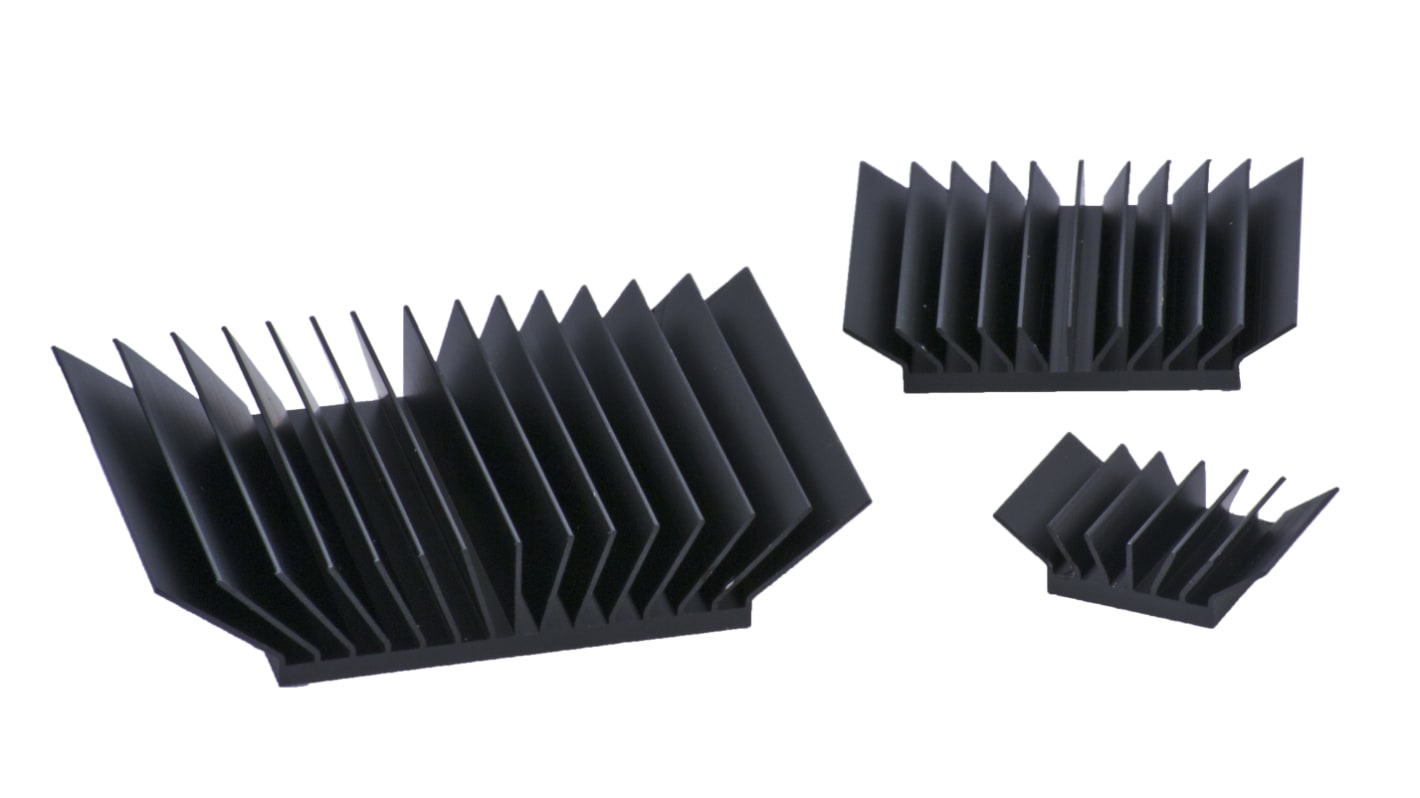

The Arcol Ohmite Heatsink has low cost, BG-series, standard heat sinks for BGAs and PBGAs, etc. devices. This simple heat sink can be attached to devices with adhesive thermal tape (included with the heatsink kit). The heat sink offers black anodized surface finish and can be used in either natural (free) or forced convection cooling applications.

Aluminium alloy 6063-T5 or equivalent with black anodized finish
Attachment method thermal tape standard
Mounting PCB level heat sink, no soldering
Finished parts are compliant with RoHS

Specifications

Attribute	Value
For Use With	BGA, CPU and GPU
Length	17mm
Width	17mm
Height	7.5mm
Dimensions	17 x 17 x 7.5mm
Mounting	PCB Mount
