SPREADFAST Heatsink, Universal Square Ceramic, 100°C/W, 12.2 °C/W 10 mm 12 mm 12 mm
- RS Stock No.:
- 123-5616
- Mfr. Part No.:
- SF-CHS-121210P
- Brand:
- SPREADFAST
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.05
(exc. VAT)
£4.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 610 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.81 | £4.05 |
| 50 - 120 | £0.746 | £3.73 |
| 125 - 245 | £0.712 | £3.56 |
| 250 - 495 | £0.688 | £3.44 |
| 500 + | £0.63 | £3.15 |
*price indicative
- RS Stock No.:
- 123-5616
- Mfr. Part No.:
- SF-CHS-121210P
- Brand:
- SPREADFAST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SPREADFAST | |
| Product Type | Heatsink | |
| For Use With | Universal Square Ceramic | |
| Length | 12mm | |
| Width | 12 mm | |
| Height | 10mm | |
| Thermal Resistance | 100, 12.2°C/W | |
| Fastening | Adhesive, Screw | |
| Series | Pin Fin | |
| Colour | White | |
| Standards/Approvals | RoHS | |
| Material | Aluminium Oxide | |
| Special Features | Good Heat Spreader, Good Thermal Cycling Stability, Lower density, High Breakdown Voltage, Ideal for Direct Metalisation, High Volume Resistivity, Good EMC | |
| Select all | ||
|---|---|---|
Brand SPREADFAST | ||
Product Type Heatsink | ||
For Use With Universal Square Ceramic | ||
Length 12mm | ||
Width 12 mm | ||
Height 10mm | ||
Thermal Resistance 100, 12.2°C/W | ||
Fastening Adhesive, Screw | ||
Series Pin Fin | ||
Colour White | ||
Standards/Approvals RoHS | ||
Material Aluminium Oxide | ||
Special Features Good Heat Spreader, Good Thermal Cycling Stability, Lower density, High Breakdown Voltage, Ideal for Direct Metalisation, High Volume Resistivity, Good EMC | ||
- COO (Country of Origin):
- CN

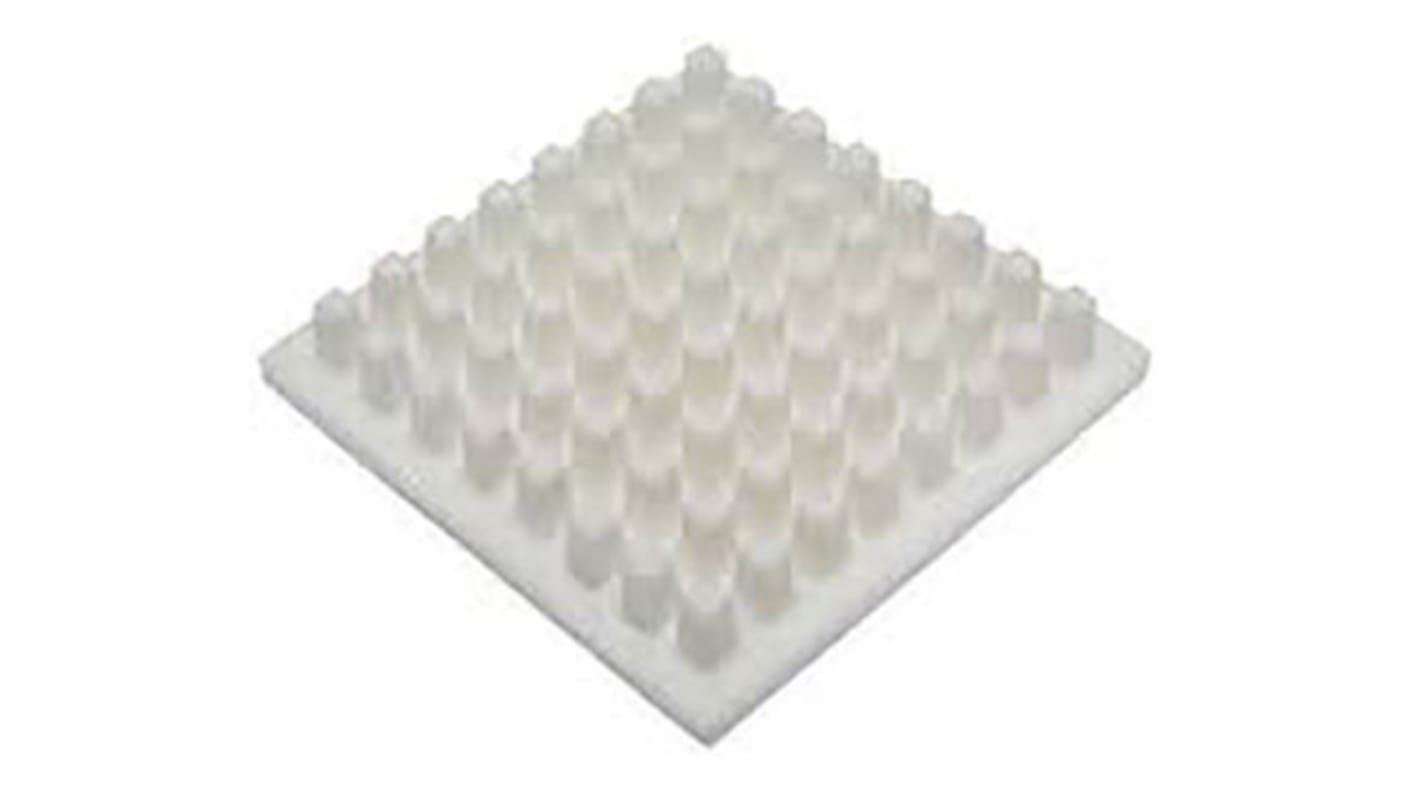

Spreadfast SF-CHS Series Square Pin Ceramic Heatsink
Spreadfast SF-CHS series of square pin ceramic heatsinks have been designed as a lower density improvement over traditional metal heatsinks. The innate characteristics of ceramic heatsinks means the SF-CHS series have a high breakdown voltage and heat dissipation. Thanks to the meticulous design of these ceramic heatsinks, the SF-CHS series are ideally suited to applications where thermal cycling stability are required.
Typical Applications
Traditional heatsink replacement.
LED & chipset cooling.
Power modules.
IC cooling.
Ceramic Heatsinks
