RS PRO Heating Element, 70mm, 250 W, 220 V ac
- RS Stock No.:
- 860-6741
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£16.72
(exc. VAT)
£20.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 457 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
- Plus 160 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.72 |
5 - 9 | £16.22 |
10 + | £15.85 |
*price indicative
- RS Stock No.:
- 860-6741
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Element Type | Cartridge Heater | |
Power Rating | 250 W | |
Supply Voltage | 220 V ac | |
Length | 70mm | |
Diameter | 10 mm | |
Lead Length | 10in | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Element Type Cartridge Heater | ||
Power Rating 250 W | ||
Supply Voltage 220 V ac | ||
Length 70mm | ||
Diameter 10 mm | ||
Lead Length 10in | ||
- COO (Country of Origin):
- IN

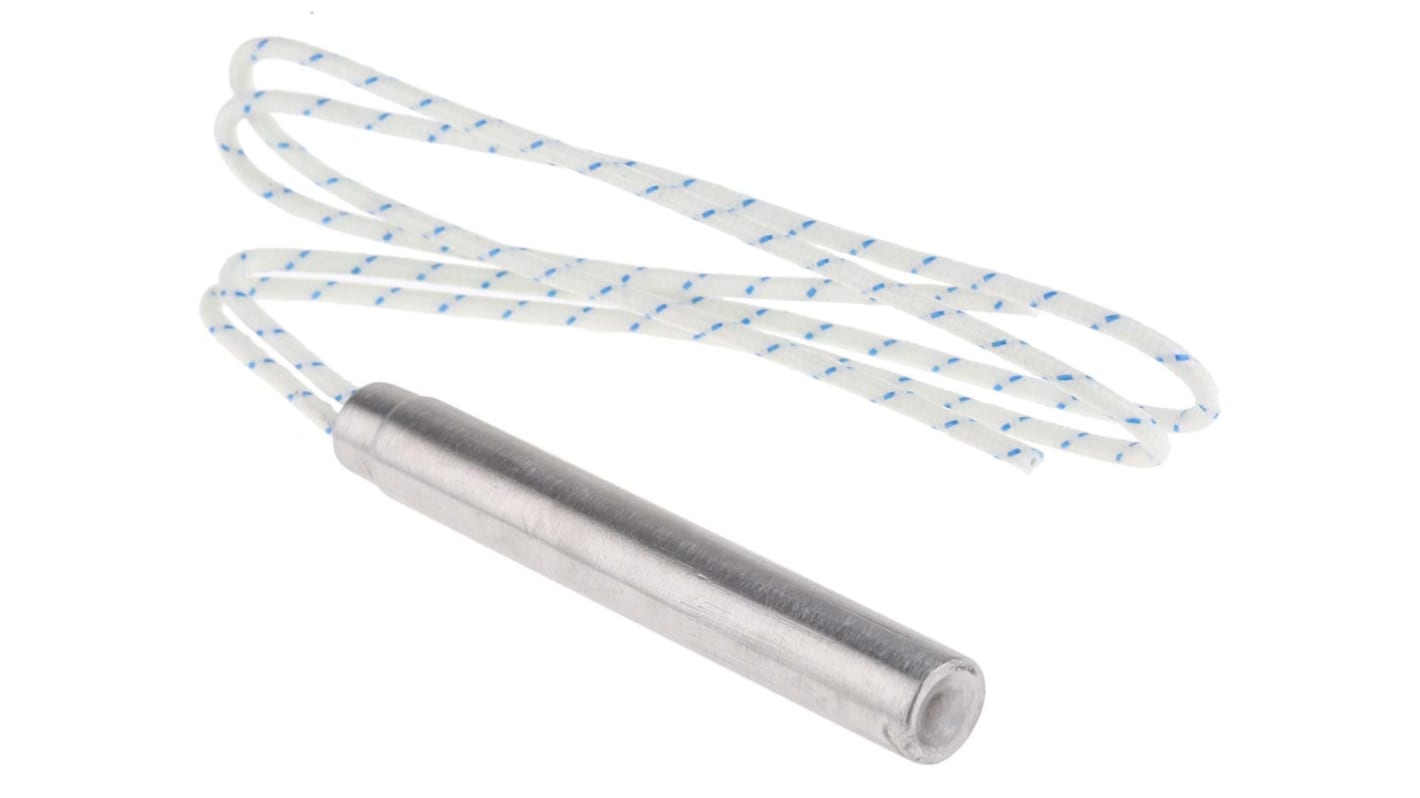

Cartridge Heater, 10 mm x 70 mm, 250 W, 220 V ac
This cartridge heater is a tube-shaped heating element that's used to heat a variety of metal plates and components. It's part of our stringently tested RS PRO series.
Used primarily in industrial settings, these heating cartridges are handily designed to slide into holes drilled with English or metric drill sizes. Its important to consider the intended use beforehand, as the element needs to fit snugly to work. For reference, this cartridge has a diameter of 10 mm.
The heater is equipped with a 10-inch lead wire that can withstand temperatures of up to +450°C. The lead itself is flexible, with deep holes in the ceramic cap designed to prevent fraying when bent.
Versatile and robust, this cartridge heater is a great choice for use in plastics and packaging applications, test instruments, hot stamping and printing. It's also RoHS certified, which means it's protected against hazardous substances.
Used primarily in industrial settings, these heating cartridges are handily designed to slide into holes drilled with English or metric drill sizes. Its important to consider the intended use beforehand, as the element needs to fit snugly to work. For reference, this cartridge has a diameter of 10 mm.
The heater is equipped with a 10-inch lead wire that can withstand temperatures of up to +450°C. The lead itself is flexible, with deep holes in the ceramic cap designed to prevent fraying when bent.
Versatile and robust, this cartridge heater is a great choice for use in plastics and packaging applications, test instruments, hot stamping and printing. It's also RoHS certified, which means it's protected against hazardous substances.
Features and Benefits
• Power rating of 250 W
• Supply voltage of 220 V ac
• Diameter of 10 mm
• Length of 70 mm
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation
• Supply voltage of 220 V ac
• Diameter of 10 mm
• Length of 70 mm
• Lead length of 10 inches
• Nickel-chromium resistance wire for maximum heater life
• TIG-welded end disc prevents contamination and moisture absorption
• Fibreglass lead wire insulation
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Cartridge Heaters
In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.
Designed to provide localised heat to a restricted work area requiring close thermal control
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet
Cartridge heaters have low/moderate watt density elements consisting of helical wire coils on ceramic former or high watt density elements with the heating element located close to the sheath, which is swaged to improve heat conduction
All units supplied with instruction leaflet
