HellermannTyton Halogen Free Heat Shrink Tubing, White 38.1mm Sleeve Dia. x 13m Length 2:1 Ratio, TLFX Series
- RS Stock No.:
- 181-3135
- Mfr. Part No.:
- 554-51800 TLFX381WH-PO-X-WH
- Brand:
- HellermannTyton
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-3135
- Mfr. Part No.:
- 554-51800 TLFX381WH-PO-X-WH
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Sleeve Diameter | 38.1mm | |
| Colour | White | |
| Shrunk Diameter | 19mm | |
| Sleeve Type | Heat Shrink | |
| Adhesive Lined | No | |
| Shrink Ratio | 2:1 | |
| Sleeve Length | 13m | |
| Material | Polyolefin Cross Linked (POX) | |
| Halogen Free | Yes | |
| Standards Met | RoHS | |
| Series | TLFX | |
Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Sleeve Diameter 38.1mm | ||
Colour White | ||
Shrunk Diameter 19mm | ||
Sleeve Type Heat Shrink | ||
Adhesive Lined No | ||
Shrink Ratio 2:1 | ||
Sleeve Length 13m | ||
Material Polyolefin Cross Linked (POX) | ||
Halogen Free Yes | ||
Standards Met RoHS | ||
Series TLFX | ||
- COO (Country of Origin):
- CN
HellermannTyton Heat Shrink and Cold Shrink Sleeve
The HellermannTyton heat shrink and cold shrink sleeve is halogen free heat shrink marker material supplied as a continuous tube and printable on both sides. This TLFX381 white colour marker contains polyolefin cross-linked compound with good mechanical strength and resistance to organic solvents and chemicals. It has a 38.1mm sleeve, 19mm shrunk diameter and 13000mm length. The surface of the tubing is specially prepared for excellent print performance at all times. It has a range that allows the users to create a high quality print. It is possible to either perforate the tubing at predetermined lengths or fully sever the markers.
Features and Benefits
• Delivery in convenient storage boxes
• Density and toxicity
• Halogen Free
• Highly flexible
• Low smoke propagation
• Operating temperature ranges between -55°C and 105°C
• Shrink ratio 2:1
• Density and toxicity
• Halogen Free
• Highly flexible
• Low smoke propagation
• Operating temperature ranges between -55°C and 105°C
• Shrink ratio 2:1
Applications
• Automation technology
• Cable assembly

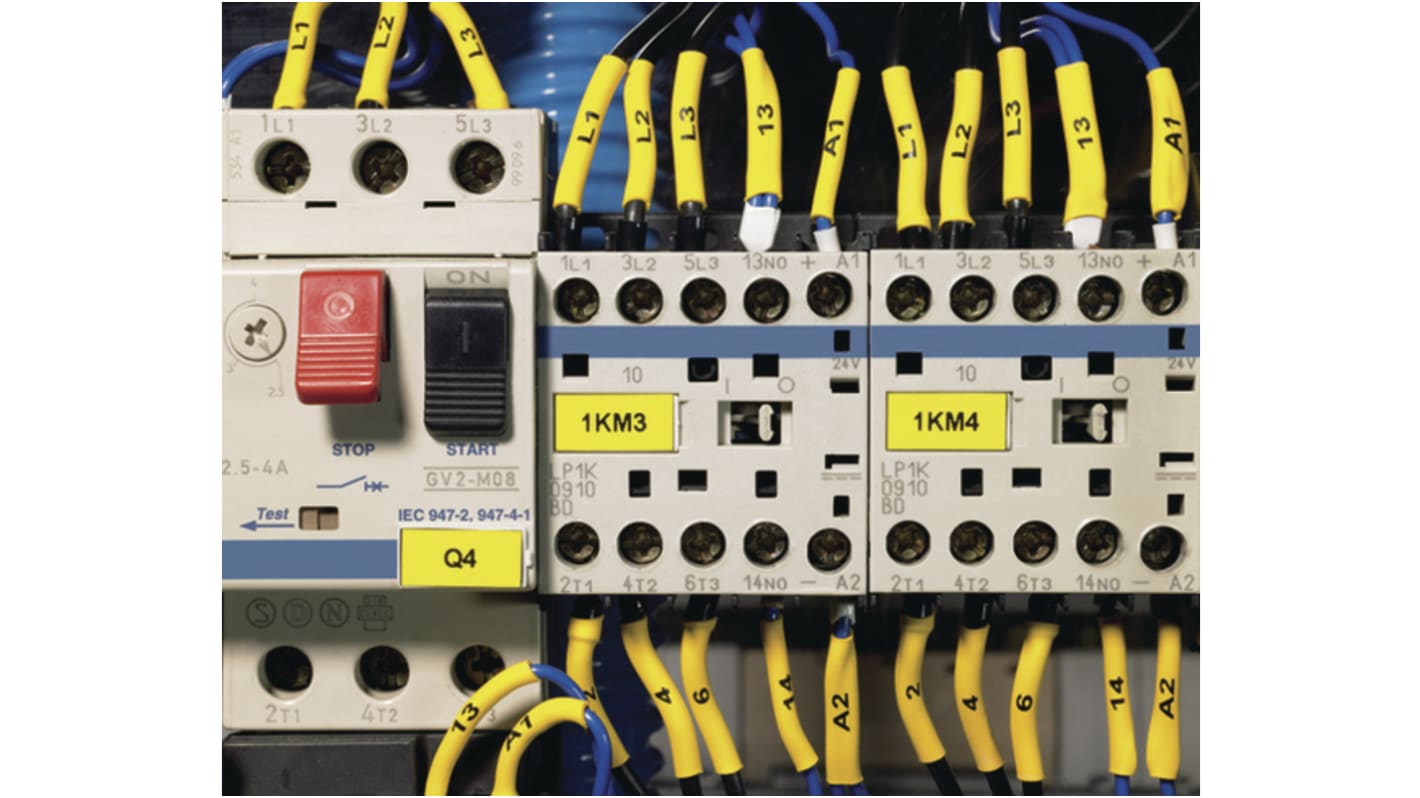

• Marking wires and cables
• Medical devices
• Switchgears construction
• Cable assembly
• Marking wires and cables
• Medical devices
• Switchgears construction
Certifications
• BS-6853:1999
• EN 45545-2:2013
• EN ISO 11925-2: 2002
• HF
• LFH
• NF F 16-101
• Rail approved
• EN 45545-2:2013
• EN ISO 11925-2: 2002
• HF
• LFH
• NF F 16-101
• Rail approved
