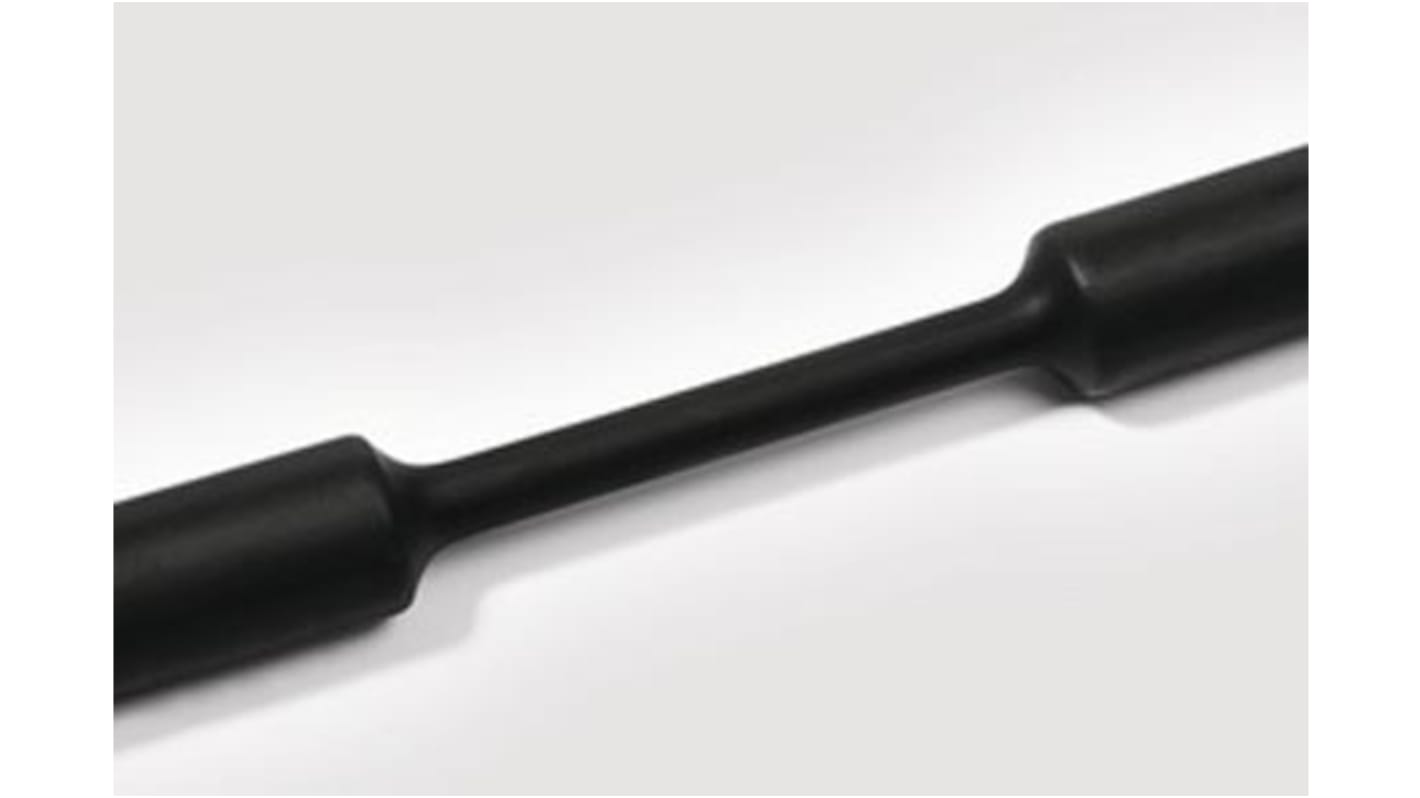

HellermannTyton Heat Shrink Tubing, Black 3.2mm Sleeve Dia. x 1m Length 2:1 Ratio, TCN20 Series
- RS Stock No.:
- 133-1758
- Mfr. Part No.:
- 300-73556 TCN20-3.2/1.6-PO-X-BK
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 box of 30 units)*
£41.62
(exc. VAT)
£49.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 - 14 | £41.62 | £1.387 |
15 - 49 | £39.58 | £1.319 |
50 + | £38.71 | £1.29 |
*price indicative
- RS Stock No.:
- 133-1758
- Mfr. Part No.:
- 300-73556 TCN20-3.2/1.6-PO-X-BK
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HellermannTyton | |
Sleeve Diameter | 3.2mm | |
Colour | Black | |
Shrunk Diameter | 1.6mm | |
Sleeve Type | Heat Shrink | |
Adhesive Lined | No | |
Shrink Ratio | 2:1 | |
Sleeve Length | 1m | |
Material | Polyolefin | |
Operating Temperature Range | -55 → +125 °C | |
Flame Retardant | Yes | |
Halogen Free | No | |
Standards Met | CSA, cULus Recognised, E 143529, UL 224 VW-1 | |
Series | TCN20 | |
Select all | ||
---|---|---|
Brand HellermannTyton | ||
Sleeve Diameter 3.2mm | ||
Colour Black | ||
Shrunk Diameter 1.6mm | ||
Sleeve Type Heat Shrink | ||
Adhesive Lined No | ||
Shrink Ratio 2:1 | ||
Sleeve Length 1m | ||
Material Polyolefin | ||
Operating Temperature Range -55 → +125 °C | ||
Flame Retardant Yes | ||
Halogen Free No | ||
Standards Met CSA, cULus Recognised, E 143529, UL 224 VW-1 | ||
Series TCN20 | ||
- COO (Country of Origin):
- GB
HellermannTyton TCN20 Heat Shrink Tubing
The TCN20 series of heat shrink tubing is flexible, flame retardant and manufactured from high-quality polyolefin. The tubing has a shrink ratio of 2:1 with an operating temperature range of -55 to +125°C. The TCN20 range of heat shrink is ideal for use in many applications such as cable bundling, electrical insulation, strain relief, identification and mechanical protection.
Features and Benefits
Shrink ratio of 2:1
Minimum shrink temperature 100°C
Thin wall
Self-extinguishing to UL 224 VW-1
