MPN

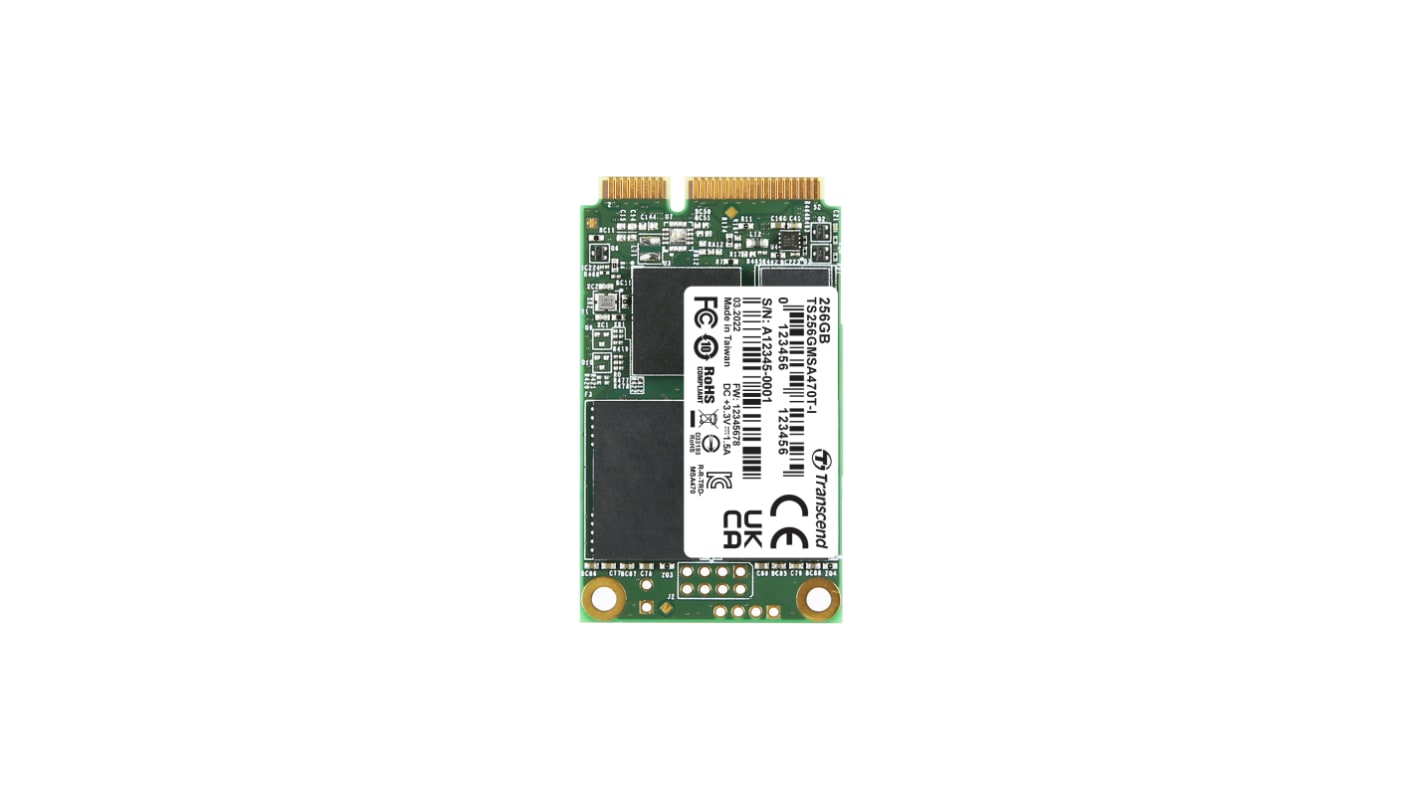

Transcend MSA470T-I mSATA 256 GB Internal SSD

RS Stock No.:: 262-9710
Mfr. Part No.:: TS256GMSA470T-I
Brand:: Transcend

Transcend MSA470T-I mSATA 256 GB Internal SSD

Subtotal (1 unit)*

£359.20

(exc. VAT)

£431.04

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£359.20

*price indicative

Transcend SD Card Readers—Available Now at RS

Move data with confidence using Transcend SD card readers, engineered for consistent performance and broad card compatibility. Ideal for professional and industrial environments where reliability matters.

Shop Now

RS Stock No.:: 262-9710
Mfr. Part No.:: TS256GMSA470T-I
Brand:: Transcend

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Transcend
	Memory Size	256GB
	Sub Type	SSD
	Product Type	SSD
	Model Number	MSA470T-I
	Internal/External	Internal
	Form Factor	mSATA
	Industrial Grade	Yes
	NAND Type	3D TLC
	Encryption Level	AES
	Interface Type	SATA III
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C
	Standards/Approvals	BSMI, CE, FCC, RoHS, UKCA
	Width	29.85mm
	Length	50.80mm
	Height	4.85mm

	Select all
	Brand Transcend
	Memory Size 256GB
	Sub Type SSD
	Product Type SSD
	Model Number MSA470T-I
	Internal/External Internal
	Form Factor mSATA
	Industrial Grade Yes
	NAND Type 3D TLC
	Encryption Level AES
	Interface Type SATA III
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C
	Standards/Approvals BSMI, CE, FCC, RoHS, UKCA
	Width 29.85mm
	Length 50.80mm
	Height 4.85mm

Datasheet - TS256GMSA470T-I

RoHS Status: Exempt

Transcend SSD, 256GB Memory Size, SATA III Interface - TS256GMSA470T-I

This SSD is an internal solid-state storage device designed for industrial applications where a Compact form and secure data handling are required. It connects via a SATA III Interface and employs 3D TLC NAND to provide solid-state performance within embedded systems and constrained assemblies.

Features and Benefits:

• 256GB capacity enables substantial local data retention
• AES encryption protects stored data at rest
• Operates from -40°C to 85°C for harsh environment tolerance
• Industrial-grade design suited to continuous duty cycles
• Low-profile 4.85mm height supports space-limited installations

Applications

• Ideal for embedded controllers in industrial automation
• Suitable for transportation systems requiring wide-temperature parts
• Used with medical instruments needing Compact encrypted storage
• Can be used for edge computing in factory-floor devices
• Used for CCTV recorders where sustained write is required

What physical format does the drive use?

It is supplied in an mSATA form factor suitable for compatible internal slots.

Which NAND technology is implemented and why does it matter?

The drive uses 3D TLC NAND which balances storage density and endurance for industrial use.

Which regulatory approvals accompany the device?

It holds BSMI, CE, FCC, RoHS and UKCA approvals.

How is the unit connected to a host system?

It interfaces over a SATA III link for mainstream serial ATA connectivity.
