Rose, Polyamide, Handheld Enclosure, IP65 ,85 mm x 191 mm x 115 mm

  • RS Stock No. 186-9973
  • Mfr. Part No. 29212000
  • Brand Rose
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

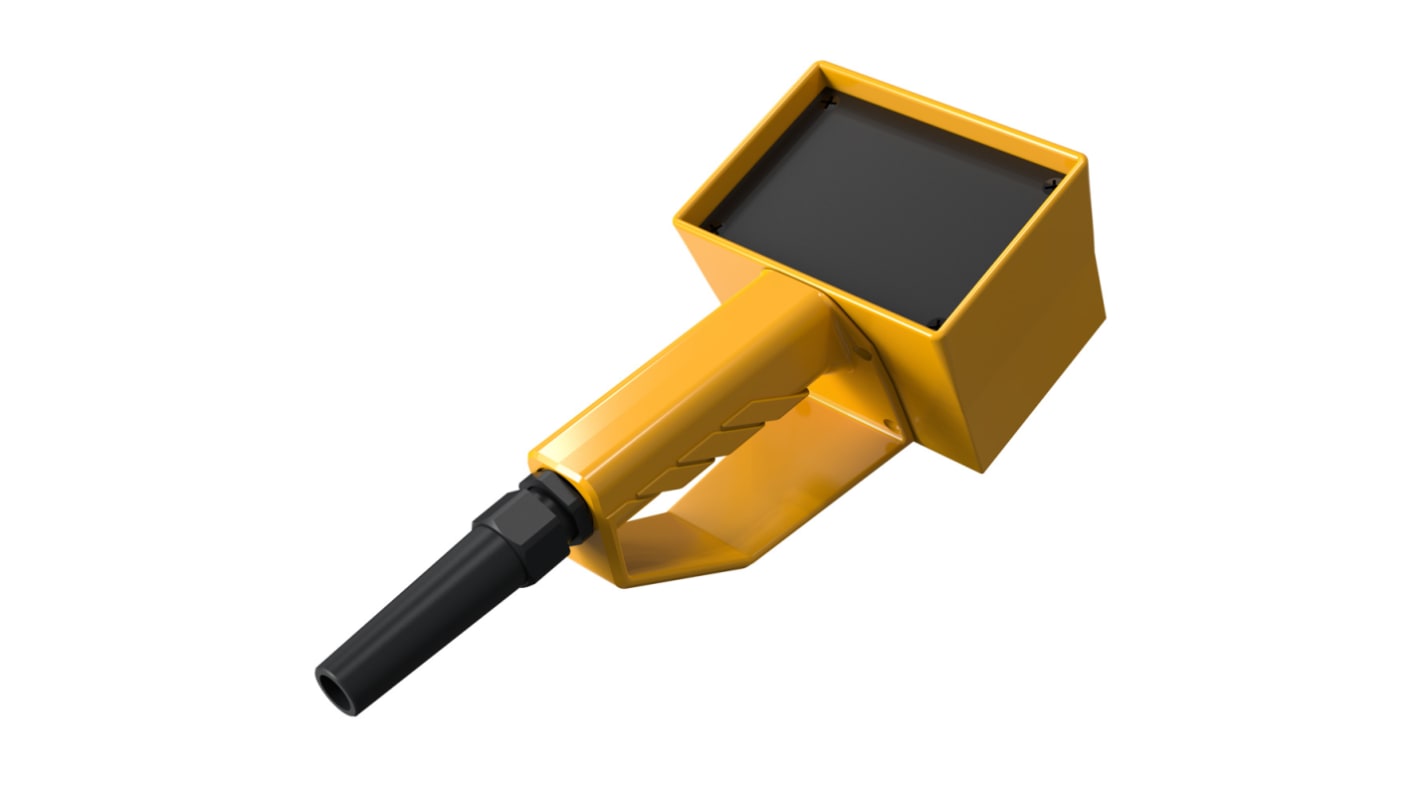

Pilot 110-150 (2921) Series Hand Held Enclosures.

The Rose Pilot 2921 series of hand-held enclosures are ideal for automation, mechanical and control engineering. The mobile enclosures provide you with a large enclosed area for installing components including membrane keypads and switches. A comfortable ergonomic design and the various sizes of enclosure, within the series, ensures you can tailor the enclosure membrane front panel to suit your installation requirements.

Features and Benefits.

• Pilot 110 to 150 (2921) handheld enclosure. • Large enclosure area.
• Area for installation of membrane keypads and switches.
• Ergonomic.
• Body material Polyamide.
• Front plate material Polystyrol.
• Colour – Yellow (RAL 1003).
• IP 65 (EN 60529).
• Flammability resistant UL 94 HB.
• Temperature range -40°C to +60°C.
• Various sizes available.

Hand Held Enclosure Models Available.

• Stock number 1869951, Pilot 110. • Stock number 1869973, Pilot 120.
• Stock number 1869989, Pilot 130.
• Stock number 1869995, Pilot 140.
• Stock number 1870002, Pilot 150.

Enclosure Typical Applications.

• Automation. • Mechanical.
• Control.

(IP) Ingress Protection and what it means.

The first number is the protection from solids. The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

What is Supplied?

• Enclosure with a handle. • M20 x 1.5 Cable gland.
• Front plate.
• Panel screws for the enclosure and front.
• Wall holder.

Stock no. 186-9951 186-9973 186-9989 186-9995 187-0002
A (box Length Ext.) 85 115 85 160 105
B (box Height Ext.) 85 85 115 105 160
C 77 107 77 152 97
D 77 77 107 97 152
E 70.5/68 100.5/98 70.5/68 145.5/143 90.5/88
F 70.5/68 70.5/68 100.5/98 90.5/88 145.5/143
G 65 95 65 140 85
H 65 65 95 85 140
K 55//53 85//83 55//53 130//128 75//73
L 55//53 55//53 85//83 75//73 130//128
M 206 206 236 226 281
N 85 85 85 85 85
O 80 80 80 80 80
P 63.5 63.5 63.5 63.5 63.5
Q 191 191 221 211 266

Standards

IP65 EN 60529, EN 60079-0, UL 94 HB.

//media.rs-online.com/t_line/L186995-01.gif
Specifications
Attribute Value
Body Material Polyamide
External Length 85 mm
External Width 115 mm
External Height 191 mm
IP Rating IP65
Display Window Yes
Colour Yellow
External Dimensions 85 x 115 x 191mm
Push Buttons No
Series 2921
Keypad Recess Yes
Standards Met EN 60079-0
15 In stock for FREE next working day delivery
Price Each
£ 77.94
(exc. VAT)
£ 93.53
(inc. VAT)
Units
Per unit
1 - 14
£77.94
15 - 24
£74.00
25 +
£71.53
