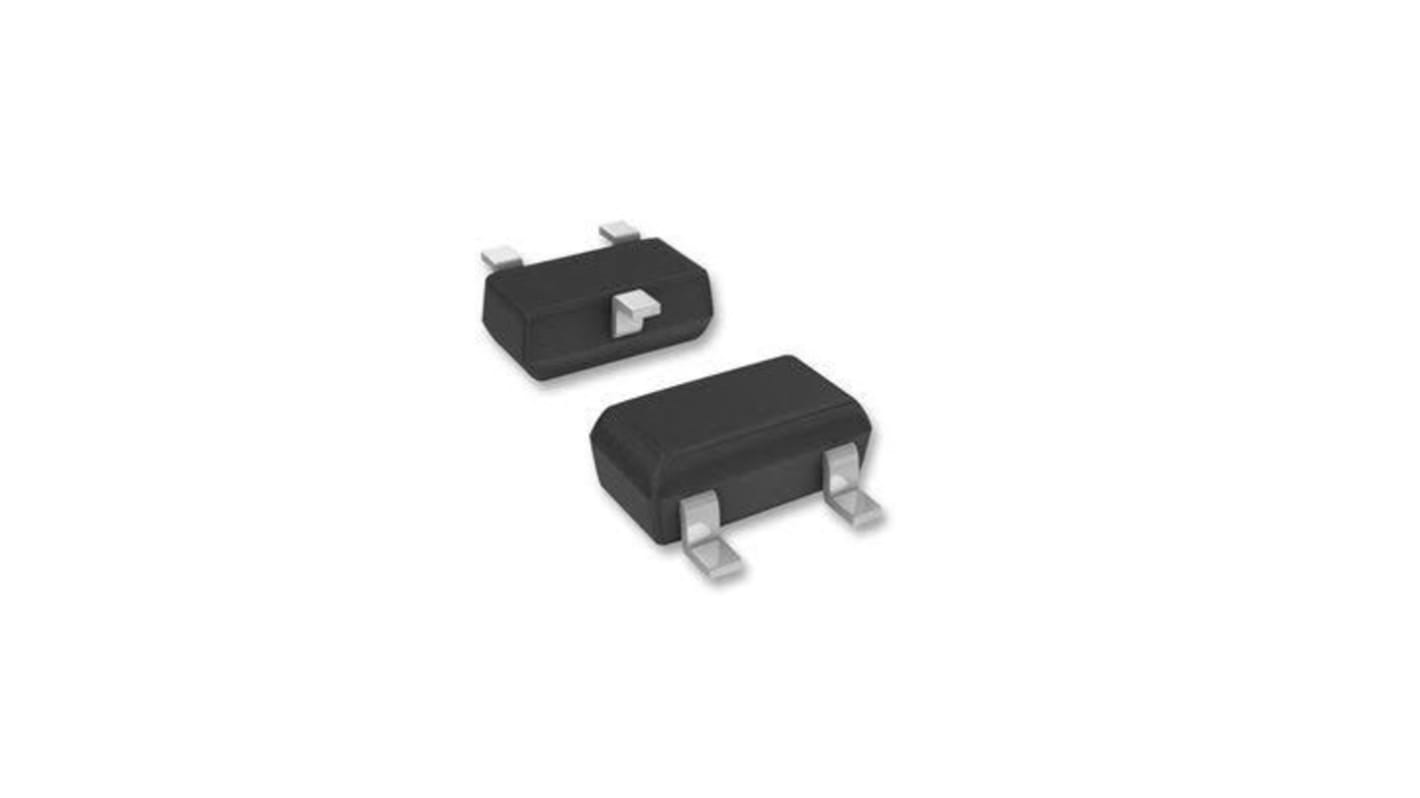

Hall Effect Switch 3.3mA Surface Mount Latching, 2.7 → 27 V
- RS Stock No.:
- 222-2769
- Mfr. Part No.:
- AH3282Q-W-7
- Brand:
- DiodesZetex
3000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.397
(exc. VAT)
£0.476
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £0.397 | £1,191.00 |
| *price indicative | ||
- RS Stock No.:
- 222-2769
- Mfr. Part No.:
- AH3282Q-W-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
Product Details
The DiodesZetex Two-wire automotive hall effect unipolar / latch switch integrates self-diagnostics is also high voltage, high sensitivity switch IC and has automotive-compliant AEC-Q100 qualification, designed for position and proximity sensing in automotive applications.
Battery polarity reverse connection protection
Transient spike voltage protection
Over-temperature shut down and auto-restart
UVLO protection
Temperature range from -40°c to +150°c
Transient spike voltage protection
Over-temperature shut down and auto-restart
UVLO protection
Temperature range from -40°c to +150°c
Specifications
Attribute | Value |
|---|---|
| Supply Current | 3.3mA |
| Terminal Type | Surface Mount |
| Switching Action | Latching |
| Supply Voltage Range | 2.7 → 27 V |
