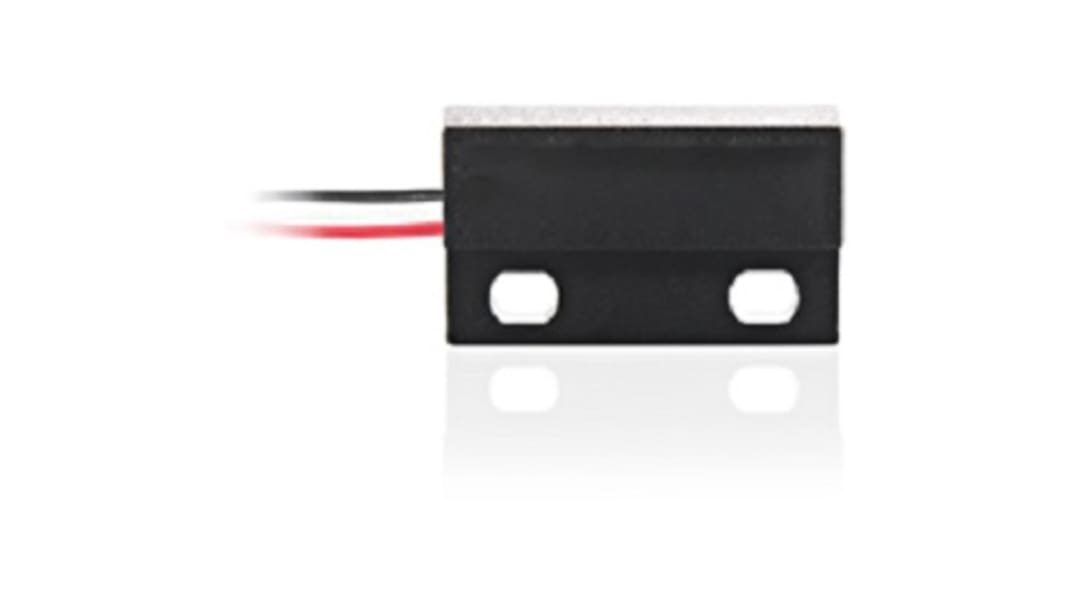

RS PRO Hall Effect Sensor Flange, NPN Output, Rectangular Body, 40 V 24 V

RS Stock No.:: 289-2085
Brand:: RS PRO

RS PRO Hall Effect Sensor Flange, NPN Output, Rectangular Body, 40 V 24 V

Subtotal (1 unit)*

£5.00

(exc. VAT)

£6.00

(inc. VAT)

Add 10 units to get free delivery

Orders below £50.00 (exc. VAT) cost £6.95.

Temporarily out of stock

307 unit(s) shipping from 17 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.00

*price indicative

RS Stock No.:: 289-2085
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Hall Effect Sensor
	Output Type	NPN
	Body Style	Rectangular
	Terminal Type	3-Wire
	Mount Type	Flange
	Maximum DC Voltage	40V
	Maximum Supply Voltage	24V
	Minimum Operating Temperature	-20°C
	Depth	5.9mm
	Width	13.9 mm
	Standards/Approvals	RoHS, REACH
	Length	23mm
	Maximum Operating Temperature	85°C
	IP Rating	IP67
	Housing Material	ABS

	Select all
	Brand RS PRO
	Product Type Hall Effect Sensor
	Output Type NPN
	Body Style Rectangular
	Terminal Type 3-Wire
	Mount Type Flange
	Maximum DC Voltage 40V
	Maximum Supply Voltage 24V
	Minimum Operating Temperature -20°C
	Depth 5.9mm
	Width 13.9 mm
	Standards/Approvals RoHS, REACH
	Length 23mm
	Maximum Operating Temperature 85°C
	IP Rating IP67
	Housing Material ABS

Manufacturer Information

COO (Country of Origin):: CN

RS PRO 24V Unipolar Flat Packed Hall Effect Sensor

A reliable and accurate 24V hall effect position sensor with a Unipolar design. The Unipolar flat packed hall effect sensor is ideal for a wide range of non-contact operations including position control, speed measurement, level sensing and flow detection applications.

The hardwearing and durable hall sensor is encapsulated within a flat packed ABS body protected to IP67 with excellent strength and corrosion resistance highly suited for use in the automotive industry.

An easy to mount threaded design connected with 3 (red, white, black) AWG 24 wires rated to UL 1007/1569 suited for internal wiring applications.

Features and Benefits

Unipolar operation

3 wire termination

Flat Packed design

23 x 13.9 x 5.9mm

Applications

No contact sensing;Position control;Speed measurement (RPM);Level sensing;Flow detection

For a suitable sensing magent please see RS PRO 277-3631
