Hammond 1550 Series Black Die Cast Aluminium Enclosure, IP54, Black Lid, 275 x 175 x 62mm
- RS Stock No.:
- 868-1073
- Distrelec Article No.:
- 110-43-151
- Mfr. Part No.:
- 1550JBK
- Brand:
- Hammond
Subtotal (1 unit)*
£39.35
(exc. VAT)
£47.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.35 |
*price indicative
- RS Stock No.:
- 868-1073
- Distrelec Article No.:
- 110-43-151
- Mfr. Part No.:
- 1550JBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Die Cast Aluminium | |
| External Length | 275 mm | |
| External Height | 62 mm | |
| External Width | 175 mm | |
| External Dimensions | 275 x 175 x 62mm | |
| IP Rating | IP54 | |
| Range | 1550 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | No | |
| Shielded | Yes | |
| Series | 1550 | |
| Transparent Door | No | |
| Weight | 1070g | |
| RAL Code | RAL 9005 | |
| Explosion Proof | No | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Die Cast Aluminium | ||
External Length 275 mm | ||
External Height 62 mm | ||
External Width 175 mm | ||
External Dimensions 275 x 175 x 62mm | ||
IP Rating IP54 | ||
Range 1550 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged No | ||
Shielded Yes | ||
Series 1550 | ||
Transparent Door No | ||
Weight 1070g | ||
RAL Code RAL 9005 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- TW

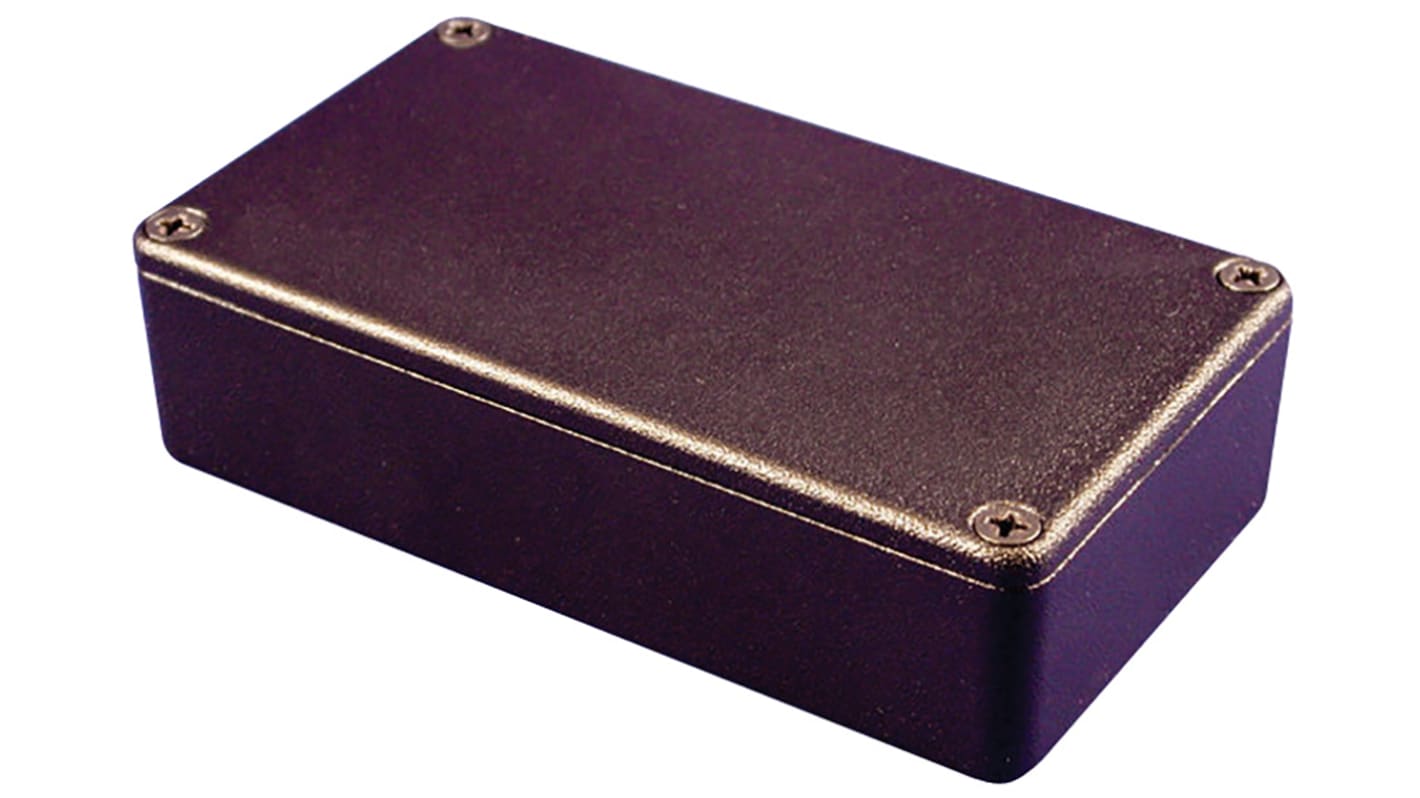

Hammond Enclosure, 275 (L) x 175 (W) x 71mm (H), Die-Cast Aluminium Construction, IP54 Rating - 1550 Series - 1550JBK
Let this enclosure from Hammond guard your electronic equipment. Thanks to aluminium alloy material and a polyester powder paint coating, you can be sure it's durable and corrosion-resistant. It's die-cast, so there are no soldered or riveted joints that could be weak points. This ensures the box is strong enough to handle bumps and rough handling. Pre-tapped holes and Philips-head screws give you a secure way to fix the lid using a standard screwdriver. Thanks to the lid's lap-joint design and IP54 rating, your devices are covered against water splashes and dust. The strongly sealed construction boosts EMI and RFI shielding, helping industrial instrumentation to stay reliable.
Features & Benefits
• Rounded edges mean you won't get into scrapes installing your equipment
• Wall draft angle is no more than 2°, so PCBs have no trouble fitting in
• Possible to upgrade protection to IP66 with a foam gasket (253-9487) or IP67 with the silicone version (253-9488)
• Wall draft angle is no more than 2°, so PCBs have no trouble fitting in
• Possible to upgrade protection to IP66 with a foam gasket (253-9487) or IP67 with the silicone version (253-9488)
Applications
• Research laboratories
• Transport industry
• Assembly lines
• Machine building
• Transport industry
• Assembly lines
• Machine building
Can I use Torx screws on the lid?
Yes. Using M3.5 Torx screws (253-9499) on the lid improves the tamper-resistance of this enclosure.
