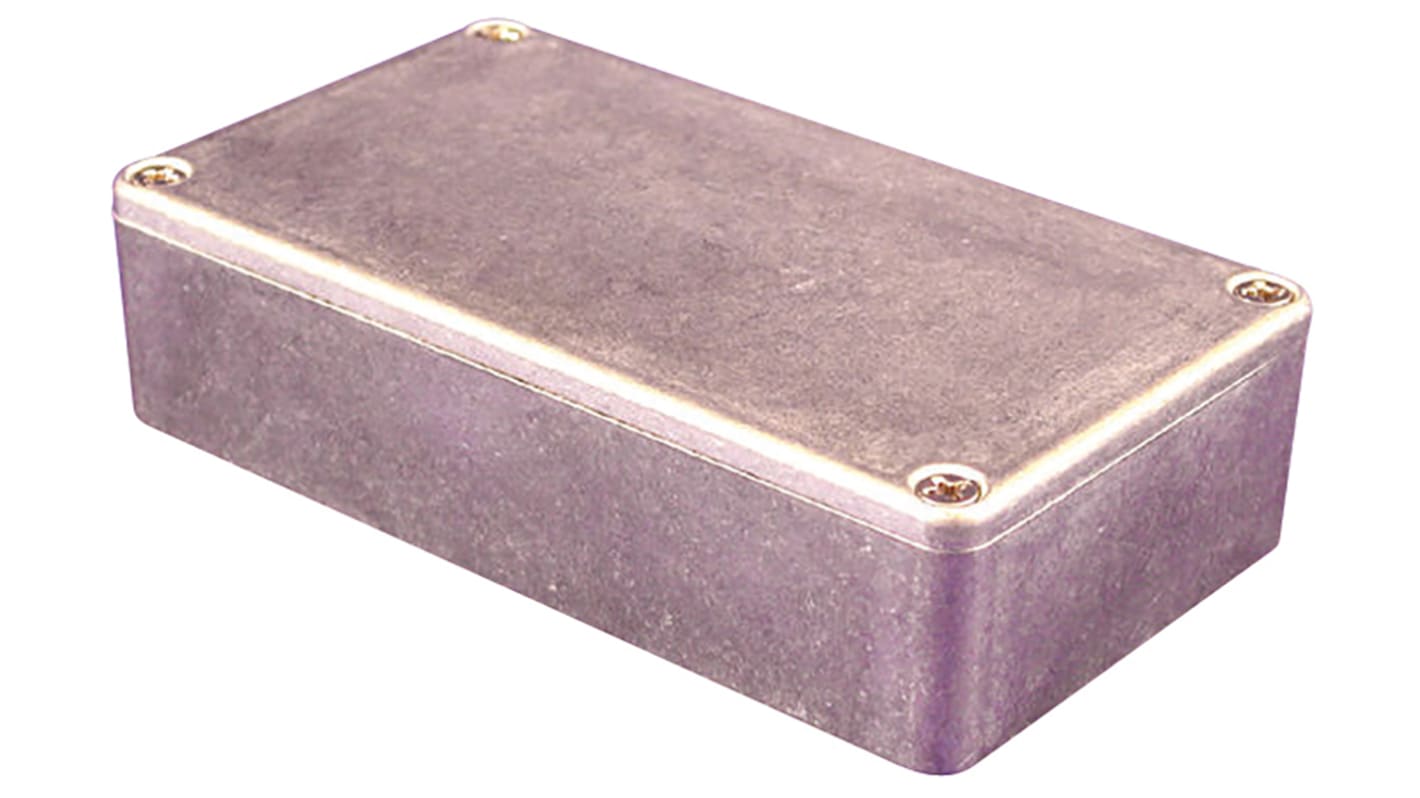

Hammond 1550 Series Natural Die Cast Aluminium Enclosure, IP54, Natural Lid, 171 x 121 x 55mm
- RS Stock No.:
- 868-1045
- Distrelec Article No.:
- 110-43-142
- Mfr. Part No.:
- 1550E
- Brand:
- Hammond
Subtotal (1 unit)*
£14.92
(exc. VAT)
£17.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 33 unit(s) ready to ship
- Plus 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.92 |
*price indicative
- RS Stock No.:
- 868-1045
- Distrelec Article No.:
- 110-43-142
- Mfr. Part No.:
- 1550E
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Die Cast Aluminium | |
| External Length | 171 mm | |
| External Height | 55 mm | |
| External Width | 121 mm | |
| External Dimensions | 171 x 121 x 55mm | |
| Range | 1550 | |
| IP Rating | IP54 | |
| Colour | Natural | |
| Lid Colour | Natural | |
| Flanged | No | |
| Shielded | Yes | |
| Series | 1550 | |
| Weight | 414g | |
| Transparent Door | No | |
| Explosion Proof | No | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Die Cast Aluminium | ||
External Length 171 mm | ||
External Height 55 mm | ||
External Width 121 mm | ||
External Dimensions 171 x 121 x 55mm | ||
Range 1550 | ||
IP Rating IP54 | ||
Colour Natural | ||
Lid Colour Natural | ||
Flanged No | ||
Shielded Yes | ||
Series 1550 | ||
Weight 414g | ||
Transparent Door No | ||
Explosion Proof No | ||
- COO (Country of Origin):
- TW
Hammond Enclosure, 171 (L) x 121 (W) x 51mm (H), Die-Cast Aluminium Material, Lap Joint Construction - 1550 Series - 1550E
Box clever with this instrument enclosure from Hammond. It protects your devices from environmental stresses, so you don't need to worry about damage or malfunction. The unit's made from rugged die-cast aluminium with a lap-joint construction that helps to keep out dust and splashes of liquid. There are no sharp edges that could snag or cause injury as the box is unpainted with a Vibra finish that gives it a smooth surface. As it provides EMI/RFI shielding, this is a smart choice to help maintain the quality of your signals.
Features & Benefits
• IP54-rated, meaning it offers partial protection against dust and low-pressure water sprays
• Low side wall draft angle of 2° or less makes for easy mounting of PCBs
• Tips the scales at just 414g, so doesn't add weight to your setup
• Low side wall draft angle of 2° or less makes for easy mounting of PCBs
• Tips the scales at just 414g, so doesn't add weight to your setup
Applications
• Avionics equipment
• Marine electronics
• Medical diagnostics
• Marine electronics
• Medical diagnostics
Does this enclosure box come with fixtures to fasten the lid?
Yes, as well as the enclosure box, you'll get four M3.5 x 0.6 x 12 mm Phillips head machine screws to secure its lid. They're made of durable stainless steel, so shrug off corrosion.
