Hammond 1455 Series Black Aluminium Enclosure, IP54, Black Lid, 80 x 45 x 25mm
- RS Stock No.:
- 818-0592
- Mfr. Part No.:
- 1455D802BK
- Brand:
- Hammond
Subtotal (1 unit)*
£10.95
(exc. VAT)
£13.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.95 |
*price indicative
- RS Stock No.:
- 818-0592
- Mfr. Part No.:
- 1455D802BK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Aluminium | |
| External Length | 80 mm | |
| External Height | 25 mm | |
| External Width | 45 mm | |
| External Dimensions | 80 x 45 x 25mm | |
| IP Rating | IP54 | |
| Range | 1455 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | No | |
| Shielded | No | |
| Series | 1455 | |
| Weight | 70g | |
| Transparent Door | No | |
| RAL Code | RAL 9005 | |
| Explosion Proof | No | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Aluminium | ||
External Length 80 mm | ||
External Height 25 mm | ||
External Width 45 mm | ||
External Dimensions 80 x 45 x 25mm | ||
IP Rating IP54 | ||
Range 1455 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged No | ||
Shielded No | ||
Series 1455 | ||
Weight 70g | ||
Transparent Door No | ||
RAL Code RAL 9005 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA

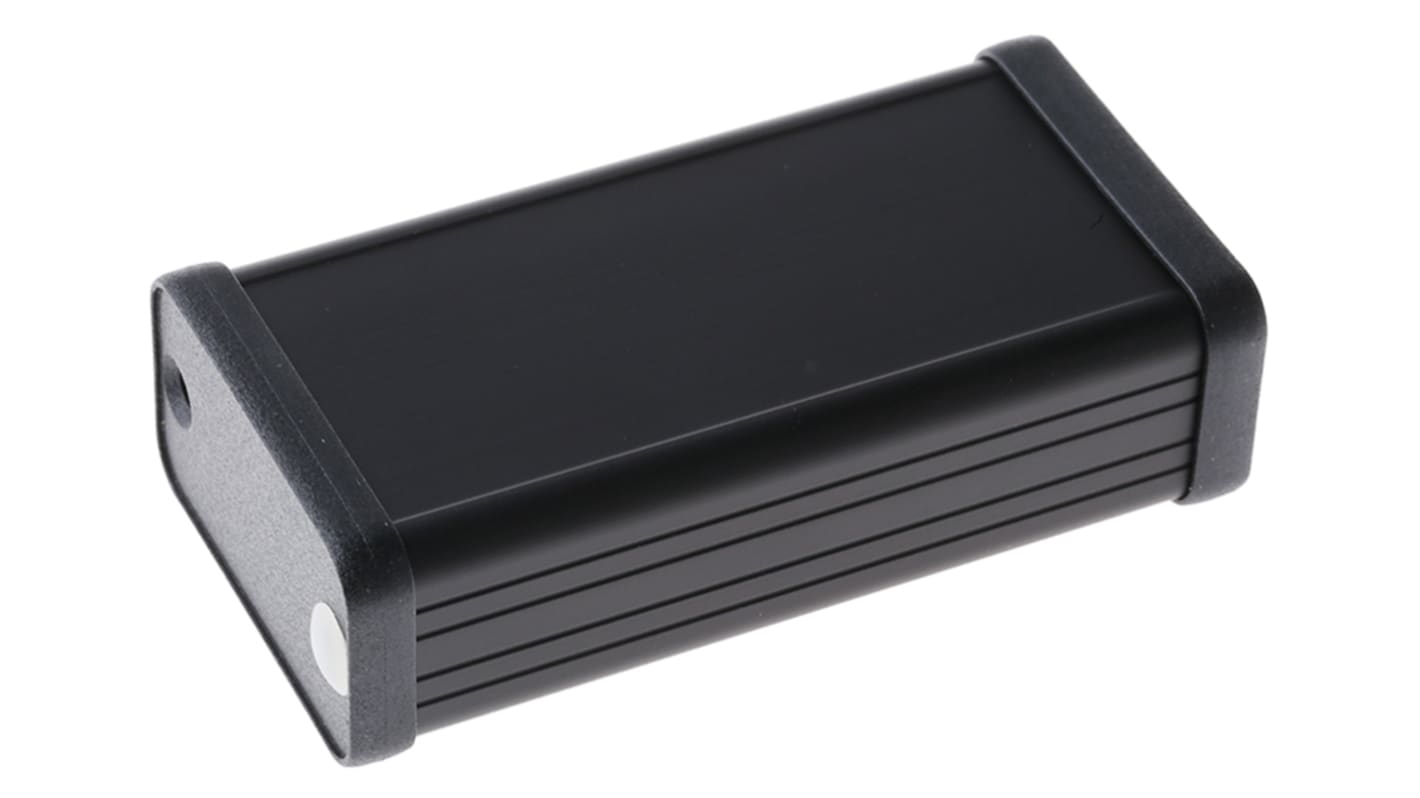

Hammond Enclosure, 80 (L) x 45 (W) x 25mm (H), Extruded Aluminium Body, IP54 Rating - 1455 Series -1455D802BK
Looking for a space-saving housing solution for your miniature PCBs? Go for this enclosure from Hammond. With compact dimensions of 80 (L) x 45 (W) x 25mm (H), it's just the right size for standard setups. The unit comes with slots that let you slide circuit boards in horizontally. It also has adhesive rubber feet so it stands firmly on flat surfaces, even in vibrating systems. You don't need complex gear to put this enclosure together – a simple screwdriver gets the four screws on the end panels tightened in a jiffy.
Features & Benefits
• IP54 rating shows that it's dust-resistant and withstands water sprays from all directions
• Light weight of 70g for easy handling during assembly
• Rounded edges make it comfortable to hold and prevent nicks and scratches
• Minimum wall thickness of 1.5mm for durability and impact-resistance
• Light weight of 70g for easy handling during assembly
• Rounded edges make it comfortable to hold and prevent nicks and scratches
• Minimum wall thickness of 1.5mm for durability and impact-resistance
Applications
• Gaming hardware
• Process and packaging industry
• Water treatments plants
• Process and packaging industry
• Water treatments plants
What material is the enclosure made from?
This is an aluminium unit with plastic end plates, so you can trust its durability and longevity.
