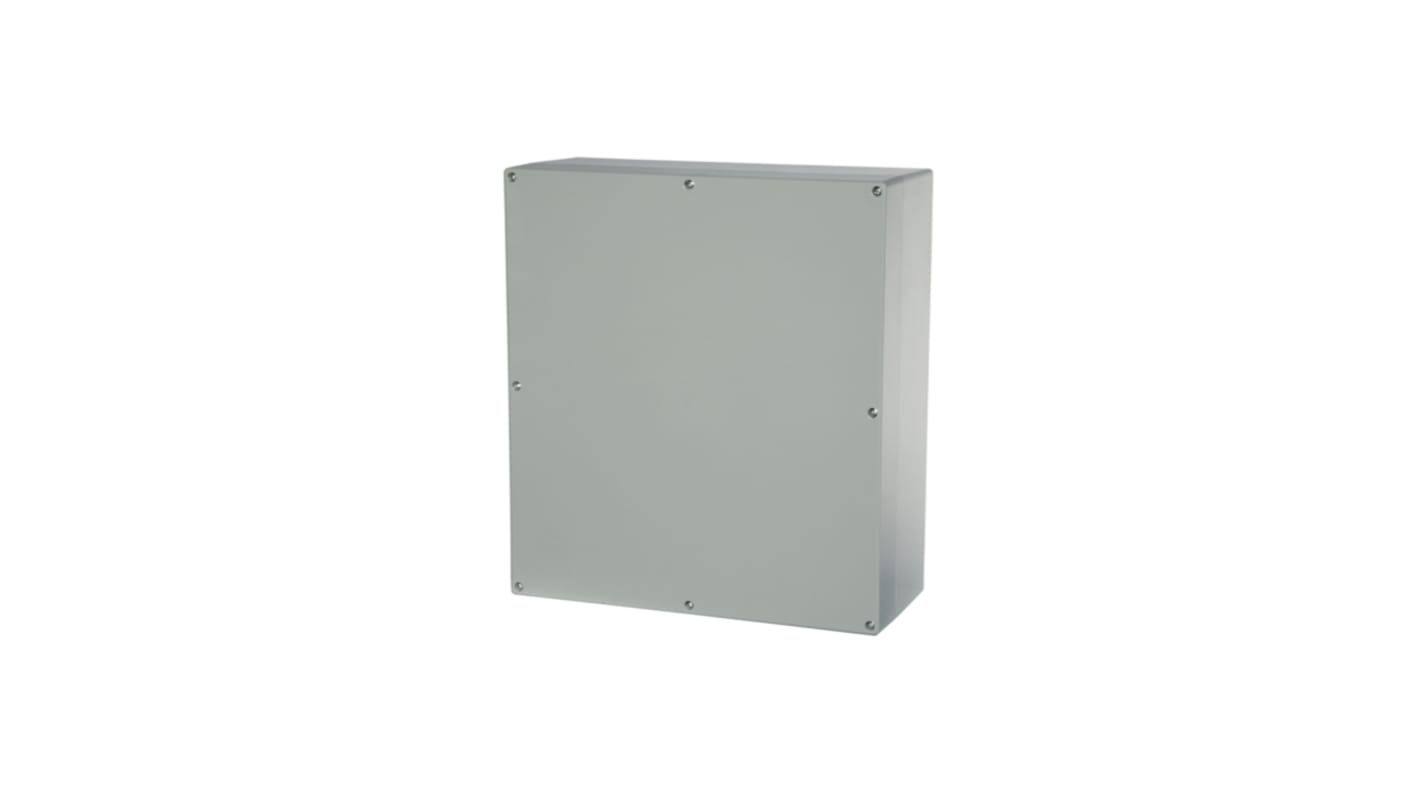

Fibox Grey ABS Enclosure, IP66, IP67, 400 x 360 x 151mm

Subtotal (1 unit)*

£188.07

(exc. VAT)

£225.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£188.07

*price indicative

RS Stock No.:
797-5349
Distrelec Article No.:
150-66-618
Mfr. Part No.:
AB 364015 ENCLOSURE
Brand:
Fibox
Find similar products by selecting one or more attributes.
Select all

Brand

Fibox

Body Material

ABS

External Length

400 mm

External Height

151 mm

External Width

360 mm

External Dimensions

400 x 360 x 151mm

IP Rating

IP66, IP67

Colour

Grey

Shielded

No

COO (Country of Origin):
FI

Euronord ABS Enclosures


The Euronord ll ABS enclosure is designed to house DIN rail mounted terminal blocks and is also ideal for housing various sensors for process control applications.

Features and Benefits:


Outer surface is free of ’gate marks’ creating a smooth area for labels, decals or screen printing
Cover screws fully tighten in 4 revolutions, are held captive, but are still removable
Injection moulded plastic threads allow the cover screws to fasten quickly while preventing sticking and corrosion
Multiple low height mounting points maximise useable internal depth
Decorative cover plugs create a smooth finished appearance
Mounting holes are outside the gasket area to maintain water tight protection
Bevelled edge design creates a modern look
Robotically applied and foamed in place PUR gasket
Extension strip structure reinforces inner gasket groove edge to protect against side impact
IP66/IP67 ingress protection EN60529
IK07 impact resistance EN 50102
Electrically insulated
Halogen free
Good chemical resistance
UL94HB flammability rating

Standards

USA: Enclosures for Electrical Equipment NEMA Type 1, 4, 4X, 12 and 13
Canada: Industrial Control Equipment, Enclosures for Electrical Equipment/ULc
Europe: Safety of Information Technology Equipment EN 50298:1998, Safety of Information Technology EN 60950
Australia: Enclosures for Switch Gear and Control Gear AS 3132-1991

Supplied with

Enclosure base, cover with PUR gasket, cover screws and mounting screws.

Additional Features:


Baseand cover colour RAL 7035 light grey

Cover screw are stainless steel

Gasket is Polyurethane

Temperature Ranges:


Short Term -40° to 80°C

Continuous -40°C to 60°C

Ratings:


Ingress protection EN 60529 IP66 / IP 67

Impact resistance EN 62262 IK07

Flammability rating UL 94 HB

NEMA Class NEMA 1, 4, 4X, 12, 13

Is the Enclosure Box insulated?


Yes, this enclosure is totally electrically insulated

Halogen Free?


Halogen free DIN/VDE 0472 Part 815, 1
