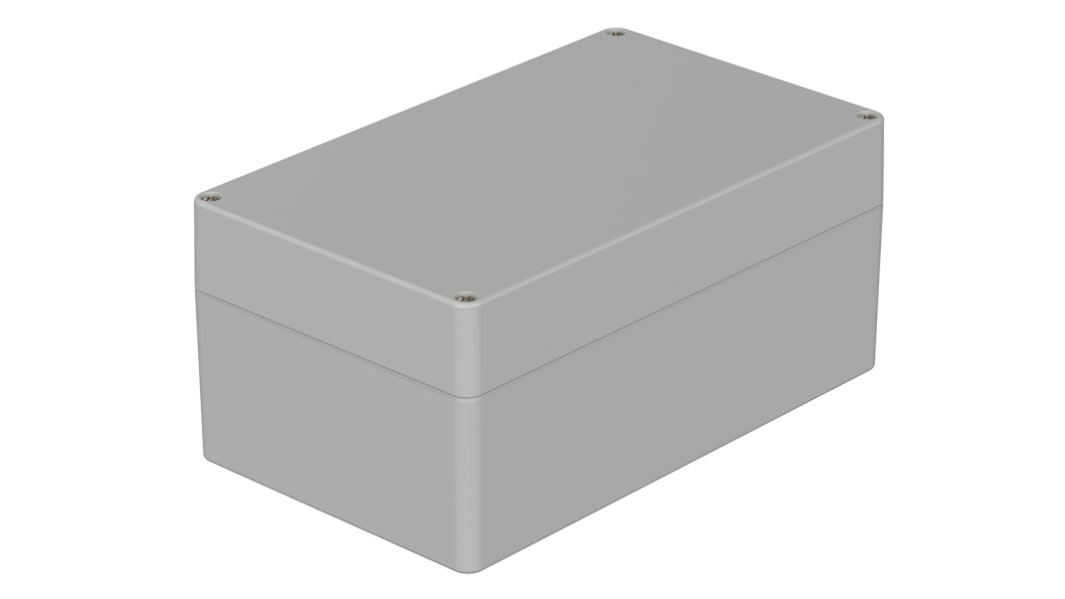

Bopla Euromas Series Light Grey Polycarbonate V0 Enclosure, IP66, IK07, Light Grey Lid, 200 x 120 x 90mm

RS Stock No.:: 756-0007
Distrelec Article No.:: 110-29-262
Mfr. Part No.:: 02237094
Brand:: Bopla

Bopla Euromas Series Light Grey Polycarbonate V0 Enclosure, IP66, IK07, Light Grey Lid, 200 x 120 x 90mm

1 / 3

Subtotal (1 unit)**

£46.12

(exc. VAT)

£55.34

(inc. VAT)

13 In stock - FREE next working day delivery available*

2 available from Europe for delivery within 1 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£46.12

**price indicative

RS Stock No.:: 756-0007
Distrelec Article No.:: 110-29-262
Mfr. Part No.:: 02237094
Brand:: Bopla

Euromas Polycarbonate Enclosures

Introducing a range of polycarbonate enclosures from Bopla. The Euromas range is an excellent choice to house electronic and electrical components, made of polycarbonate and presented in a light grey colour (RAL7035). These general purpose enclosures are the ideal solution for all your enclosure protection both indoors and outdoors.

Why would you buy these enclosures?

The Euromas series is the ideal solution for contractors and engineers who require protection for sensitive electrical and electronic components both indoor and outdoor. Our range offers multiple sizes and a choice of IP ratings to suit your needs.

Features and Benefits

• Polycarbonate general purpose enclosures (UV stabilised)
• Multiple sizes available to meet your specification
• Neoprene gasket assures protection within the box
• Two lid choices: Grey or Transparent
• Wall mountable
• Can be equipped with mounting panels and a DIN Rail for fixing internal equipment
• Flammability rating: UL 94 V2
• Corrosion resistant
• Supplied with sunken head lid screws and mounting screws for fixing (Included)
• IP65 or IP66/ DIN EN 60529

Typical Applications

• Cable/Wire Management
• IT/Server
• Solar Power Batteries
• Oil and Gas Production
• Food and Beverage Industry
• Telecommunication Industry

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

PC UL94 V2

One of the most important features of UL94 V2 material is the safety attribute it offers for enclosures near fire and heat. The material classification specifies that the plastic material must be self-extinguishing up to 10 seconds after flame withdrawal and have a glow time no greater than 30 seconds. Also, according to the UL94 V2 classification, it is also imperative that no flaming drops are generated.

FAQ's

Can the enclosure be used outside?

General purpose enclosures with an IP65 rating are fully waterproof/weatherproof.

What is supplied?

Base and Lid with screws. Self-tapping screws for mounting plate/DIN-rail, cover with a Neoprene gasket.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bopla
	Body Material	Polycarbonate V0
	External Length	200 mm
	External Height	90 mm
	External Width	120 mm
	External Dimensions	200 x 120 x 90mm
	IP Rating	IP66
	Range	Euromas
	Colour	Light Grey
	Lid Colour	Light Grey
	Flanged	No
	Shielded	No
	Series	Euromas
	Weight	446g
	IK Rating	IK07
	Gasket Material	Polychloroprene
	RAL Code	RAL 7035

	Select all
	Brand Bopla
	Body Material Polycarbonate V0
	External Length 200 mm
	External Height 90 mm
	External Width 120 mm
	External Dimensions 200 x 120 x 90mm
	IP Rating IP66
	Range Euromas
	Colour Light Grey
	Lid Colour Light Grey
	Flanged No
	Shielded No
	Series Euromas
	Weight 446g
	IK Rating IK07
	Gasket Material Polychloroprene
	RAL Code RAL 7035
