Hammond 1591 Series Black ABS Enclosure, IP54, Flanged, Black Lid, 120 x 94 x 34mm
- RS Stock No.:
- 741-7461
- Mfr. Part No.:
- 1591GSBK
- Brand:
- Hammond
Subtotal (1 unit)*
£6.37
(exc. VAT)
£7.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £6.37 |
*price indicative
- RS Stock No.:
- 741-7461
- Mfr. Part No.:
- 1591GSBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hammond | |
Body Material | ABS | |
External Length | 120 mm | |
External Height | 34 mm | |
External Width | 94 mm | |
External Dimensions | 120 x 94 x 34mm | |
Range | 1591 | |
IP Rating | IP54 | |
Colour | Black | |
Lid Colour | Black | |
Flanged | Yes | |
Shielded | No | |
Series | 1591 | |
Number Of Knockouts | 0 | |
Transparent Door | No | |
Weight | 86g | |
RAL Code | RAL 9005 | |
Explosion Proof | No | |
Select all | ||
---|---|---|
Brand Hammond | ||
Body Material ABS | ||
External Length 120 mm | ||
External Height 34 mm | ||
External Width 94 mm | ||
External Dimensions 120 x 94 x 34mm | ||
Range 1591 | ||
IP Rating IP54 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged Yes | ||
Shielded No | ||
Series 1591 | ||
Number Of Knockouts 0 | ||
Transparent Door No | ||
Weight 86g | ||
RAL Code RAL 9005 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA

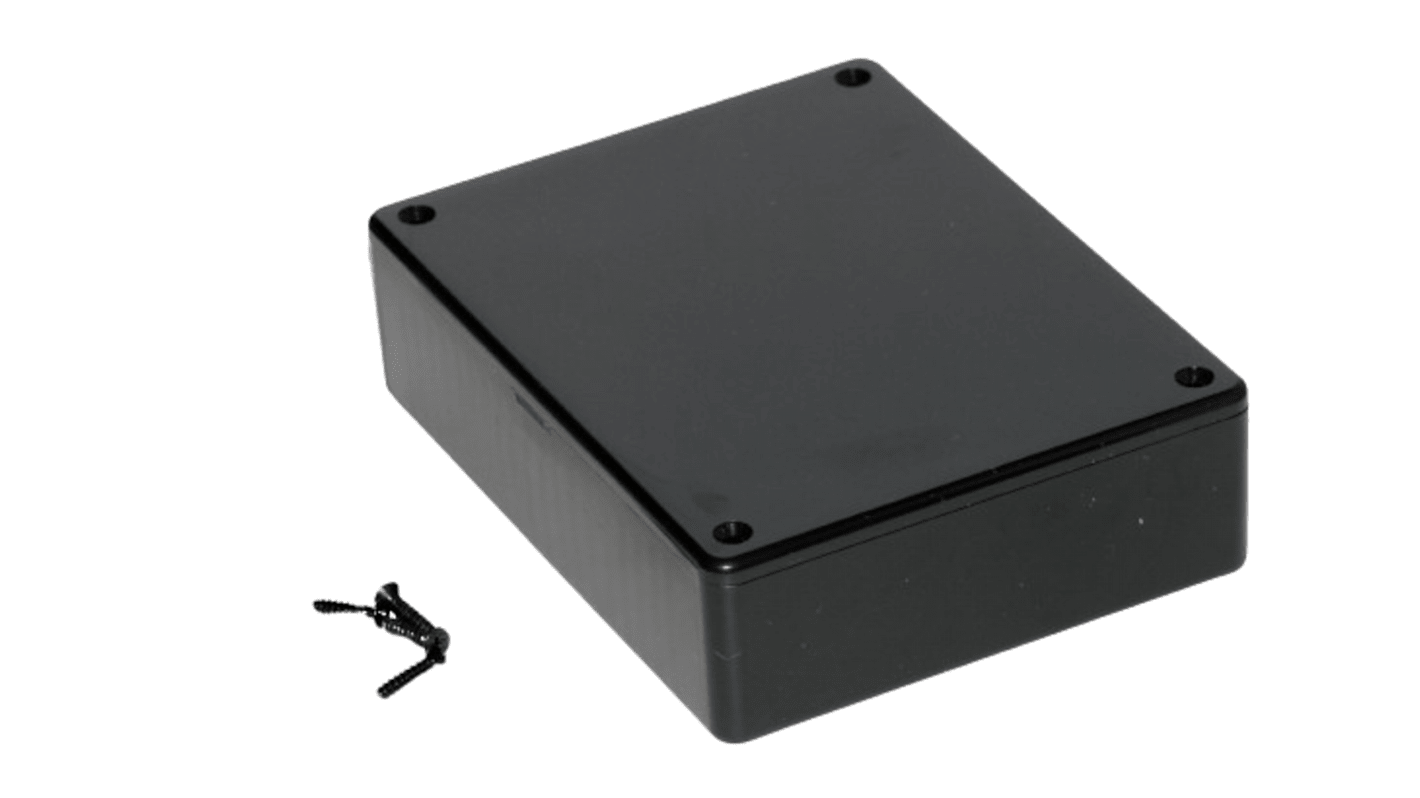

Hammond Enclosure, 122 (L) x 94 (W) x 34mm (H), Lap-Joint Construction, 90g Weight - 1591 Series - 1591GSBK
Keep your electrical components safely under wraps with this enclosure from Hammond. The lidded box is made from sturdy ABS that won't give in to mechanical stress and corrosion. This makes it suitable for applications involving rough handling or potential impact. Inside, you'll find integral card guides that allow proper spacing between 1.5mm PC cards, ensuring your printed circuit boards are correctly positioned. A light weight of 90g means it's easy to handle during installation and puts minimal strain on your mounting surface.
Features & Benefits
• Self-extinguishing material halts the spread of flames if a fire occurs
• IP54 rating shows it's protected from limited amounts of dust and water splashes from all directions
• Compact dimensions of 122 (L) x 94 (W) x 34mm (H) to fit into applications where there's no room to waste
• Black colour-matched screws for a neat appearance
• IP54 rating shows it's protected from limited amounts of dust and water splashes from all directions
• Compact dimensions of 122 (L) x 94 (W) x 34mm (H) to fit into applications where there's no room to waste
• Black colour-matched screws for a neat appearance
Applications
• Process and packaging equipment
• Research laboratories
• Solar power systems
• Research laboratories
• Solar power systems
What accessories are included with this enclosure?
Along with the box, you get a lid and four Phillips M3 screws, which is everything you need for immediate assembly.
