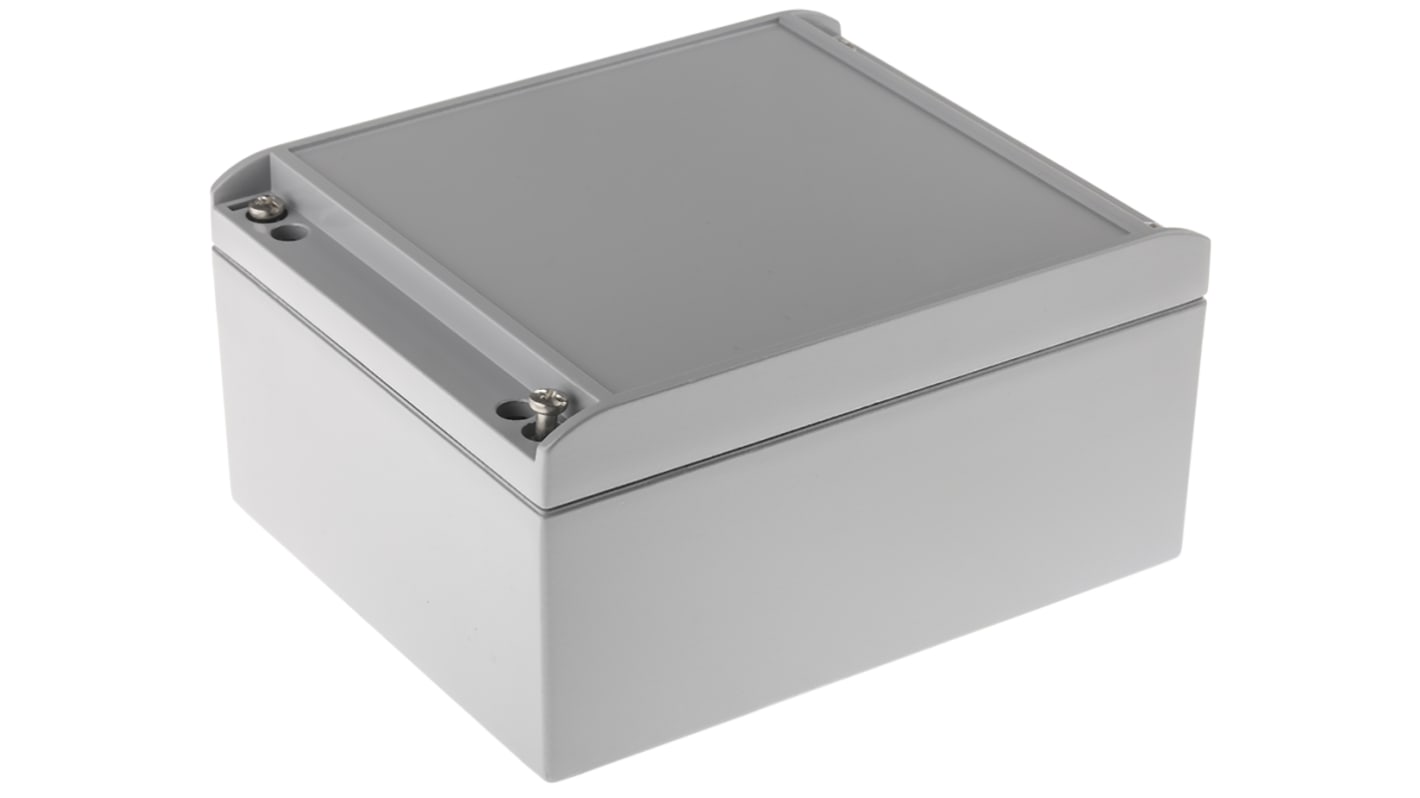

ROLEC AluCASE Series Grey Grey Lid Die Cast Aluminium Enclosure, IP67, 90 mm x 180 mm x 150 mm
- RS Stock No.:
- 509-5081
- Mfr. Part No.:
- 191.150.000
- Brand:
- ROLEC
Subtotal (1 unit)*
£138.00
(exc. VAT)
£165.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £138.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£54.64
(exc. VAT)
£65.57
(inc. VAT)
- RS Stock No.:
- 509-5081
- Mfr. Part No.:
- 191.150.000
- Brand:
- ROLEC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROLEC | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 90mm | |
| External Length | 180mm | |
| External Width | 150mm | |
| IP Rating | IP67 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Series | AluCASE | |
| Standards/Approvals | No | |
| Weight | 1.2kg | |
| Select all | ||
|---|---|---|
Brand ROLEC | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 90mm | ||
External Length 180mm | ||
External Width 150mm | ||
IP Rating IP67 | ||
Lid Colour Grey | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Series AluCASE | ||
Standards/Approvals No | ||
Weight 1.2kg | ||
- COO (Country of Origin):
- DE
AluCASE IP67 Die-cast Enclosure
IP67 die-cast enclosure
Recessed lid for membrane keypads or control panels
Screw ports for wall mounting even when the unit is assembled – no need for wall brackets
Clip-on trims hide the case and wall fixings
When open, the lid is retained by two straps (included)
Modern integrated hinge design with no visible fixings
Grey (RAL 7040), including plastic trims
