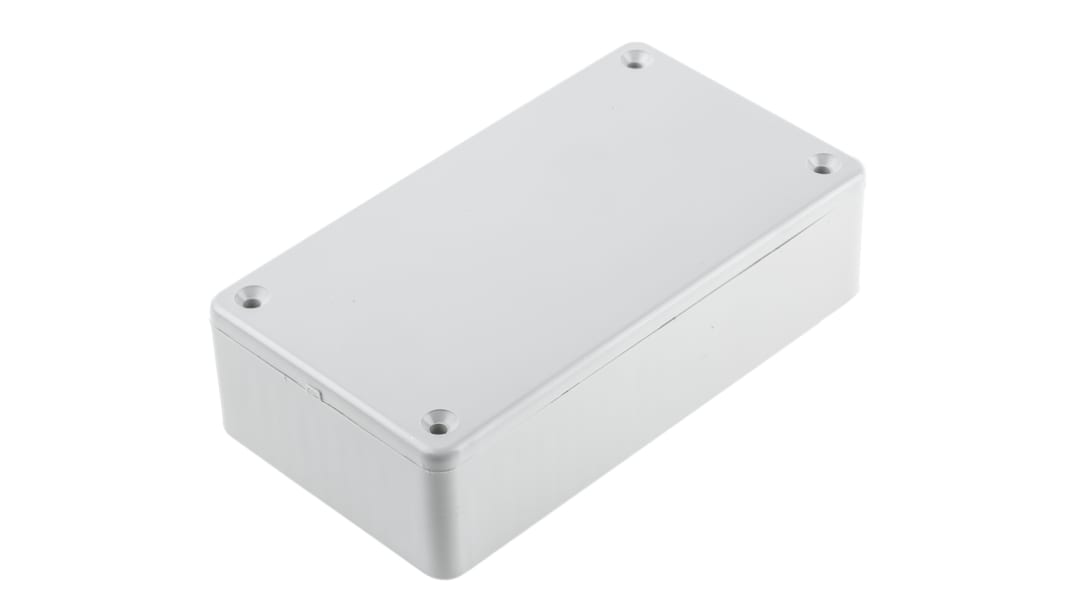

Hammond 1591 Series Grey Flame Retardant ABS Enclosure, IP54, Grey Lid, 112 x 62 x 31mm
- RS Stock No.:
- 493-6133
- Mfr. Part No.:
- 1591BGY
- Brand:
- Hammond
26 In stock - FREE next working day delivery available
Added
Price Each
£4.85
(exc. VAT)
£5.82
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £4.85 |
| 5 - 9 | £4.61 |
| 10 - 24 | £4.37 |
| 25 - 49 | £4.13 |
| 50 + | £3.88 |
- RS Stock No.:
- 493-6133
- Mfr. Part No.:
- 1591BGY
- Brand:
- Hammond
Legislation and Compliance
- COO (Country of Origin):
- CA
Product Details
Hammond 1591 Multi-purpose Plastic Enclosures
The Hammond 1591 series is a multi-purpose plastic enclosure ideally suited for mounting printed circuit boards (PCBs) horizontally. The internal sides of the enclosure are smooth for easy connector installation. Each enclosure has 2 PC board standoffs moulded into the interior and a lap joint construction which provides IP54 protection against the access of dust and splashing water. The Hammond 1591 series is perfect for applications where repetitive assembly and disassembly are required.
Features and Benefits:
• Two piece lap joint construction
• Provides protection against dust accumulation and splashing water
• Integral card guides accept 1.5mm PC cards
• Lid secured with M3 x 10 mm machine screws, threaded into plastic tapped holes
• Provides protection against dust accumulation and splashing water
• Integral card guides accept 1.5mm PC cards
• Lid secured with M3 x 10 mm machine screws, threaded into plastic tapped holes
FAQ:
What does IP mean?
The IP rating is used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture. For more information please, visit SELECTION section at the top of the page or click on Selection Guide of an Enclosures.
What is supplied?
What is Supplied?
This enclosure comes complete with 4 x M3x10mm Phillips screws
Note
• Dimensions do not include the lid and exclude flanges (add 4mm to height for the lid)
• Black enclosures include black screws, grey enclosures are standard nickel finish screws.
• Black enclosures include black screws, grey enclosures are standard nickel finish screws.
Approvals
Material Flamability Rating: UL94-V0
Specifications
Attribute | Value |
|---|---|
| Body Material | Flame Retardant ABS |
| External Length | 112 mm |
| External Height | 31 mm |
| External Width | 62 mm |
| External Dimensions | 112 x 62 x 31mm |
| IP Rating | IP54 |
| Range | 1591 |
| Colour | Grey |
| Lid Colour | Grey |
| Flanged | No |
| Shielded | No |
| Series | 1591 |
| Number Of Knockouts | 0 |
| Weight | 71g |
| Explosion Proof | No |
