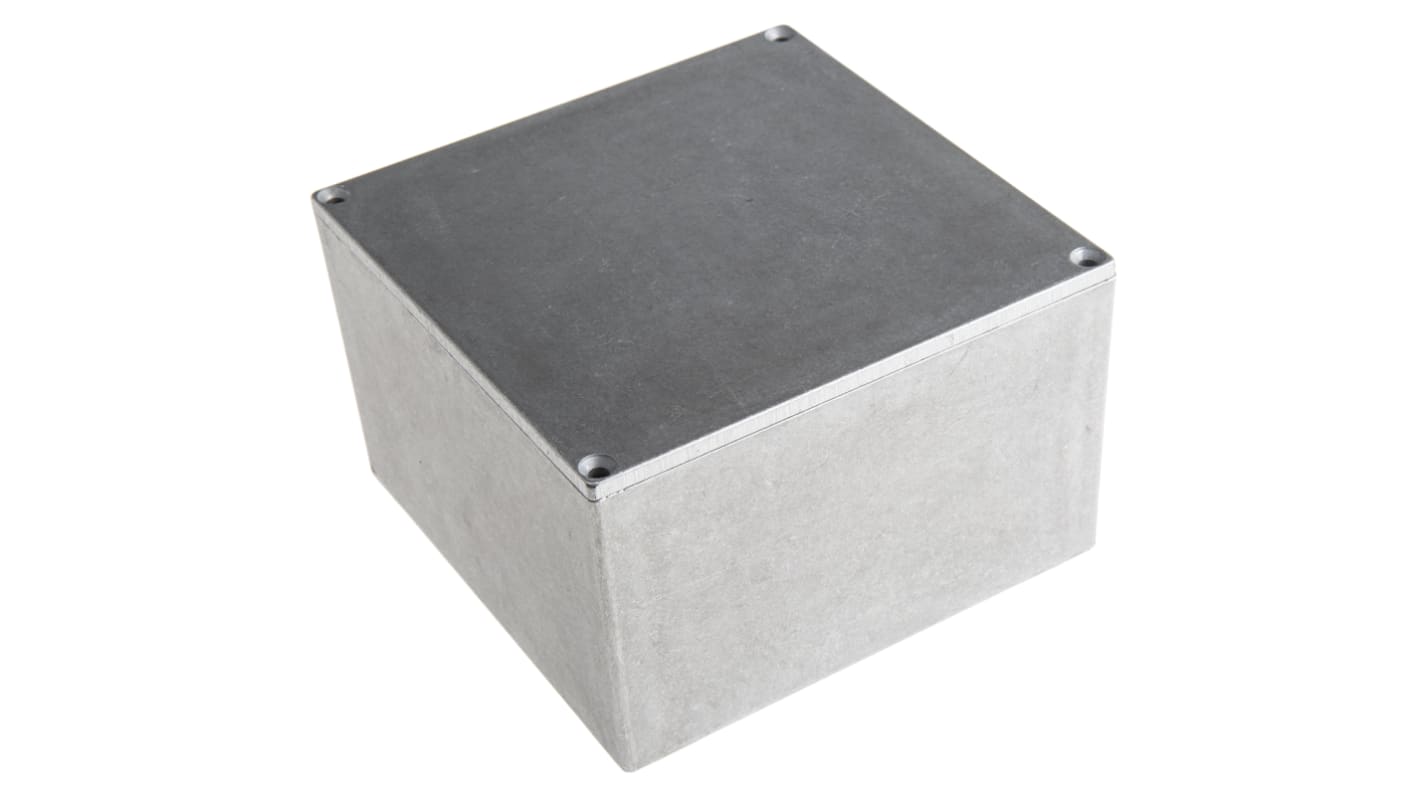

Hammond Eddystone Series Natural Die Cast Aluminium Enclosure, IP54, Natural Lid, 125 x 125 x 79mm
- RS Stock No.:
- 343-9934
- Distrelec Article No.:
- 150-05-574
- Mfr. Part No.:
- 11130PSLA
- Brand:
- Hammond
Subtotal (1 unit)*
£15.71
(exc. VAT)
£18.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 55 unit(s) ready to ship
- Plus 66 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.71 |
*price indicative
- RS Stock No.:
- 343-9934
- Distrelec Article No.:
- 150-05-574
- Mfr. Part No.:
- 11130PSLA
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | Die Cast Aluminium | |
| External Length | 125 mm | |
| External Height | 79 mm | |
| External Width | 125 mm | |
| External Dimensions | 125 x 125 x 79mm | |
| Range | Eddystone | |
| IP Rating | IP54 | |
| Colour | Natural | |
| Lid Colour | Natural | |
| Flanged | No | |
| Shielded | Yes | |
| Series | Eddystone | |
| Number Of Knockouts | 0 | |
| Transparent Door | No | |
| Weight | 440g | |
| Explosion Proof | No | |
| RAL Code | RAL 9006 | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material Die Cast Aluminium | ||
External Length 125 mm | ||
External Height 79 mm | ||
External Width 125 mm | ||
External Dimensions 125 x 125 x 79mm | ||
Range Eddystone | ||
IP Rating IP54 | ||
Colour Natural | ||
Lid Colour Natural | ||
Flanged No | ||
Shielded Yes | ||
Series Eddystone | ||
Number Of Knockouts 0 | ||
Transparent Door No | ||
Weight 440g | ||
Explosion Proof No | ||
RAL Code RAL 9006 | ||
- COO (Country of Origin):
- TW
Hammond Enclosure, 125 (L) x 125 (W) x 79mm (H), Die-Cast Aluminium, Natural Colour - Eddystone Series - 11130PSLA
Need to shield your delicate electronics from the elements? Pick this enclosure from Hammond to put them under cover. It's an impact-resistant unit that safeguards your equipment against the everyday bumps and bruises of industrial, commercial and domestic settings. The rugged die-cast aluminium construction stands up to corrosion in challenging environments. Thanks to its lap joint design, the box wards off contaminants and friction to keep your components working at their best.
Features & Benefits
• IP54 rating indicates resistance to water sprays for safe wash downs
• Compact size of 125 (L) x 125 (W) x 79mm (H) for installation in small spaces
• EMC properties shield electronics from electromagnetic interference
• Compact size of 125 (L) x 125 (W) x 79mm (H) for installation in small spaces
• EMC properties shield electronics from electromagnetic interference
Applications
• Telecommunications equipment
• IT hardware
• Industrial control panels
• Automotive industry
• Construction industry
• IT hardware
• Industrial control panels
• Automotive industry
• Construction industry
Is it easy to slot PCBs in this enclosure?
Yes, this unit is made with low side wall draft angles of 2° or less for the convenient mounting of PCBs.
Does it come with screws to fasten the lid?
Yes, the screws are included, so you won't have to rummage around for the right size.
