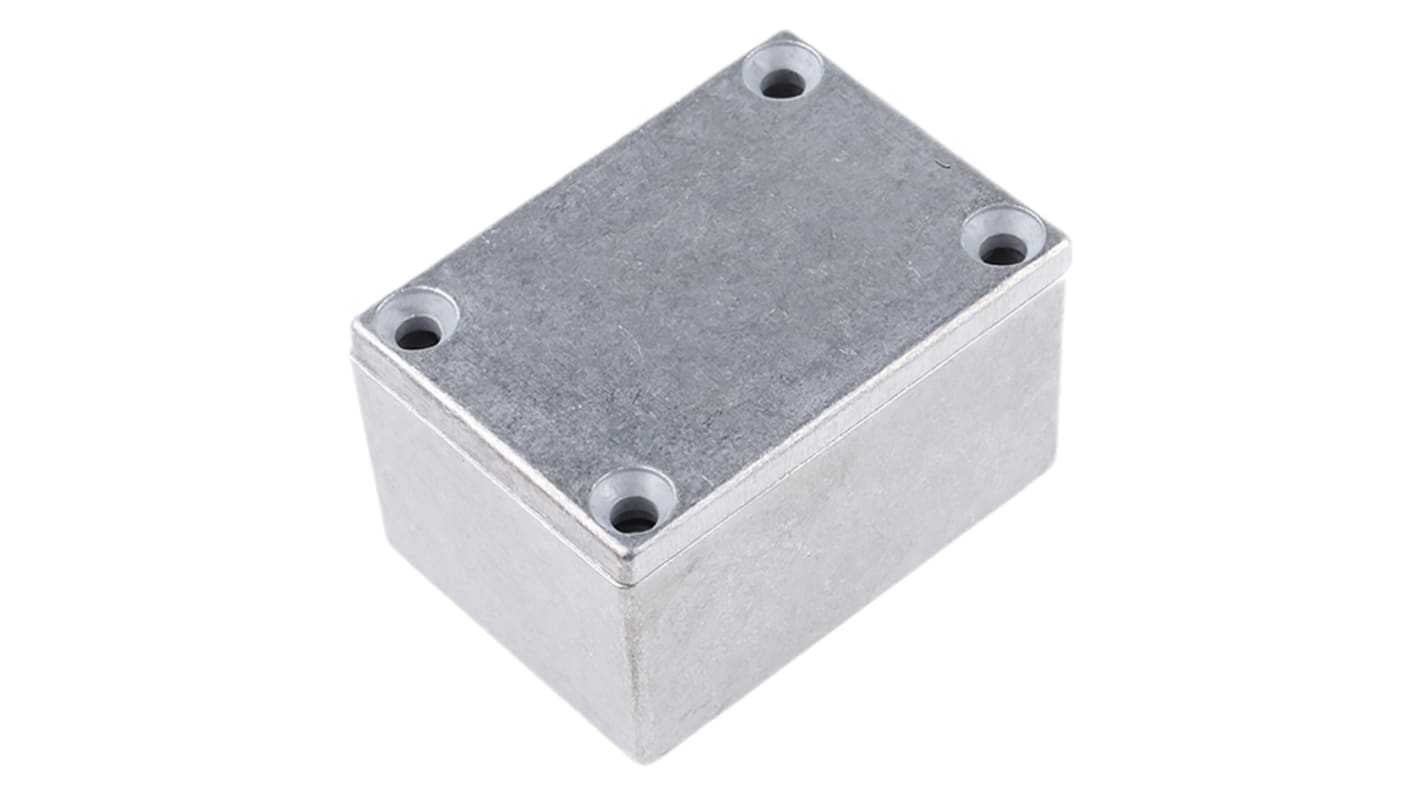

Hammond 1590 Series Natural Die Cast Aluminium Enclosure, IP54 31 mm, 52.5 mm, 38 mm
- RS Stock No.:
- 343-9502
- Mfr. Part No.:
- 1590H
- Brand:
- Hammond
Subtotal (1 unit)*
£7.68
(exc. VAT)
£9.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £7.68 |
*price indicative
- RS Stock No.:
- 343-9502
- Mfr. Part No.:
- 1590H
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 31mm | |
| External Length | 52.5mm | |
| External Width | 38mm | |
| IP Rating | IP54 | |
| Colour | Natural | |
| Lid Colour | Natural | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Shielding | Shielded | |
| Series | 1590 | |
| Standards/Approvals | RoHS | |
| Weight | 56g | |
| Transparent Door | No | |
| Gasket Material | Silicon | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 31mm | ||
External Length 52.5mm | ||
External Width 38mm | ||
IP Rating IP54 | ||
Colour Natural | ||
Lid Colour Natural | ||
Flanged No | ||
Hazardous Area Certification No | ||
Shielding Shielded | ||
Series 1590 | ||
Standards/Approvals RoHS | ||
Weight 56g | ||
Transparent Door No | ||
Gasket Material Silicon | ||
Explosion Proof No | ||
Hammond Enclosure, 53 (L) x 38 (W) x 31 mm (H), Aluminium Construction, Shielded - 1590 Series - 1590H
Use this compact enclosure from Hammond to ensure small things come in good packages. Its dimensions of 53 (L) x 38 (W) x 31mm (H) make it handy for housing control devices, switches and bus modules. The lap-joint design boosts EMI and RFI shielding to help instruments and automation systems work without interference. This clever construction also helps the enclosure achieve an IP54 rating, so you can be sure dust and water splashes are kept out and tiny electronics get the protection they need.
Features & Benefits
• Screw-down lid keeps your components secure inside
• Light weight of 50g means it's easy to mount on posts, walls and machines
• Factory-tapped holes cut out the need for fiddly machining
• Low wall draft to neatly accommodate small-scale PCBs up to 47.63mm in length
• Vibra finish and rounded corners achieve a smooth surface that's free from sharp edges
Applications
• Electronics manufacturing
• Machine building
• Factory electrics
• Telecommunications hubs
How durable is this enclosure?
This enclosure is made from die-cast aluminium to ensure it's robust and resistant to corrosion and oxidisation. This means it's well-suited to moist and humid environments.
