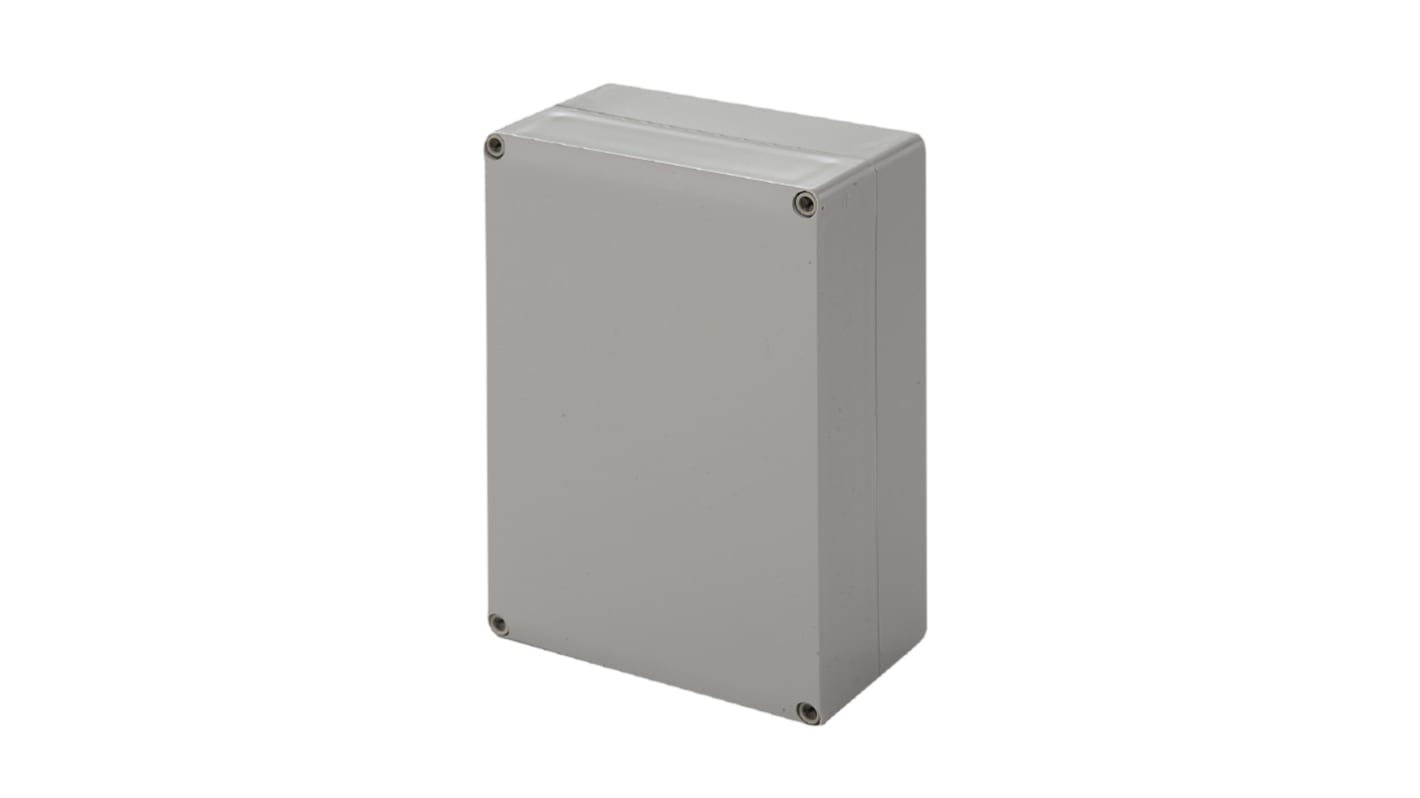

Weidmüller MPC Series Grey Polycarbonate Enclosure, IP67, IP66, IK08 175 mm, 250 mm, 100 mm
- RS Stock No.:
- 287-5566
- Distrelec Article No.:
- 303-23-846
- Mfr. Part No.:
- 9535470000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£43.73
(exc. VAT)
£52.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.73 |
*price indicative
- RS Stock No.:
- 287-5566
- Distrelec Article No.:
- 303-23-846
- Mfr. Part No.:
- 9535470000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate | |
| External Height | 175mm | |
| External Width | 100mm | |
| External Length | 250mm | |
| IP Rating | IP67, IP66 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Series | MPC | |
| Standards/Approvals | EN 62208, EN 60529, RoHS, IEC 60529, EN/IEC 61439-2 | |
| Weight | 754g | |
| IK Rating | IK08 | |
| Gasket Material | Polyurethane | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Enclosure | ||
Body Material Polycarbonate | ||
External Height 175mm | ||
External Width 100mm | ||
External Length 250mm | ||
IP Rating IP67, IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged No | ||
Hazardous Area Certification No | ||
Series MPC | ||
Standards/Approvals EN 62208, EN 60529, RoHS, IEC 60529, EN/IEC 61439-2 | ||
Weight 754g | ||
IK Rating IK08 | ||
Gasket Material Polyurethane | ||
RoHS Status: Exempt
The Weidmuller small and medium-sized polycarbonate enclosures of the MPC series are ideal for building into electrical, electromechanical and pneumatic devices as well as PCBs. The enclosures are used in situations with extreme mechanical and chemical co
Grey or transparent cover
Cover with lead-seal holes
Mounting holes outside the seal area
Receptacle threads for rail mounting, mounting plates and circuit board
