Hammond RZ Series Light Grey, Off-White ABS Enclosure, IP65 55 mm, 222 mm, 146 mm

View all General Purpose Enclosures

Subtotal (1 unit)*

£27.21

(exc. VAT)

£32.65

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£27.21

*price indicative

RS Stock No.:
265-7259
Mfr. Part No.:
RZ0317C
Brand:
Hammond
Find similar products by selecting one or more attributes.
Select all

Brand

Hammond

Body Material

ABS

Product Type

Enclosure

External Height

55mm

External Width

146mm

External Length

222mm

IP Rating

IP65

Colour

Light Grey, Off-White

Hazardous Area Certification

No

Series

RZ

Mounting plate

Yes

Standards/Approvals

UL94-V2, UL94 HB

Gasket Material

Ethylene Propylene Diene Monomer

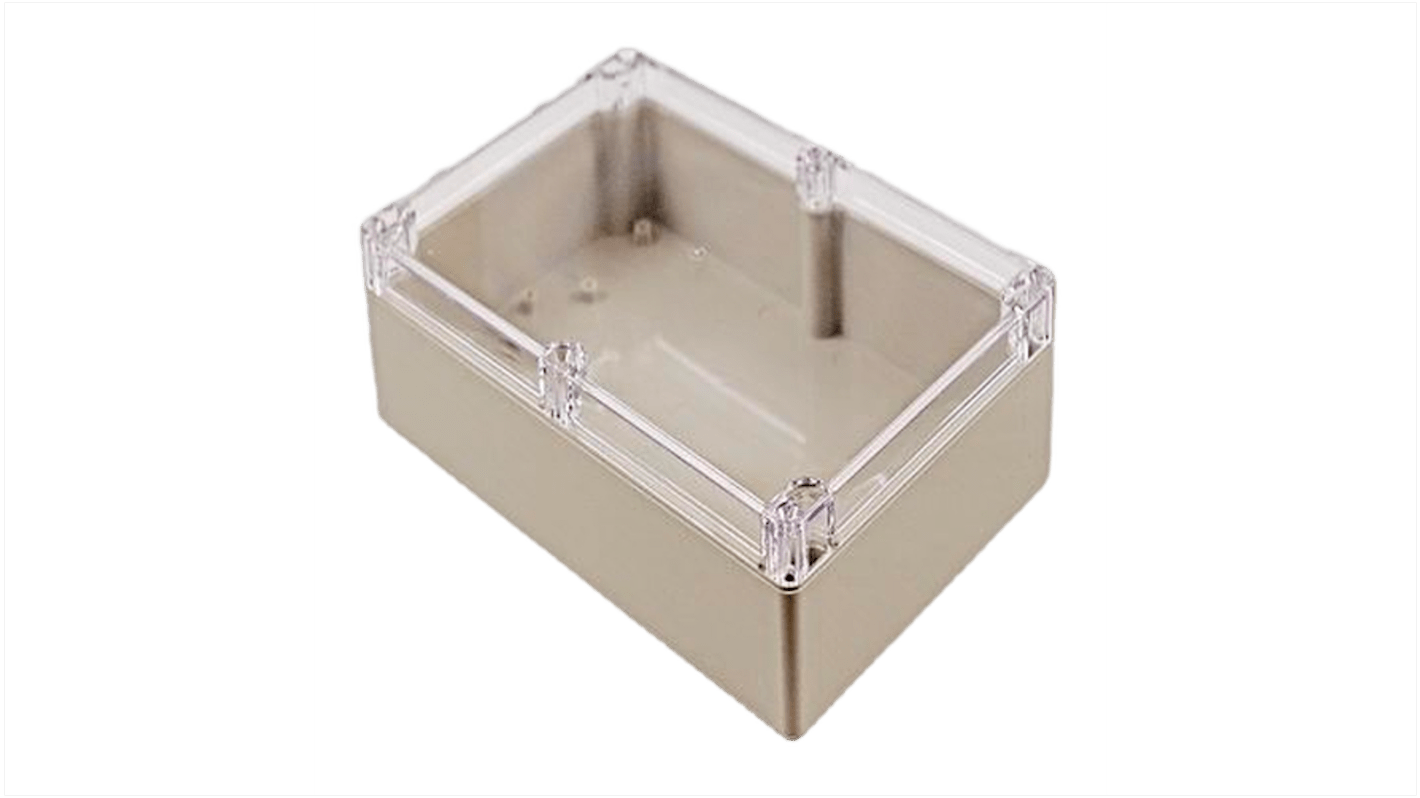

The Hammond RZ series ritec enclosure ABS clear lid ideally suited for mounting printed circuit boards or DIN rail mounted components. Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water. Easy to wall-mount using "through box-blind hole construction" whereby the wall-mounting holes are outside the gasket perimeter.

Material - ABS plastic

Color - Beige

Suggested for indoor use

UL Flammability rating of UL94-HB

Temperature of -30 degrees C to +80 degrees C
