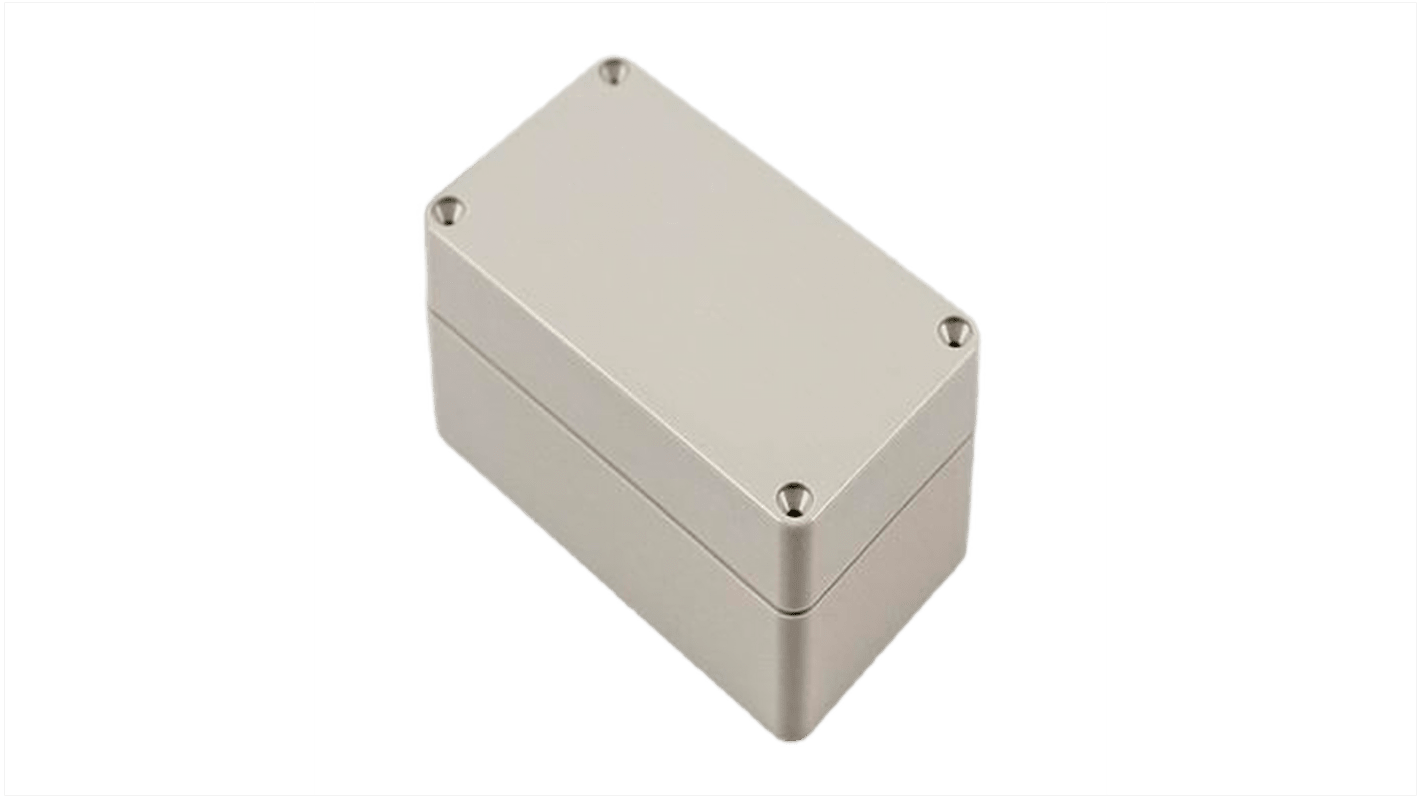

Hammond RZ Series Light Grey, Off-White ABS Enclosure, IP65 40 mm, 115 mm, 65 mm
- RS Stock No.:
- 265-7249
- Distrelec Article No.:
- 301-48-605
- Mfr. Part No.:
- RZ0304
- Brand:
- Hammond
Subtotal (1 unit)*
£9.81
(exc. VAT)
£11.77
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.81 |
*price indicative
- RS Stock No.:
- 265-7249
- Distrelec Article No.:
- 301-48-605
- Mfr. Part No.:
- RZ0304
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS | |
| Product Type | Enclosure | |
| External Height | 40mm | |
| External Width | 65mm | |
| External Length | 115mm | |
| IP Rating | IP65 | |
| Colour | Light Grey, Off-White | |
| Hazardous Area Certification | No | |
| Series | RZ | |
| Mounting plate | Yes | |
| Standards/Approvals | UL94 HB, UL94-V2 | |
| Transparent Door | Yes | |
| Gasket Material | Ethylene Propylene Diene Monomer | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS | ||
Product Type Enclosure | ||
External Height 40mm | ||
External Width 65mm | ||
External Length 115mm | ||
IP Rating IP65 | ||
Colour Light Grey, Off-White | ||
Hazardous Area Certification No | ||
Series RZ | ||
Mounting plate Yes | ||
Standards/Approvals UL94 HB, UL94-V2 | ||
Transparent Door Yes | ||
Gasket Material Ethylene Propylene Diene Monomer | ||
The Hammond RZ series ritec enclosure ABS ideally suited for mounting printed circuit boards or DIN rail mounted components. Gasketed lid with two-piece tongue & groove construction provides protection against access of oil, dust, and water. Easy to wall-mount using "through box-blind hole construction" whereby the wall-mounting holes are outside the gasket perimeter.
Material - ABS plastic
Color - Beige
Suggested for indoor use
UL Flammability rating of UL94-HB
Temperature of -30 degrees C to +80 degrees C
