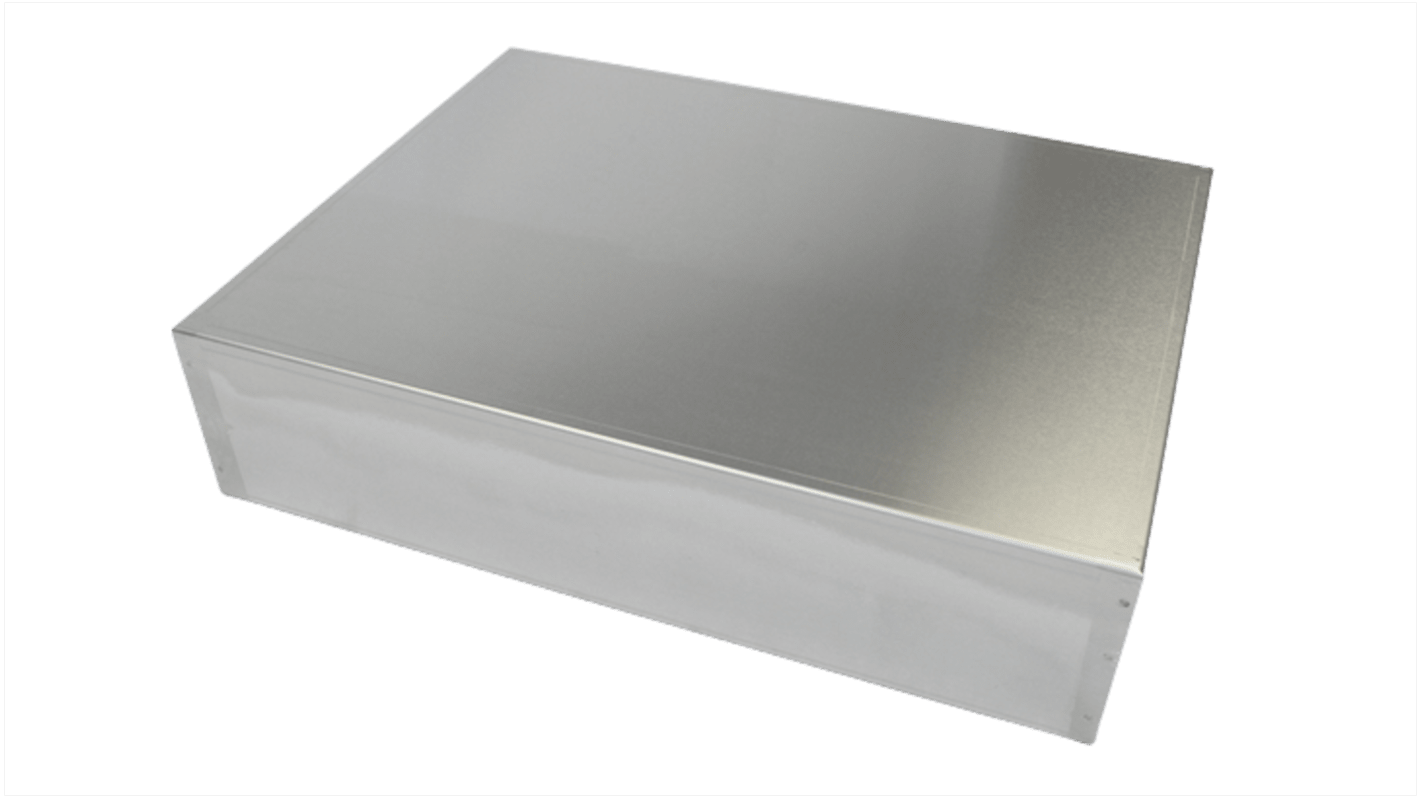

Hammond Aluminium General Purpose Enclosure, 17 x 13 x 4in
- RS Stock No.:
- 256-6249
- Mfr. Part No.:
- 1444-17134
- Brand:
- Hammond
Subtotal (1 unit)*
£71.67
(exc. VAT)
£86.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £71.67 |
*price indicative
- RS Stock No.:
- 256-6249
- Mfr. Part No.:
- 1444-17134
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hammond | |
Body Material | Aluminium | |
External Length | 101.6 mm | |
External Height | 431.8 mm | |
External Width | 330.2 mm | |
External Dimensions | 17 x 13 x 4in | |
Range | 1444 | |
Select all | ||
---|---|---|
Brand Hammond | ||
Body Material Aluminium | ||
External Length 101.6 mm | ||
External Height 431.8 mm | ||
External Width 330.2 mm | ||
External Dimensions 17 x 13 x 4in | ||
Range 1444 | ||
- COO (Country of Origin):
- CA
The Hammond 1444 series spot welded heavy duty construction chassis has natural aluminium finish. Side panels are made from solid walnut and routed out to fit over ends of chassis. Walnut side panels attach with four machine screws & lock washers (included) into metal inserts to avoid wood damage. Screws should not be torqued past 4.43 lbf.in ( 50 cN.m).
Usable surface of chassis front, back and top are reduced by roughly 7/8 (22 mm) due to inset in walnut sides
Optional bottom plates are punched with 4 holes – 3/16 diameter
Optional bottom plates are punched with 4 holes – 3/16 diameter
