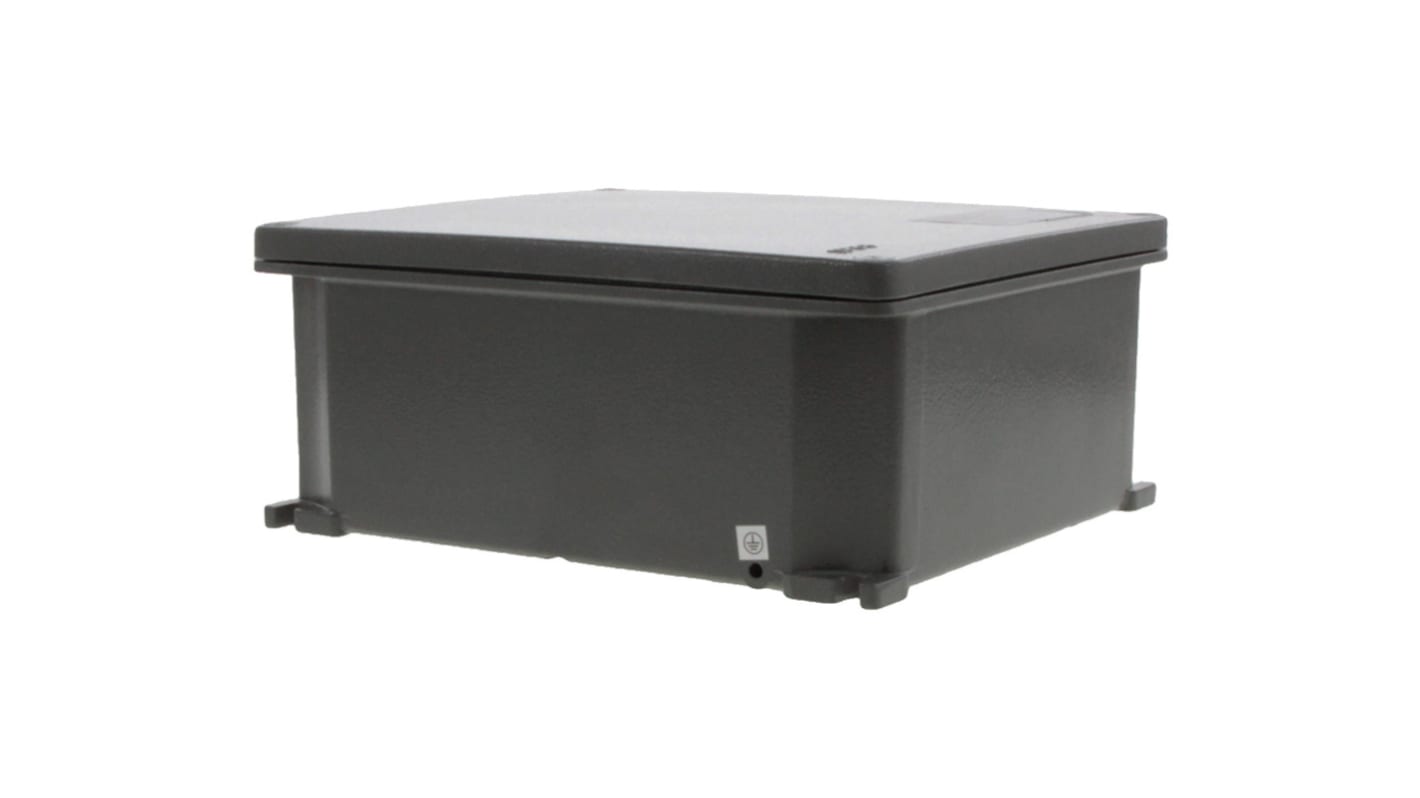

Molex Flanged 93604 Series Grey RAL 7037 Grey Lid Die Cast Aluminium Enclosure, IP66 80 mm, 189 mm, 167 mm
- RS Stock No.:
- 250-2145
- Mfr. Part No.:
- 936040070
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£69.90
(exc. VAT)
£83.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £69.90 |
| 10 - 24 | £67.66 |
| 25 - 49 | £66.54 |
| 50 + | £64.29 |
*price indicative
- RS Stock No.:
- 250-2145
- Mfr. Part No.:
- 936040070
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Body Material | Die Cast Aluminium | |
| Product Type | Enclosure | |
| External Height | 80mm | |
| External Width | 167mm | |
| External Length | 189mm | |
| IP Rating | IP66 | |
| Colour | Grey RAL 7037 | |
| Lid Colour | Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | ATEX | |
| Series | 93604 | |
| Mounting plate | Yes | |
| Standards/Approvals | EN 60670-1, EN-60670-22, EN 62208, NMX-J235/1-2, ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2 | |
| Weight | 848g | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Body Material Die Cast Aluminium | ||
Product Type Enclosure | ||
External Height 80mm | ||
External Width 167mm | ||
External Length 189mm | ||
IP Rating IP66 | ||
Colour Grey RAL 7037 | ||
Lid Colour Grey | ||
Flanged Yes | ||
Hazardous Area Certification ATEX | ||
Series 93604 | ||
Mounting plate Yes | ||
Standards/Approvals EN 60670-1, EN-60670-22, EN 62208, NMX-J235/1-2, ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2 | ||
Weight 848g | ||
- COO (Country of Origin):
- CN
The Molex enclosure is comprised of die-cast aluminium alloy with polyester powder finish.
Operating temperature range -40°C to +125°C
With external mounting flange
Sandblasted
