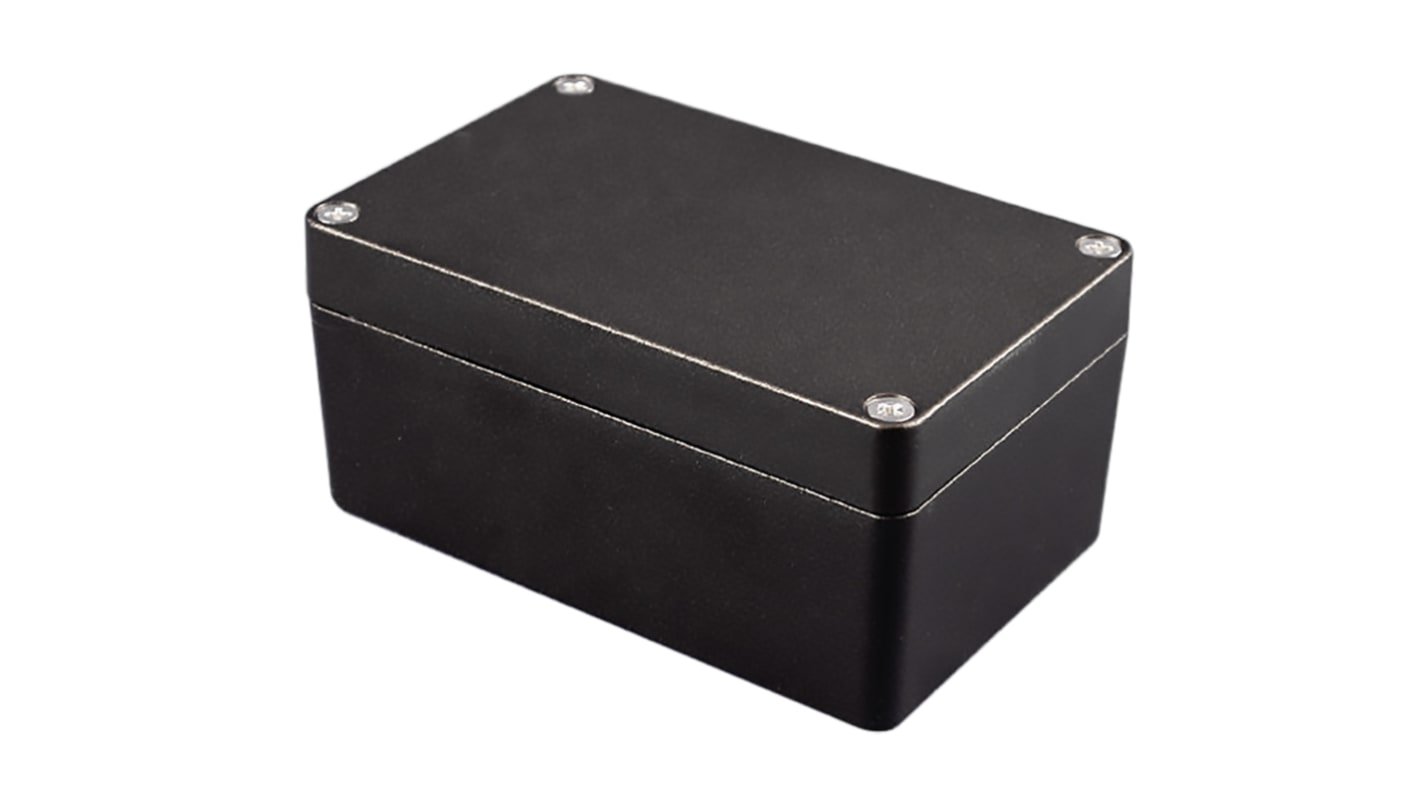

Hammond 1550Z Series Black, Unpainted Aluminium Enclosure, IP66, IK08 50 mm, 115.3 mm, 65.5 mm
- RS Stock No.:
- 230-6441
- Mfr. Part No.:
- 1550Z111BK
- Brand:
- Hammond
Subtotal (1 unit)*
£19.79
(exc. VAT)
£23.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.79 |
*price indicative
- RS Stock No.:
- 230-6441
- Mfr. Part No.:
- 1550Z111BK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Aluminium | |
| External Height | 50mm | |
| Ventilated | No | |
| External Length | 115.3mm | |
| External Width | 65.5mm | |
| IP Rating | IP66 | |
| Colour | Black, Unpainted | |
| Hazardous Area Certification | cUL, UL | |
| Mounting plate | Yes | |
| Series | 1550Z | |
| Standards/Approvals | REACH | |
| IK Rating | IK08 | |
| Gasket Material | One Piece Silicone Rubber | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Aluminium | ||
External Height 50mm | ||
Ventilated No | ||
External Length 115.3mm | ||
External Width 65.5mm | ||
IP Rating IP66 | ||
Colour Black, Unpainted | ||
Hazardous Area Certification cUL, UL | ||
Mounting plate Yes | ||
Series 1550Z | ||
Standards/Approvals REACH | ||
IK Rating IK08 | ||
Gasket Material One Piece Silicone Rubber | ||
The Hammond 1550Z series of electronic instrument enclosures from Hammond are made from a rugged, die cast aluminium alloy and also provides an improved EMI/RFI shielding. The 1550Z series offers a lap joint construction that protects against access of dust and splashing water.
Very economical - thick wall - die cast aluminium - watertight electronic instrument enclosure
Rugged, die cast aluminium alloy (tough - yet easy to machine)
Two piece “tongue & groove” construction for protection against access of dust and water
Ideal for repetitive opening and closing
