Hammond 1457 Series Black, Clear Anodised Aluminium Enclosure, IP65 43.9 mm, 160 mm, 83.8 mm
- RS Stock No.:
- 230-6382
- Distrelec Article No.:
- 302-64-590
- Mfr. Part No.:
- 1457K1601BK
- Brand:
- Hammond
Subtotal (1 unit)*
£34.41
(exc. VAT)
£41.29
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.41 |
*price indicative
- RS Stock No.:
- 230-6382
- Distrelec Article No.:
- 302-64-590
- Mfr. Part No.:
- 1457K1601BK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Aluminium | |
| External Height | 43.9mm | |
| External Length | 160mm | |
| External Width | 83.8mm | |
| IP Rating | IP65 | |
| Lid Colour | Black | |
| Colour | Black, Clear Anodised | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Internal Mount Type | Horizontal | |
| Series | 1457 | |
| Standards/Approvals | REACH | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Aluminium | ||
External Height 43.9mm | ||
External Length 160mm | ||
External Width 83.8mm | ||
IP Rating IP65 | ||
Lid Colour Black | ||
Colour Black, Clear Anodised | ||
Flanged No | ||
Hazardous Area Certification No | ||
Internal Mount Type Horizontal | ||
Series 1457 | ||
Standards/Approvals REACH | ||

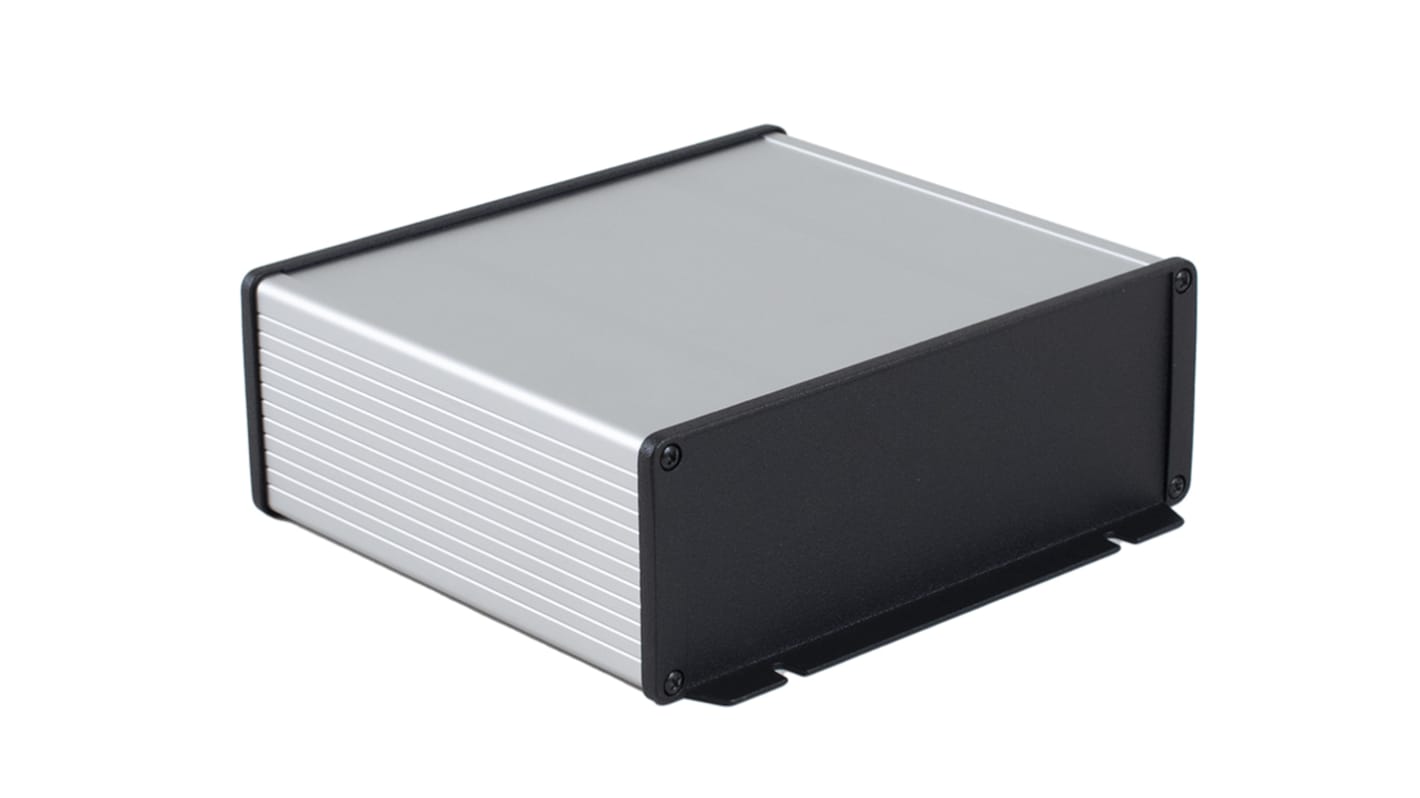

The Hammond 1457 series enclosure-IP has an extruded aluminium body and two die cast aluminium end panels with integral bezel. These enclosures are designed for equipment interfacing or to house PCBs and heavy duty, wall-mounting option.
Watertight - heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing
Sized for standard Eurocard's
P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
Rugged body constructed from one piece, extruded aluminium with a minimum thickness of .06” (1.5 mm)
Extruded aluminium body includes a recessed area for labels or membrane keypad
End panels are rugged - yet easy to machine - die cast aluminium with full perimeter self-adhesive gaskets
Designed to meet IP65
Choice of two versions - end panels without flange or with flange (for shelf or wall mounting)
