Hammond Flanged 1455-HD Series Black, Clear Extruded Aluminium Enclosure 60.76 mm, 160.00 mm, 111.00 mm
- RS Stock No.:
- 230-6367
- Mfr. Part No.:
- 1455NHD1601
- Brand:
- Hammond
Subtotal (1 unit)*
£45.16
(exc. VAT)
£54.19
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £45.16 |
*price indicative
- RS Stock No.:
- 230-6367
- Mfr. Part No.:
- 1455NHD1601
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | Extruded Aluminium | |
| External Height | 60.76mm | |
| External Length | 160.00mm | |
| External Width | 111.00mm | |
| Ventilated | Yes | |
| Colour | Black, Clear | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Series | 1455-HD | |
| Internal Mount Type | Horizontal | |
| Mounting plate | Yes | |
| Standards/Approvals | REACH | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material Extruded Aluminium | ||
External Height 60.76mm | ||
External Length 160.00mm | ||
External Width 111.00mm | ||
Ventilated Yes | ||
Colour Black, Clear | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Series 1455-HD | ||
Internal Mount Type Horizontal | ||
Mounting plate Yes | ||
Standards/Approvals REACH | ||
- COO (Country of Origin):
- CA

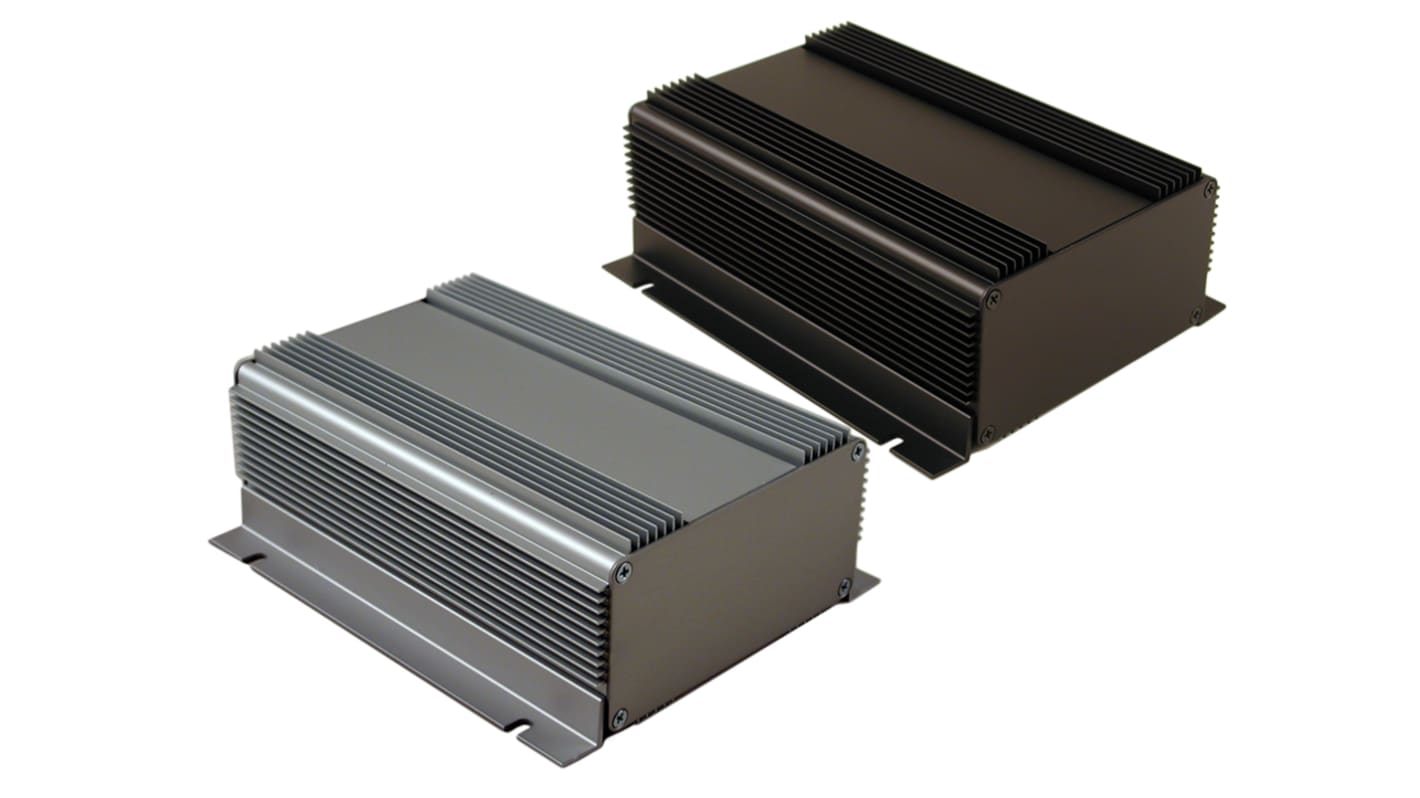

The Hammond 1455 series extruded enclosure heat dissipative has an extruded aluminium body and two metal end panels. These enclosures are designed to house P.C. boards or for equipment interfacing.
Designed to house P.C. boards or equipment.
Easy wall mounting or shelf mounting with two removable flanges
Sized for standard Eurocard P.C. boards
P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body
Two piece body - with easily removable belly plate for easy access to top interior of enclosure
Extruded body & aluminium endplates with a choice of either clear or black anodized finish
Includes eight (8) assembly screws - either clear or black assembly screws to match enclosure panels & body. NOTE: Recommended screw torque is 5 lbf.in (56.5 cN.m)
