Hammond 1591XX Series Grey, Black, Transparent Blue ABS Enclosure, IP54 Flanged 56 mm, 122 mm, 81 mm
- RS Stock No.:
- 229-1665
- Distrelec Article No.:
- 300-34-182
- Mfr. Part No.:
- 1591XXTSBK
- Brand:
- Hammond
Subtotal (1 unit)*
£6.73
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.73 |
*price indicative
- RS Stock No.:
- 229-1665
- Distrelec Article No.:
- 300-34-182
- Mfr. Part No.:
- 1591XXTSBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | ABS | |
| External Height | 56mm | |
| External Width | 81mm | |
| External Length | 122mm | |
| IP Rating | IP54 | |
| Colour | Grey, Black, Transparent Blue | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Series | 1591XX | |
| Internal Mount Type | PCB | |
| Standards/Approvals | RoHS | |
| Transparent Door | Yes | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material ABS | ||
External Height 56mm | ||
External Width 81mm | ||
External Length 122mm | ||
IP Rating IP54 | ||
Colour Grey, Black, Transparent Blue | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Series 1591XX | ||
Internal Mount Type PCB | ||
Standards/Approvals RoHS | ||
Transparent Door Yes | ||
- COO (Country of Origin):
- US

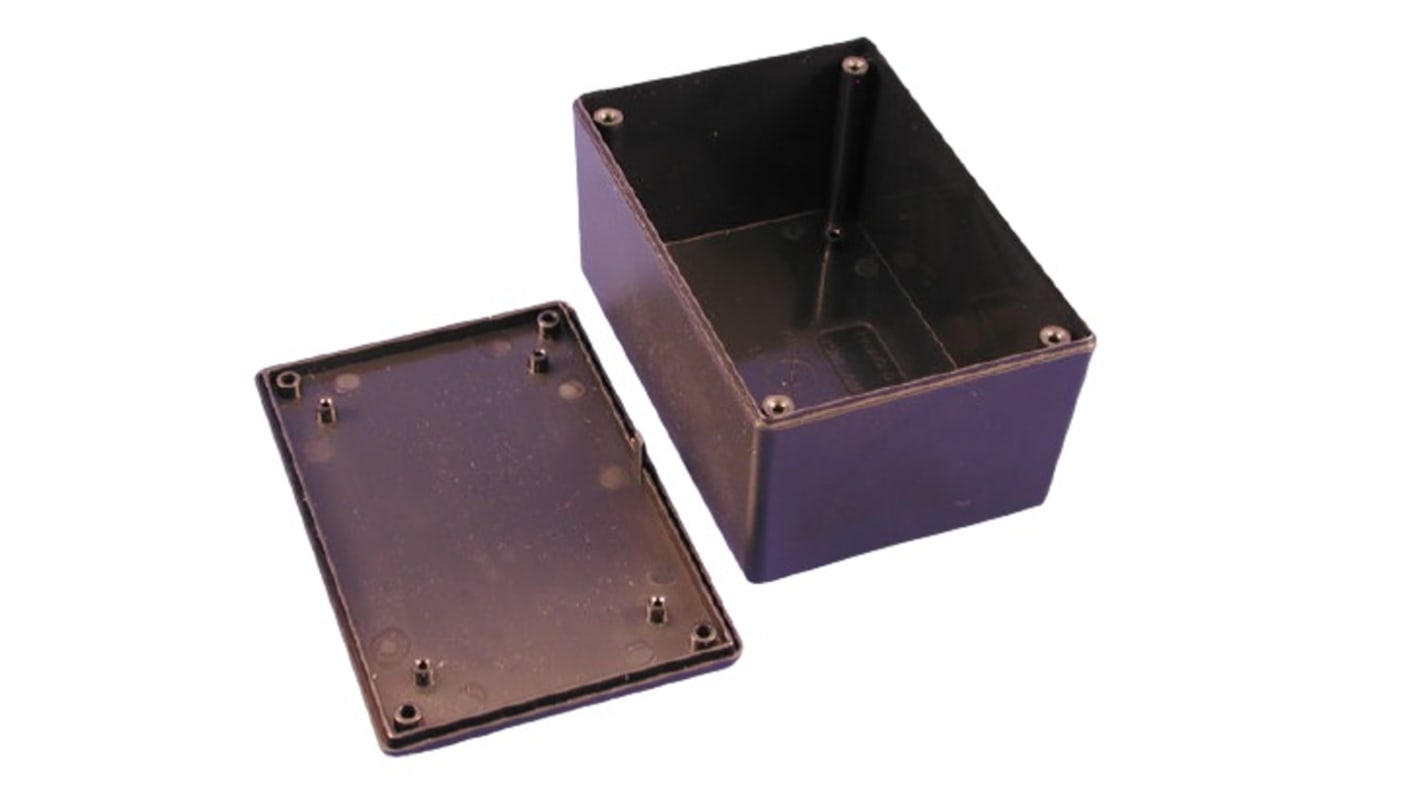

The Hammond multi-purpose enclosure is ideally suited for mounting printed circuit boards horizontally. Internal sides of enclosure are smooth for easy connector installation. Strong tongue and groove lid to box construction provides protection against access of dust and splashing water. It comes with self tapping screws. It is black in colour and has 122 x 81 x 56 mm dimensions.
It has IP54 protection
It has UL94 V-0 flammability rating
