Hammond Flanged 1591 Series Beige, Black, Blue, Grey ABS Plastic Enclosure, IP54 40 mm, 120 mm, 65 mm
- RS Stock No.:
- 229-1643
- Mfr. Part No.:
- 1591CF2SGY
- Brand:
- Hammond
Subtotal (1 unit)*
£8.39
(exc. VAT)
£10.07
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.39 |
*price indicative
- RS Stock No.:
- 229-1643
- Mfr. Part No.:
- 1591CF2SGY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | ABS Plastic | |
| External Height | 40mm | |
| External Width | 65mm | |
| External Length | 120mm | |
| IP Rating | IP54 | |
| Colour | Beige, Black, Blue, Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Shielding | Shielded | |
| Internal Mount Type | Vertical | |
| Series | 1591 | |
| Standards/Approvals | RoHS | |
| Transparent Door | Yes | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material ABS Plastic | ||
External Height 40mm | ||
External Width 65mm | ||
External Length 120mm | ||
IP Rating IP54 | ||
Colour Beige, Black, Blue, Grey | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Shielding Shielded | ||
Internal Mount Type Vertical | ||
Series 1591 | ||
Standards/Approvals RoHS | ||
Transparent Door Yes | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA

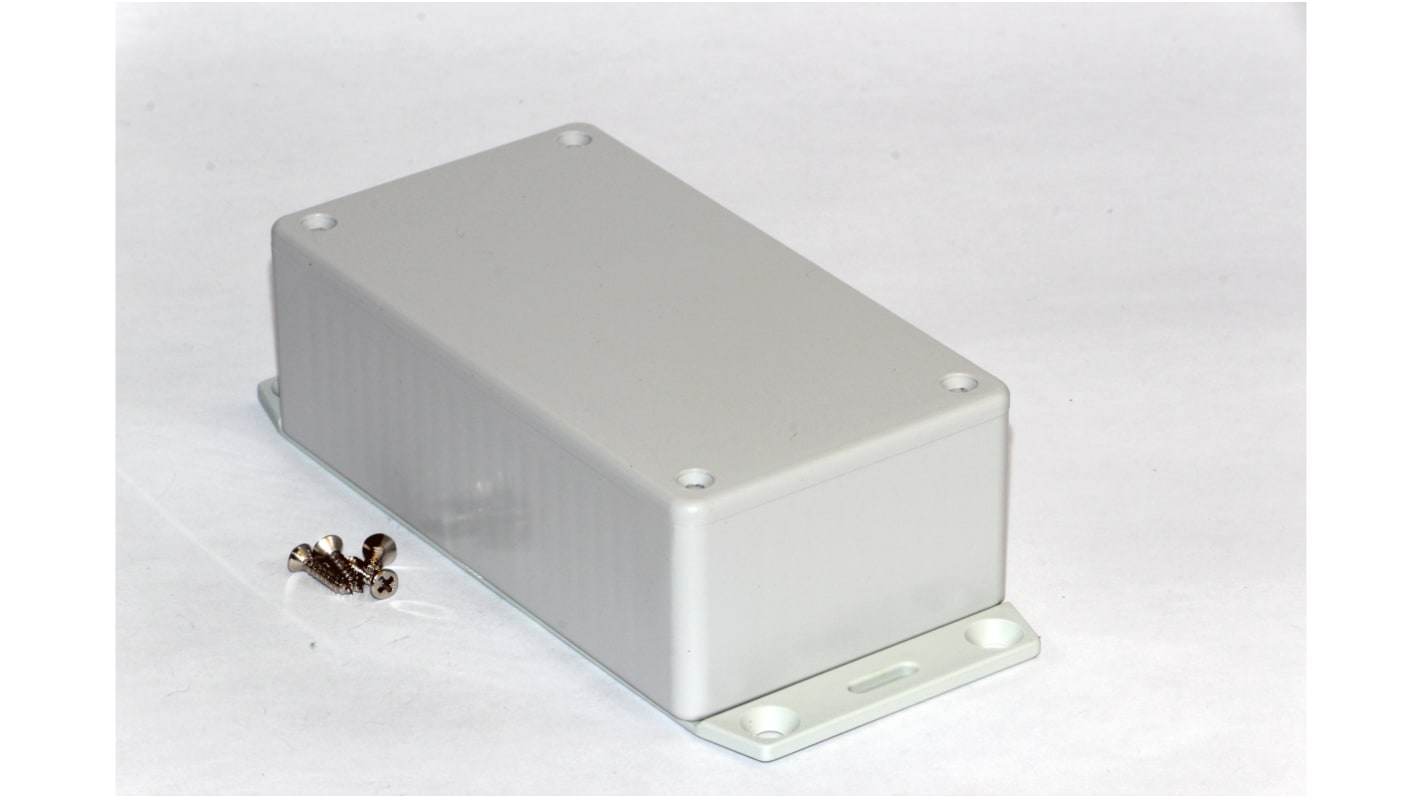

The Hammond multipurpose enclosure with mounting flange is Ideally suited for vertical mounting of printed circuit boards (internal side walls include moulded in card guides). Integral card guides accept 1.5 mm (0.062 in) P.C. cards. Lap joint construction provides protection against access of dust and splashing water. Its lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required. It is light grey in colour and has 120 x 65 x 40 dimensions.
It has IP54 protection
It has UL94 HB flammability rating
