Hammond 1551SNAP Series Black, Grey, White Plastic General Purpose Enclosure, IP30 20 mm, 60 mm, 60 mm
- RS Stock No.:
- 228-7820
- Distrelec Article No.:
- 302-21-855
- Mfr. Part No.:
- 1551SNAP3WH
- Brand:
- Hammond
Subtotal (1 unit)*
£2.45
(exc. VAT)
£2.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
- Plus 223 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.45 |
*price indicative
- RS Stock No.:
- 228-7820
- Distrelec Article No.:
- 302-21-855
- Mfr. Part No.:
- 1551SNAP3WH
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | General Purpose Enclosure | |
| Body Material | Plastic | |
| External Height | 20mm | |
| Ventilated | Yes | |
| External Width | 60mm | |
| External Length | 60mm | |
| IP Rating | IP30 | |
| Colour | Black, Grey, White | |
| Lid Colour | White | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Mounting plate | Yes | |
| Internal Mount Type | PCB | |
| Series | 1551SNAP | |
| Number of Knockouts | 1 | |
| Standards/Approvals | UL94-HB rating | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type General Purpose Enclosure | ||
Body Material Plastic | ||
External Height 20mm | ||
Ventilated Yes | ||
External Width 60mm | ||
External Length 60mm | ||
IP Rating IP30 | ||
Colour Black, Grey, White | ||
Lid Colour White | ||
Flanged No | ||
Hazardous Area Certification No | ||
Mounting plate Yes | ||
Internal Mount Type PCB | ||
Series 1551SNAP | ||
Number of Knockouts 1 | ||
Standards/Approvals UL94-HB rating | ||
- COO (Country of Origin):
- CA

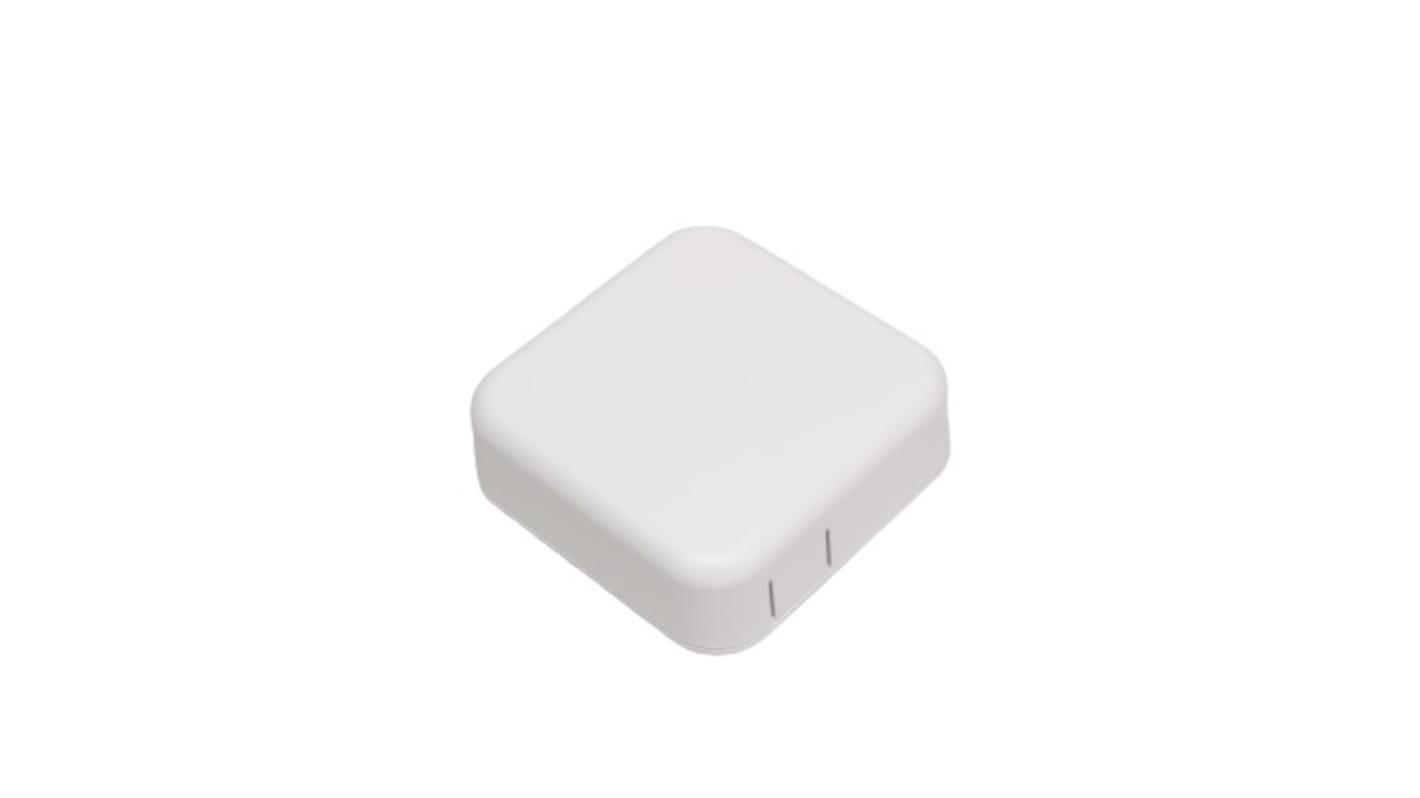

The Hammond 1551S series is the unvented square and rectangle enclosures ideally suited for mounting of printed circuit boards. Its simple snap-fit assembly and wall-mounting features designed for IoT or general purpose applications. The material used for the enclosure is the molded in ABS plastic.
Satin texture finish
Designed to meet IP30
Slots on the base of the enclosure allow for easy wall mounting
