Hammond 1455N2202 Series Clear Anodised Extruded Aluminium Enclosure, IP54 53 mm, 220 mm, 103 mm

RS Stock No.:: 225-6348
Mfr. Part No.:: 1455N2202
Brand:: Hammond

Hammond 1455N2202 Series Clear Anodised Extruded Aluminium Enclosure, IP54 53 mm, 220 mm, 103 mm

Subtotal (1 unit)*

£22.97

(exc. VAT)

£27.56

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£22.97

*price indicative

RS Stock No.:: 225-6348
Mfr. Part No.:: 1455N2202
Brand:: Hammond

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Hammond
	Product Type	Enclosure
	Body Material	Extruded Aluminium
	External Height	53mm
	External Length	220mm
	External Width	103mm
	IP Rating	IP54
	Colour	Clear Anodised
	Lid Colour	Black
	Flanged	No
	Hazardous Area Certification	NO
	Shielding	Unshielded
	Series	1455N2202
	Weight	450g
	Standards/Approvals	RoHS
	Transparent Door	No
	Gasket Material	ABS
	Explosion Proof	No

	Select all
	Brand Hammond
	Product Type Enclosure
	Body Material Extruded Aluminium
	External Height 53mm
	External Length 220mm
	External Width 103mm
	IP Rating IP54
	Colour Clear Anodised
	Lid Colour Black
	Flanged No
	Hazardous Area Certification NO
	Shielding Unshielded
	Series 1455N2202
	Weight 450g
	Standards/Approvals RoHS
	Transparent Door No
	Gasket Material ABS
	Explosion Proof No

COO (Country of Origin):: CA

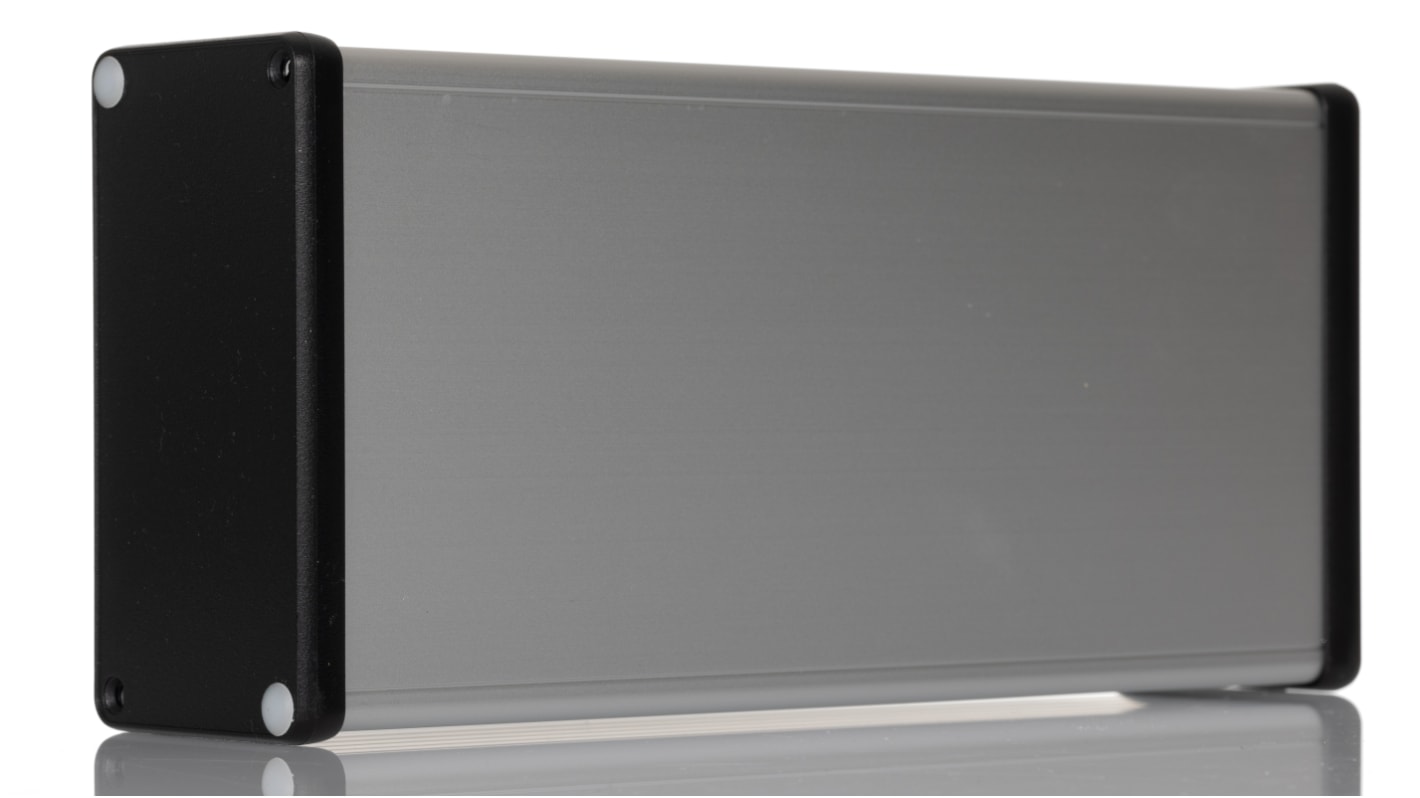

Hammond Series 1455 Enclosure, Extruded Aluminium Body, IP54 - 1455N2202

This enclosure from Hammond is designed to provide a high-quality solution for a range of applications. With dimensions of 220 x 103 x 53mm, this IP54 rated enclosure offers optimum protection and durability. The extruded aluminium body ensures reliability and longevity, making it ideal for various industrial uses.

Features & Benefits

• Crafted with extruded aluminium for strength and durability

• IP54 rated for protection against dust and water ingress

• Compact dimensions of 220 x 103 x 53mm for versatile installation options

• Can be factory modified for specific requirements

• Solid models available in various formats for easy integration

• Includes plastic bezels, #6 Taptight screws, and rubber feet for convenient assembly

Applications

• Ideal for use in electronic and electrical installations

• Suitable for automation systems requiring reliable enclosures

• Essential for protecting sensitive components in harsh environments

• Used in mechanical applications for secure housing solutions

Can it be modified for specific requirements?

Yes, this enclosure can be factory modified to meet individual specifications.

Will it provide adequate protection against dust and water?

Yes, the IP54 rating ensures reliable protection in challenging environments.

Is it suitable for automation systems?

Yes, it is ideal for use in automation setups requiring secure housing solutions.

Can it be easily assembled?

With included plastic bezels, screws, and rubber feet, assembly is quick and convenient.

How versatile is this enclosure?

Its compact dimensions and solid construction make it suitable for a wide range of applications.
