Bopla Bocube Alu Series Light Grey Aluminium General Purpose Enclosure, IP66, IP68, IP69, IK09, Light Grey Lid, 121 x
- RS Stock No.:
- 220-9407
- Mfr. Part No.:
- 00162125
- Brand:
- Bopla
Available to back order for despatch 28/06/2024
Added
Price Each
£28.61
(exc. VAT)
£34.33
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £28.61 |
| 15 - 24 | £27.19 |
| 25 + | £25.76 |
- RS Stock No.:
- 220-9407
- Mfr. Part No.:
- 00162125
- Brand:
- Bopla
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

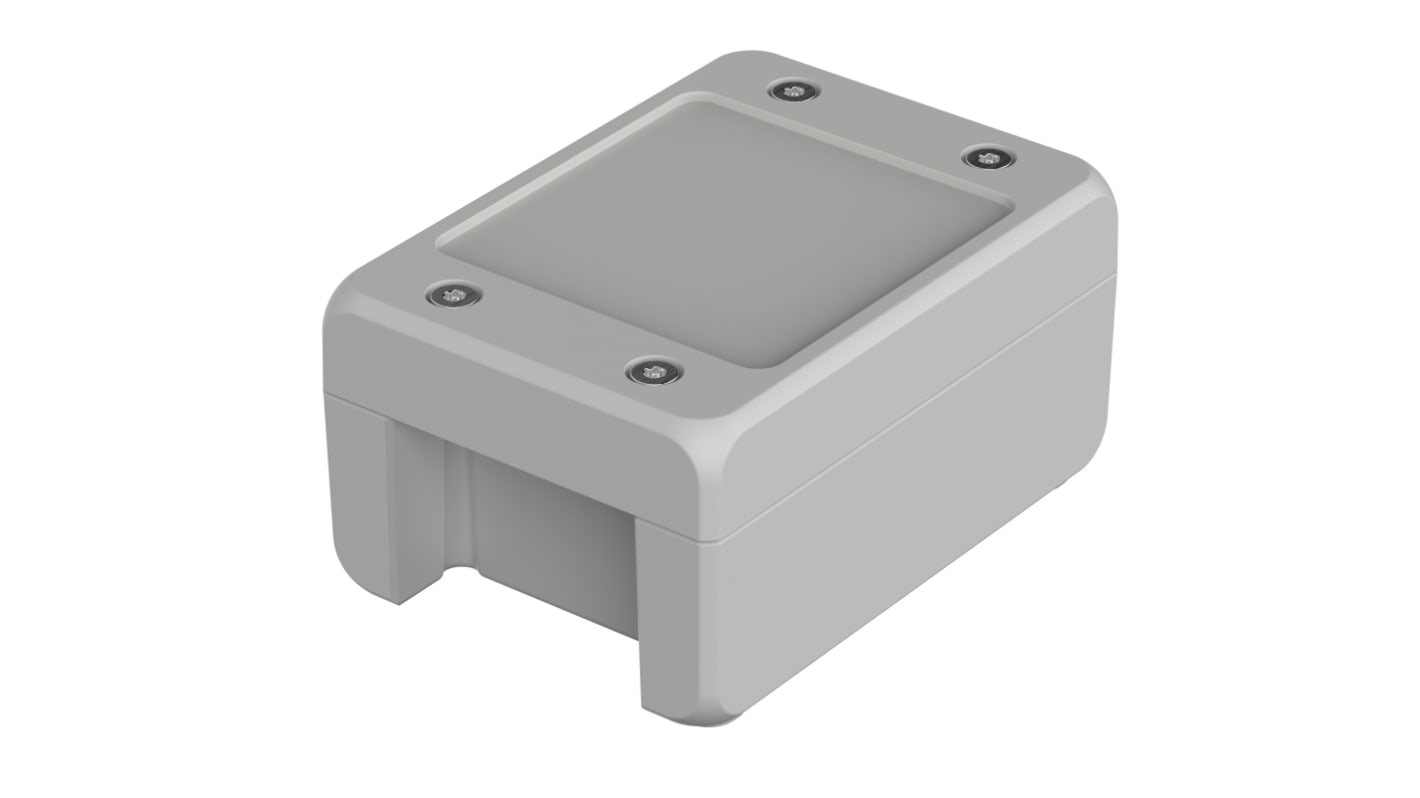

The Bopla Bocube Alu series Enclosure with membrane lid has light grey colour. The Enclosure is made of GD Al Si 12 and has PU foamed seal.
BA-S enclosure variant with screwed-on cover (both sides) and
recessed area for membrane keypads
Protection class is IP 66, 68
recessed area for membrane keypads
Protection class is IP 66, 68
Specifications
Attribute | Value |
|---|---|
| Body Material | Aluminium |
| External Length | 121 mm |
| External Height | 60 mm |
| External Width | 86 mm |
| External Dimensions | 121 x 86 x 60mm |
| Range | Bocube Alu |
| IP Rating | IP66, IP68, IP69 |
| Colour | Light Grey |
| Lid Colour | Light Grey |
| Flanged | No |
| Shielded | Yes |
| Series | Bocube Alu |
| IK Rating | IK09 |
| RAL Code | RAL 7035 |
| Gasket Material | Foamed Polyurethane |
