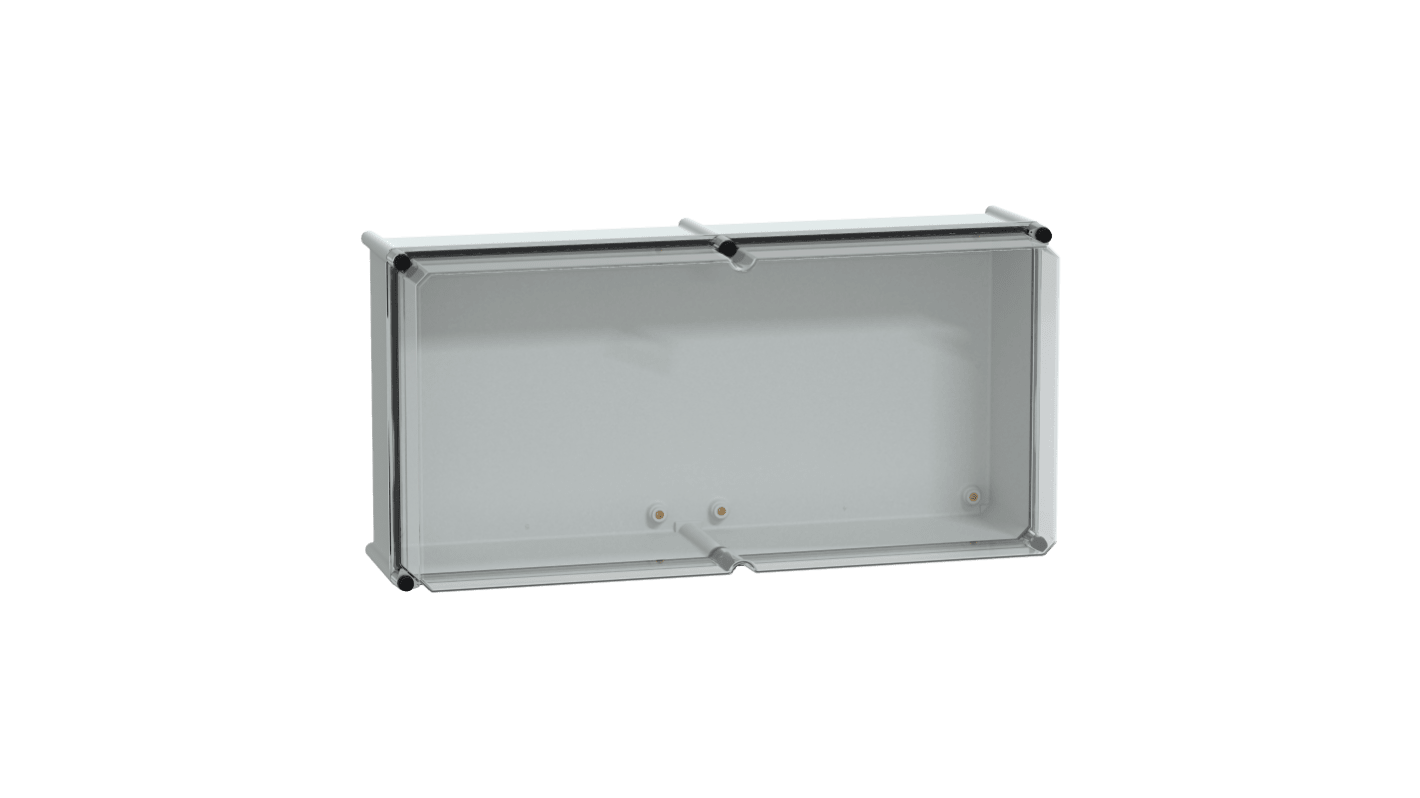

Schneider Electric PanelSeT Series Grey RAL 7035 Transparent Lid Glass Reinforced Polyester Enclosure, IP66, IK09, 360
- RS Stock No.:
- 219-8660
- Mfr. Part No.:
- NSYPLS3672AG
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£224.29
(exc. VAT)
£269.15
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £224.29 |
*price indicative
- RS Stock No.:
- 219-8660
- Mfr. Part No.:
- NSYPLS3672AG
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Body Material | Glass Reinforced Polyester | |
| Product Type | Enclosure | |
| External Height | 360mm | |
| External Width | 720mm | |
| External Length | 230mm | |
| IP Rating | IP66 | |
| Lid Colour | Transparent | |
| Colour | Grey RAL 7035 | |
| Hazardous Area Certification | No | |
| Series | PanelSeT | |
| Internal Mount Type | Wall | |
| Weight | 5.6kg | |
| Standards/Approvals | IEC 62208, NEMA 4X, UL, NEMA Classification 13 | |
| Transparent Door | Yes | |
| IK Rating | IK09 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Body Material Glass Reinforced Polyester | ||
Product Type Enclosure | ||
External Height 360mm | ||
External Width 720mm | ||
External Length 230mm | ||
IP Rating IP66 | ||
Lid Colour Transparent | ||
Colour Grey RAL 7035 | ||
Hazardous Area Certification No | ||
Series PanelSeT | ||
Internal Mount Type Wall | ||
Weight 5.6kg | ||
Standards/Approvals IEC 62208, NEMA 4X, UL, NEMA Classification 13 | ||
Transparent Door Yes | ||
IK Rating IK09 | ||
- COO (Country of Origin):
- ES
The Schneider Electric NSYPLS3672AG is a PLS box, polyester rear, transparent PC cover. It has an IP rating of IP66 .Has an dimension of 36x72x23cm
It has 18 months warranty
It is mercury free
REACh free of SVHC
