Hammond 1551 Series Translucent Blue ABS Enclosure, IP54, Flanged, Translucent Blue Lid, 50 x 35 x 15mm
- RS Stock No.:
- 197-4450
- Mfr. Part No.:
- 1551FTBU
- Brand:
- Hammond
Subtotal (1 unit)*
£1.73
(exc. VAT)
£2.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 29 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1.73 |
*price indicative
- RS Stock No.:
- 197-4450
- Mfr. Part No.:
- 1551FTBU
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hammond | |
Body Material | ABS | |
External Length | 50 mm | |
External Height | 15 mm | |
External Width | 35 mm | |
External Dimensions | 50 x 35 x 15mm | |
IP Rating | IP54 | |
Range | 1551 | |
Colour | Translucent Blue | |
Lid Colour | Translucent Blue | |
Flanged | Yes | |
Shielded | No | |
Series | 1551 | |
Weight | 15g | |
Transparent Door | No | |
RAL Code | RAL 5002 | |
Explosion Proof | No | |
Select all | ||
---|---|---|
Brand Hammond | ||
Body Material ABS | ||
External Length 50 mm | ||
External Height 15 mm | ||
External Width 35 mm | ||
External Dimensions 50 x 35 x 15mm | ||
IP Rating IP54 | ||
Range 1551 | ||
Colour Translucent Blue | ||
Lid Colour Translucent Blue | ||
Flanged Yes | ||
Shielded No | ||
Series 1551 | ||
Weight 15g | ||
Transparent Door No | ||
RAL Code RAL 5002 | ||
Explosion Proof No | ||
- COO (Country of Origin):
- US

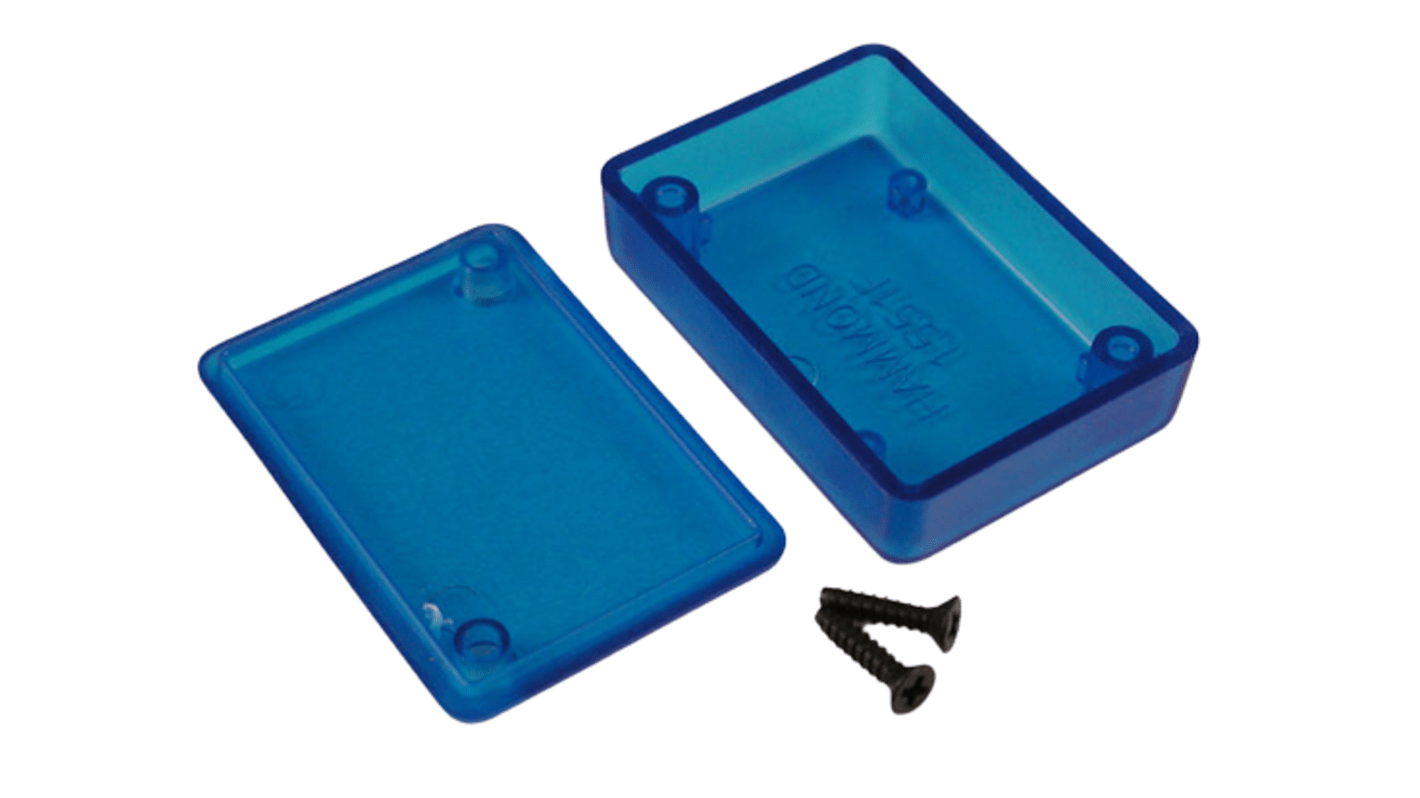

Hammond Enclosure, 50 (L) x 35 (W) x 15mm (H), Satin Finish, With Self-Tapping Screws - 1551 Series - 1551FTBU
If your circuitry needs some cover, slip it into this enclosure from Hammond. The unit's specifically designed to protect PCBs against airborne contaminants and damage, so helps extend the service life of your kit. Two internal standoffs allow for safe and convenient circuit board mounting. The lap-joint lid is secured with two screws to ensure a gap-free fit. Thanks to its ABS construction, you can rely on this enclosure to shrug off wear and impacts in harsh industrial settings. As this material is also corrosion-resistant, it's compatible with humid locations. This versatile product doubles up as a potting box to safeguard small electronic components.
Features & Benefits
• Translucent, so you can carry out quick visual inspections without removing the lid
• IP54-rated, meaning it's protected against dust and water sprays from any direction
• Satin texture finish is snag free and looks appealing
• Flame-retardant to reduce the risk of fires spreading
• IP54-rated, meaning it's protected against dust and water sprays from any direction
• Satin texture finish is snag free and looks appealing
• Flame-retardant to reduce the risk of fires spreading
Applications
• Aerospace technology
• Electrical engineering
• Automotive industry
• Power generation plants
• Electrical engineering
• Automotive industry
• Power generation plants
Do I get screws with this enclosure?
Yes, you get two self-tapping screws with this box, so there's no need to buy lid fasteners.
