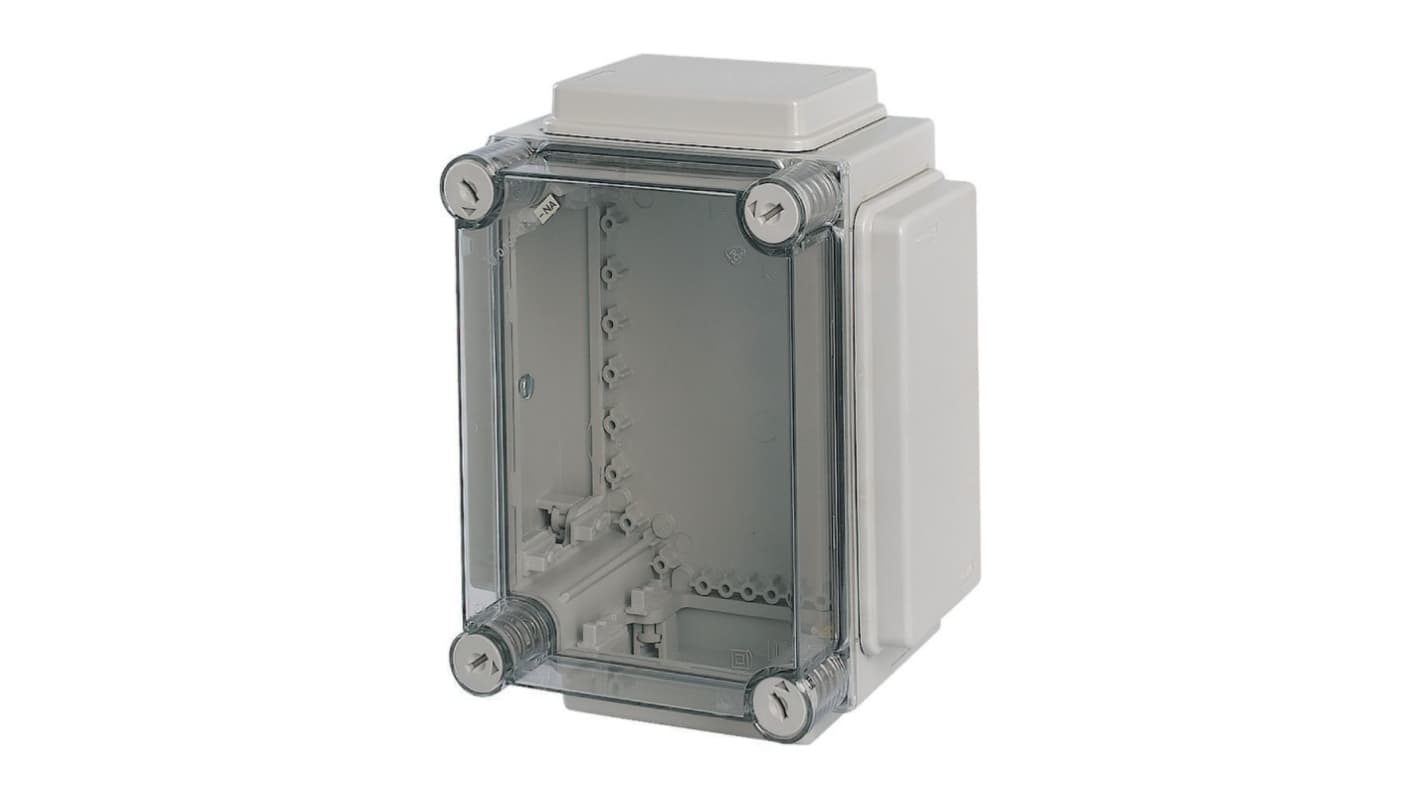

Eaton xEnergy Safety Series Grey Plastic General Purpose Enclosure, IP65, IK10 Flanged 296 mm, 175 mm, 234 mm
- RS Stock No.:
- 248-241
- Mfr. Part No.:
- 002237 CI23-150-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£202.16
(exc. VAT)
£242.59
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £202.16 |
*price indicative
- RS Stock No.:
- 248-241
- Mfr. Part No.:
- 002237 CI23-150-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | General Purpose Enclosure | |
| Body Material | Plastic | |
| External Height | 296mm | |
| External Length | 175mm | |
| External Width | 234mm | |
| IP Rating | IP65 | |
| Colour | Grey | |
| Lid Colour | Transparent | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Series | xEnergy Safety | |
| Weight | 2.029kg | |
| Standards/Approvals | CE, IEC/EN62208, RoHS, UL 508A CSA-C22.2 No.94 | |
| IK Rating | IK10 | |
| Transparent Door | Yes | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type General Purpose Enclosure | ||
Body Material Plastic | ||
External Height 296mm | ||
External Length 175mm | ||
External Width 234mm | ||
IP Rating IP65 | ||
Colour Grey | ||
Lid Colour Transparent | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Series xEnergy Safety | ||
Weight 2.029kg | ||
Standards/Approvals CE, IEC/EN62208, RoHS, UL 508A CSA-C22.2 No.94 | ||
IK Rating IK10 | ||
Transparent Door Yes | ||
RoHS Status: Exempt
The Eaton xEffect Ci Enclosures Switch- & Controlgear Enclosure is engineered to meet the demanding requirements of North American industrial environments. With a robust construction featuring insulated enclosures and removable flanges, this model is designed for optimal flexibility and ease of installation. Measuring 296mm in height, 234mm in width, and 175mm in depth, this enclosure provides ample space for housing vital control equipment while ensuring superior protection against environmental factors. Its UV resistance and IP65 rating make it particularly suitable for outdoor use, safeguarding against moisture, dirt, and other contaminants. The modular design further enhances its versatility, accommodating a range of components while providing seamless integration into existing systems.
Constructed with high-quality plastic materials for durability
Designed for easy wall mounting with secure fixing straps
Sealable cover fasteners ensure added protection against unauthorized access
Removable smooth flanges allow for customised installation options
UV resistant cover ensures long-lasting external use
IP65 rated for superior protection against dust and water ingress
Complies with international standards for safety and performance
Specially designed for efficient heat dissipation within the enclosure
Enclosure can withstand a wide range of operating temperatures
