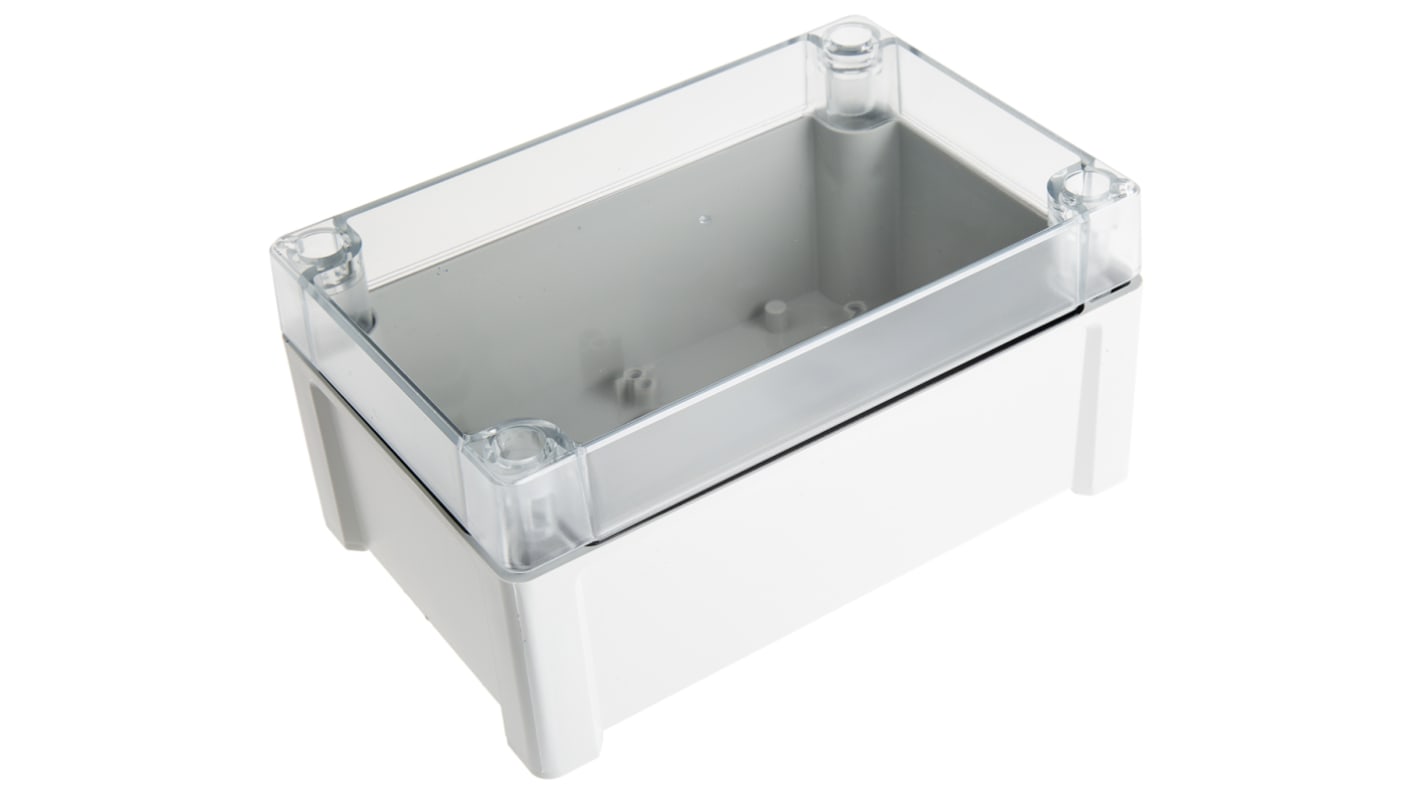

Fibox TEMPO Wall Box, IP65, 187.2 x 122.2 x 89.9mm

  • RS Stock No. 104-212
  • Mfr. Part No. TA191209T
  • Brand Fibox
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TEMPO ABS Enclosures - IP 65

The Tempo range of enclosures from Fibox are easy to use, saving time and money in assembly and installation. These boxes have practical dimensions with inner mounting centres which are compatible with other housings on the market. The transparent cover of these enclosures offers lots of spaces for printing and labels. The robust and impact resistant enclosure meets protection rating IP65 and is suited too many industrial applications.

Features and Benefits

The Tempo product range is fully compatible with the PVC enclosures. Designed to reduce assembly costs.
Practical dimensions with inner mounting centres which are compatible with other housings on the market.
Low bases facilitate installation and wiring.
Multiple wall mounting options.
Flat cover offers space for printing, labels and push buttons.
Tempo enclosures are supplied with quick-to-install hinges.
Hinges allow all cover screws to be used for optimal sealing (IP).
IP 65 protection index (EN 60529).
IK 07 Shockproof (EN 62262).
Operating temperature (continuous): -40 40° → +60 60°C
Non-toxic and halogen-free.

Typical Applications

Cable/Wire Management Traffic Control IT/Server
Solar Power Batteries
Food and Beverage Industry
Telecommunication Industry

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's

Can the enclosure be used outside?

Being IP65 rated this enclosure is fully waterproof/weatherproof.

What is Supplied?

Lid screws as standard for the mounting plate or DIN Rail

Standards

EN 62208: 2003 550298: 1998

Specifications
Attribute Value
Body Material ABS
External Dimensions 187.2 x 122.2 x 89.9mm
External Length 187.2 mm
External Width 122.2 mm
External Height 89.9 mm
IP Rating IP65
Colour Grey, Transparent
Lid Colour Transparent
Series TEMPO
Shielded No
228 In stock for FREE next working day delivery
Price Each
£ 8.24
(exc. VAT)
£ 9.89
(inc. VAT)
Units
Per unit
1 - 9
£8.24
10 - 14
£7.82
15 +
£7.57
