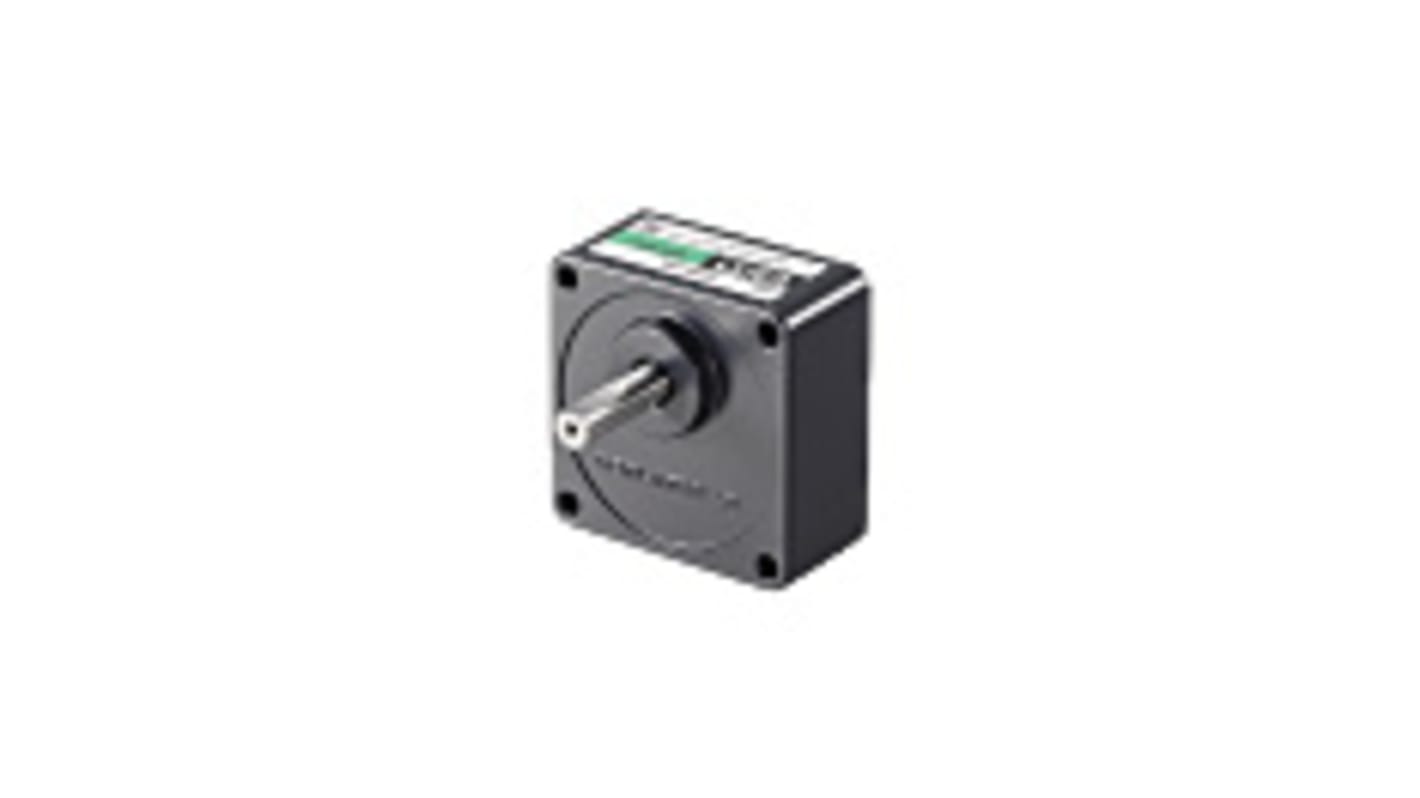

Oriental Motor Gearbox, 50:1 Gear Ratio, 1.4 Nm Maximum Torque, 36rpm Maximum Speed
- RS Stock No.:
- 282-1963
- Mfr. Part No.:
- 2GN50S
- Brand:
- Oriental Motor
Subtotal (1 unit)*
£126.41
(exc. VAT)
£151.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.41 |
*price indicative
- RS Stock No.:
- 282-1963
- Mfr. Part No.:
- 2GN50S
- Brand:
- Oriental Motor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Oriental Motor | |
| Gear Ratio | 50:1 | |
| Product Type | Gearbox | |
| Maximum Output Torque | 1.4Nm | |
| Diameter | 60 mm | |
| Shaft Diameter | 8mm | |
| Overall Width | 60mm | |
| Maximum Speed | 36rpm | |
| Power Rating | 6W | |
| Series | 2GN | |
| Standards/Approvals | UL,CSA,CCC,EN,CE,RoHS-compliant | |
| Efficiency | 66% | |
| Select all | ||
|---|---|---|
Brand Oriental Motor | ||
Gear Ratio 50:1 | ||
Product Type Gearbox | ||
Maximum Output Torque 1.4Nm | ||
Diameter 60 mm | ||
Shaft Diameter 8mm | ||
Overall Width 60mm | ||
Maximum Speed 36rpm | ||
Power Rating 6W | ||
Series 2GN | ||
Standards/Approvals UL,CSA,CCC,EN,CE,RoHS-compliant | ||
Efficiency 66% | ||
- COO (Country of Origin):
- JP
Oriental Motor world K series.
Spur gearbox rated to 10,000 hours.
Suitable for use with Oriental Motor products as below.
282-1971 (230V 1ph 6W motor)
282-1973 (230V 3ph 6W motor)
