Sferaco Gate Valve 102010 2-1/2 in
- RS Stock No.:
- 648-683
- Mfr. Part No.:
- 102010
- Brand:
- Sferaco
Subtotal (1 unit)*
£58.63
(exc. VAT)
£70.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £58.63 |
*price indicative
- RS Stock No.:
- 648-683
- Mfr. Part No.:
- 102010
- Brand:
- Sferaco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sferaco | |
| Product Type | Gate Valve | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Port Size | 2-1/2 in | |
| Body Material | Brass | |
| Handle Height from Centre | 175mm | |
| Standards/Approvals | directive 2014/68/EU, ISO 9001 : 2015 | |
| Select all | ||
|---|---|---|
Brand Sferaco | ||
Product Type Gate Valve | ||
Maximum Operating Pressure 16 bar | ||
Inlet Port Size 2-1/2 in | ||
Body Material Brass | ||
Handle Height from Centre 175mm | ||
Standards/Approvals directive 2014/68/EU, ISO 9001 : 2015 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

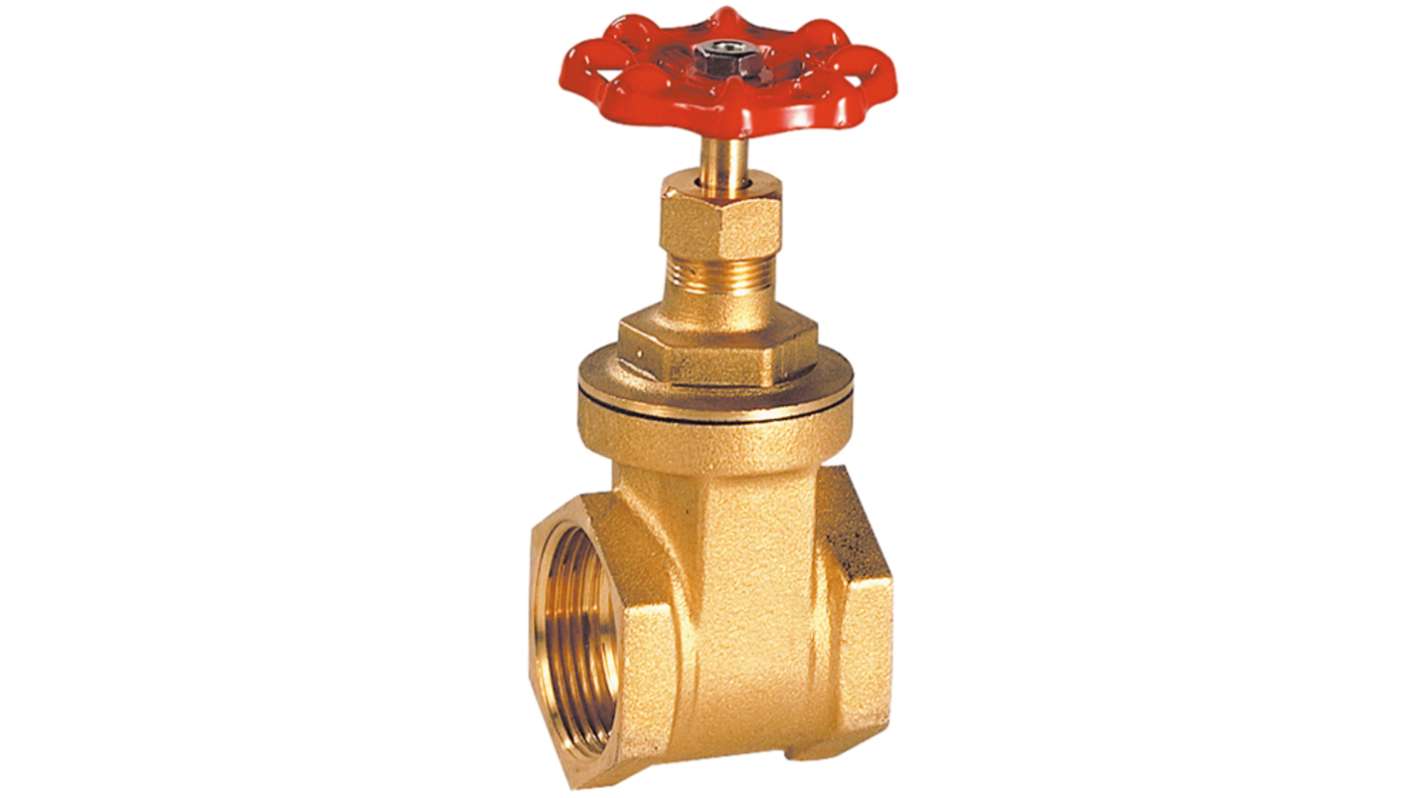

The Sferaco Brass gate valve female BSP PN16 features a full bore design with female threaded BSP connection, suitable for closing water distribution and watering installations. It includes a rotating non rising stem with an inside screw, EPDM packing on the stem, and a fiber bonnet gasket for reliable sealing and long-term performance.
Full bore
Rotating non rising stem
Inside screw stem
Brass
Single wedge disc
