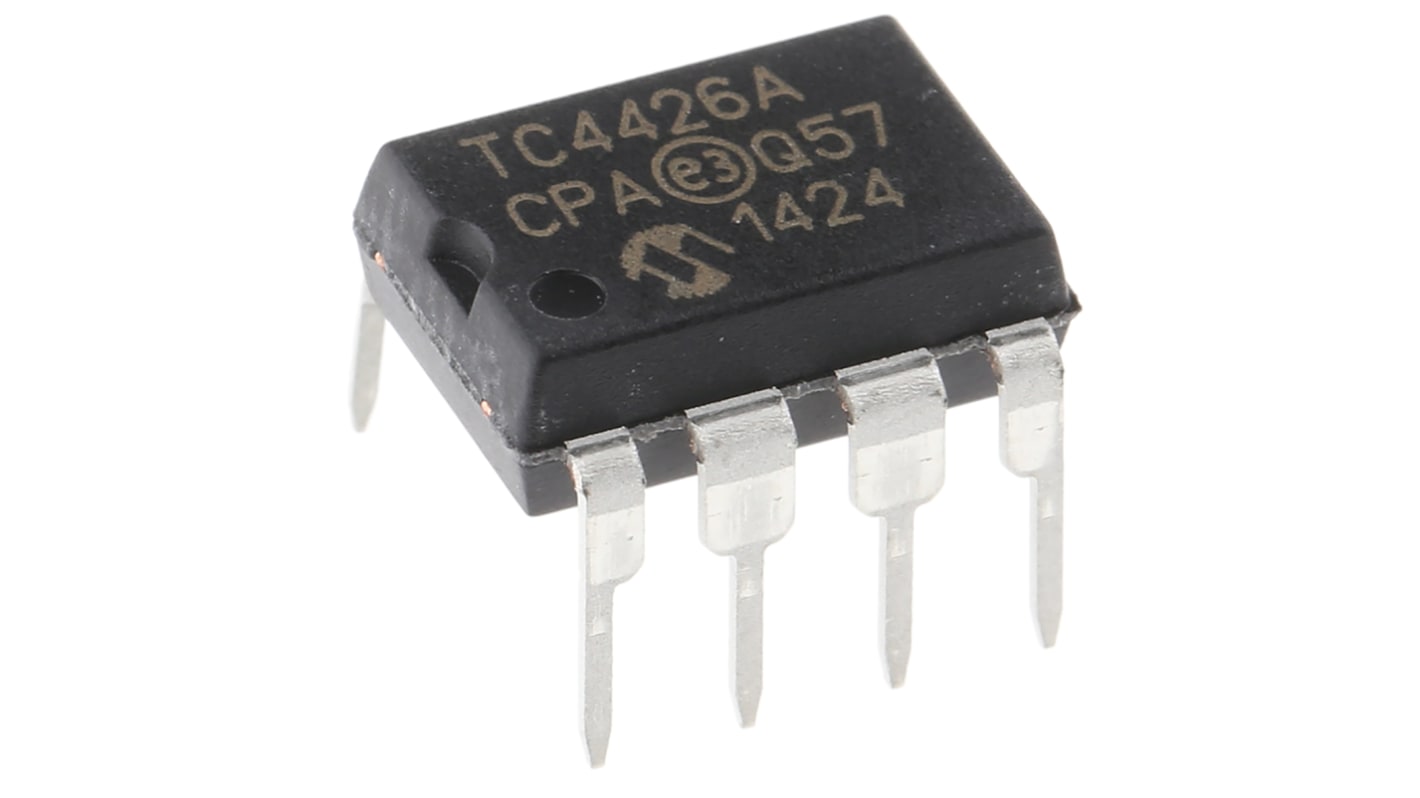

Microchip TC4426ACPA MOSFET Gate Driver 2, 1.5 A 8-Pin 22 V, PDIP
- RS Stock No.:
- 681-1130
- Distrelec Article No.:
- 304-43-461
- Mfr. Part No.:
- TC4426ACPA
- Brand:
- Microchip
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£2.35
(exc. VAT)
£2.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 26 unit(s) shipping from 01 June 2026
- Plus 586 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £1.175 | £2.35 |
| 10 - 22 | £1.01 | £2.02 |
| 24 - 98 | £0.93 | £1.86 |
| 100 + | £0.86 | £1.72 |
*price indicative
- RS Stock No.:
- 681-1130
- Distrelec Article No.:
- 304-43-461
- Mfr. Part No.:
- TC4426ACPA
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | MOSFET | |
| Output Current | 1.5A | |
| Pin Count | 8 | |
| Package Type | PDIP | |
| Fall Time | 30ns | |
| Driver Type | MOSFET | |
| Rise Time | 30ns | |
| Minimum Supply Voltage | 18V | |
| Number of Drivers | 2 | |
| Maximum Supply Voltage | 22V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | No | |
| Series | TC4426A | |
| Height | 4.06mm | |
| Length | 10.16mm | |
| Mount Type | Through Hole | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type MOSFET | ||
Output Current 1.5A | ||
Pin Count 8 | ||
Package Type PDIP | ||
Fall Time 30ns | ||
Driver Type MOSFET | ||
Rise Time 30ns | ||
Minimum Supply Voltage 18V | ||
Number of Drivers 2 | ||
Maximum Supply Voltage 22V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals No | ||
Series TC4426A | ||
Height 4.06mm | ||
Length 10.16mm | ||
Mount Type Through Hole | ||
Automotive Standard No | ||
TC4426A/4427A/4428A MOSFET Drivers
MOSFET & IGBT Drivers, Microchip
