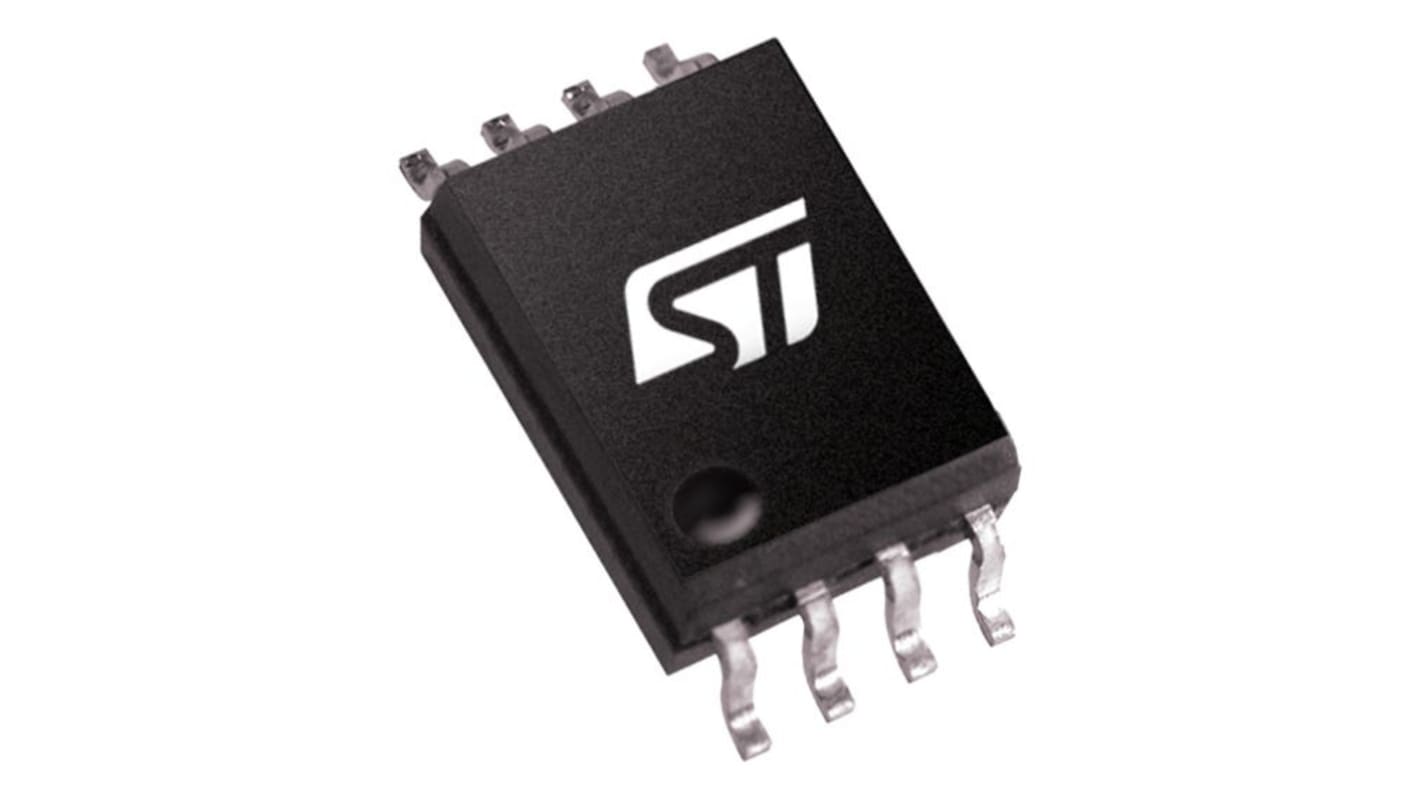

STMicroelectronics STGAP2GSNCTR 1, 3 A, 5.5V 8-Pin, SO-8

View all Gate Drivers
Bulk discount available

Subtotal (1 pack of 2 units)*

£7.05

(exc. VAT)

£8.46

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 84 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 48£3.525£7.05
50 - 98£2.995£5.99
100 - 248£2.53£5.06
250 - 998£2.39£4.78
1000 +£2.06£4.12

*price indicative

Packaging Options:
RS Stock No.:
275-1342
Mfr. Part No.:
STGAP2GSNCTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Logic Type

CMOS, TTL

Output Current

3 A

Supply Voltage

5.5V

Pin Count

8

Package Type

SO-8

Fall Time

30ns

Number of Drivers

1

COO (Country of Origin):
TW
The STMicroelectronics single gate driver provides isolation between the gate driving channel and the low voltage control and interface circuitry. The gate driver is characterized by 2 A source and 3 A sink capability and rail to rail outputs, making the device also suitable for mid and high power applications such as power conversion and motor driver inverters in industrial applications. The device allows to independently optimize turn on and turn off by using dedicated gate resistors.

High voltage rail up to 1700 V
Separate sink and source option for easy gate driving configuration
Temperature shut down protection
Standby function
Narrow body SO 8 package
