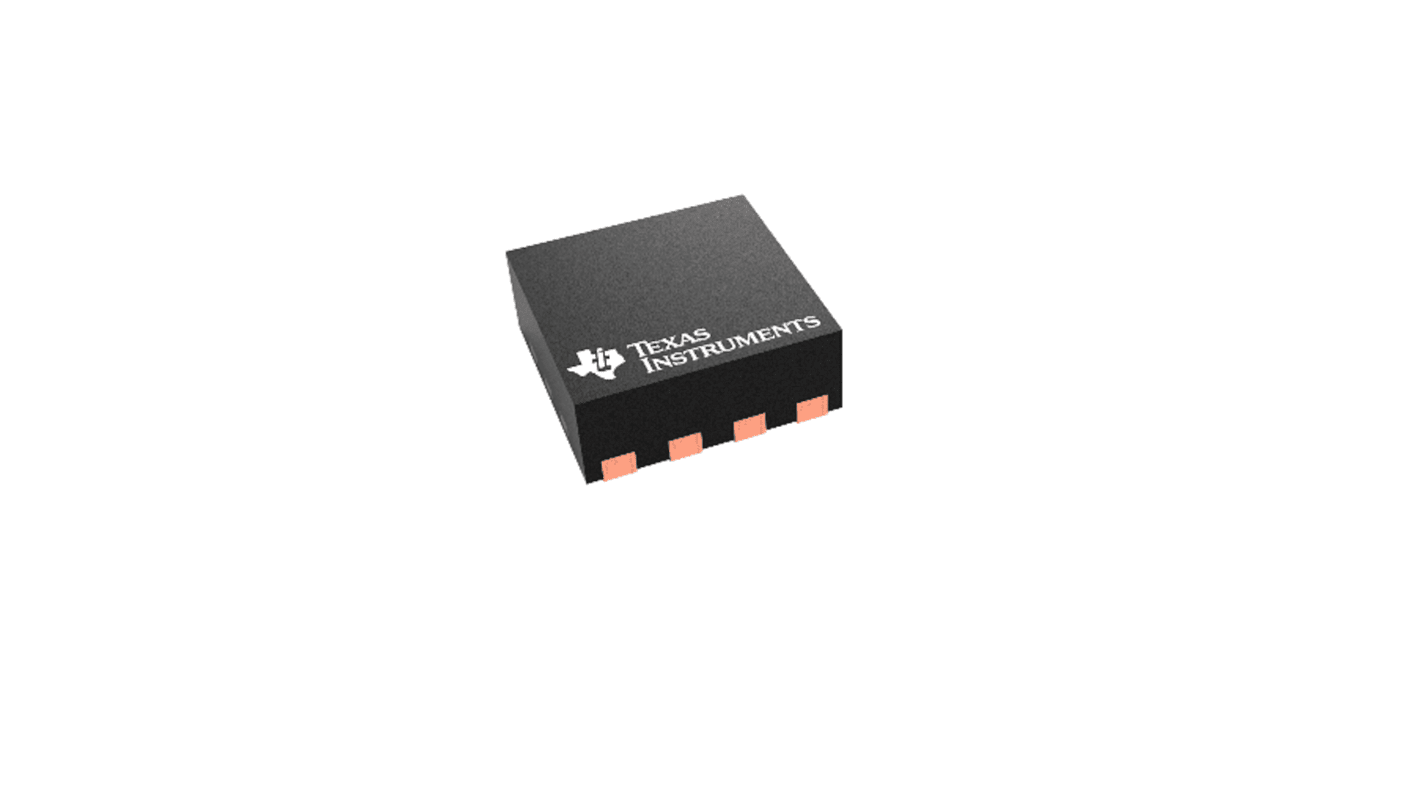

Texas Instruments DRV8837CDSGT 1, 1 A, 0 → 11V 8-Pin, WSON

View all Gate Drivers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
268-7480
Mfr. Part No.:
DRV8837CDSGT
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Type

PWM

Output Current

1 A

Supply Voltage

0 → 11V

Pin Count

8

Fall Time

20ns

Package Type

WSON

Number of Drivers

1

The Texas Instruments motor driver provides an integrated motor driver solution for cameras, consumer products, toys and other low voltage or battery powered motion control applications. The device can drive one DC motor or other devices like solenoids. The output driver block consists of N channel power MOSFETs configured as an H bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.

Standard PWM interface
Low power sleep mode with 120 nA maximum sleep current
Small package and footprint
Low MOSFET on state resistance
